Spare parts > Husqvarna Construction Products > SURFACE PREPARATION EQUIPMENT > PG 530 PG 530, Machine 0904-01 and forward, 2010-02 > COVER
Back to

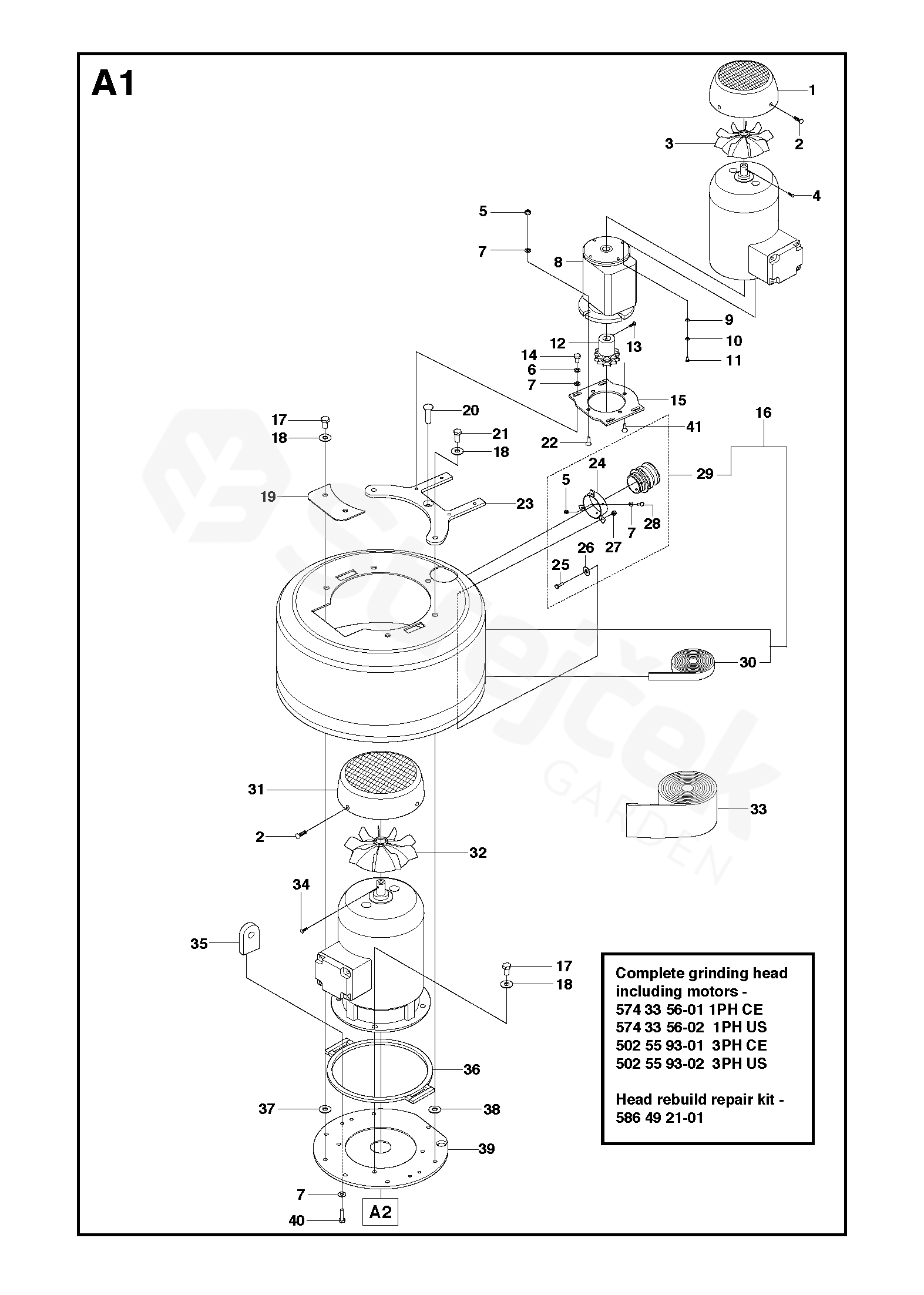

COVER
PG 530 PG 530, Machine 0904-01 and forward, 2010-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PG 530, Machine 0904-01 and forward, 2010-02
1 COVER 522658401
2 SCREW SLCHM 723132051
3 FAN 522658601
4 PEN 522658501
5 HEXAGON LOCKING NUT 732251801
6 PRUŽNÁ PODLOŽKA 735116401
7 PODLOŽKA 734116301
8 GEARBOX 502559601
9 PODLOŽKA 734115201
10 PODLOŽKA 735115301
11 SCREW EHHM 725237271
12 DRIVE SPROCKET 502564001
13 SCREW IHPANM 541405178
14 SCREW EHHFM 725244976
15 PLATE 502561601
16 COVER ASSY 522658901
17 SCREW EHHM 725253471
18 PODLOŽKA 734117801
19 COVER PLATE 504725101
20 SCREW IHCSFM 522658101
21 SCREW EHHM 725253671
22 SCREW IHCSFM 725645551
23 BRACKET 502561501
24 BRACKET 522658701
25 SCREW CRCSFM 724337051
26 PODLOŽKA 504747301
27 HEXAGON LOCKING NUT 732251601
28 SCREW EHHM 725245376
29 ASSEMBLY 522658801
30 COVER 502538501
31 COVER 522659001
32 FAN 522659201
33 RUBBER SKIRT 590499201
34 PEN 522659301
35 LIFTING LUG 504725601
36 SEAL 502568701
37 PODLOŽKA 504726304
38 PODLOŽKA 504729501
39 PLATE 502561301
40 SCREW EHHM 725245576
41 SCREW IHCSFM 725645151
