Spare parts > Husqvarna Construction Products > SURFACE PREPARATION EQUIPMENT > PG 820 PG 820, To machine number 1108-8, 2008-09 > GRINDING HEAD 1
Back to

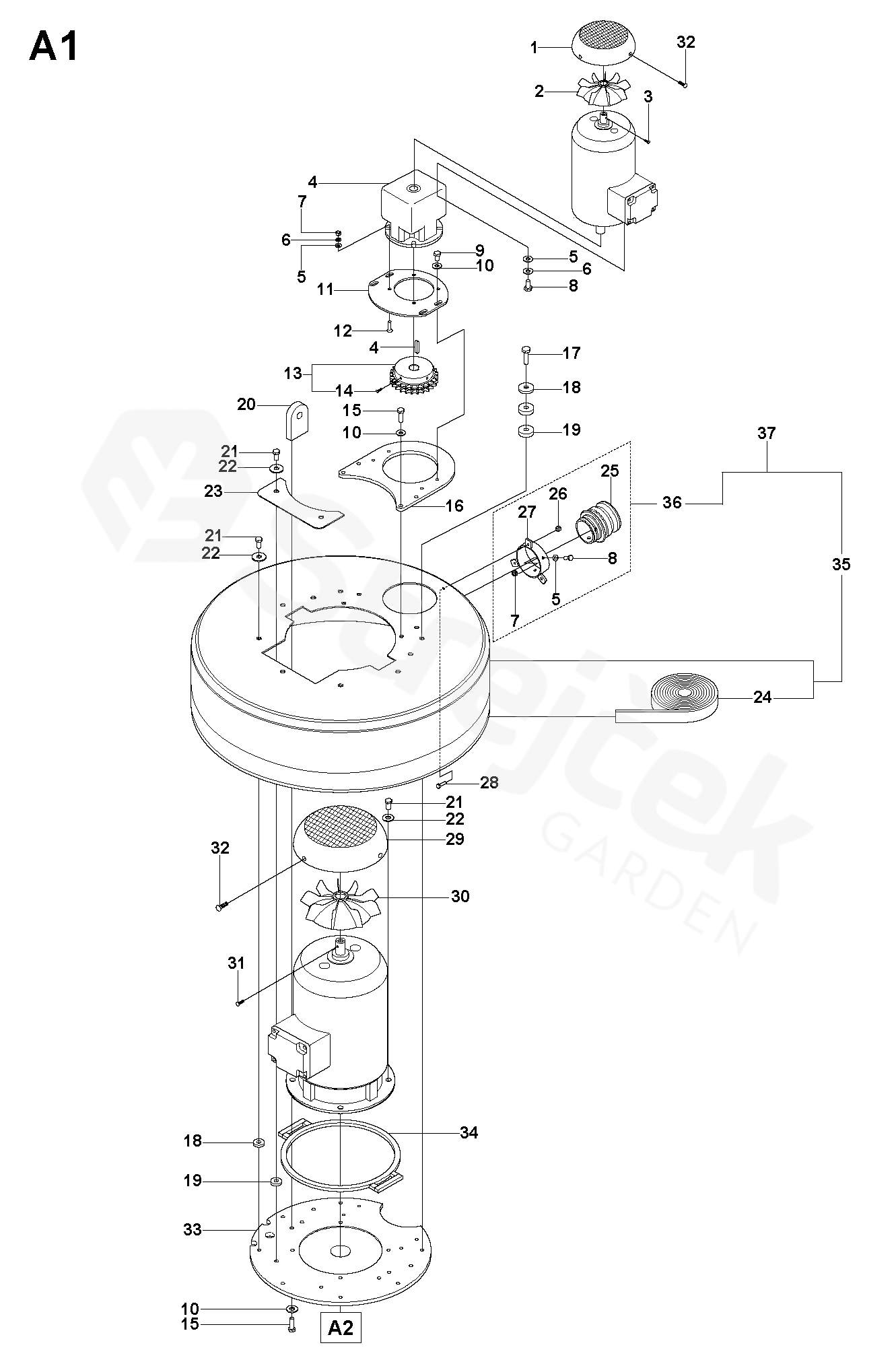

GRINDING HEAD 1
PG 820 PG 820, To machine number 1108-8, 2008-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PG 820, To machine number 1108-8, 2008-09
1 COVER 516056801
2 FAN 516057001
3 PEN 516057101
4 GEARBOX 502535601
5 PODLOŽKA 734116301
6 PRUŽNÁ PODLOŽKA 735116401
7 HEXAGON LOCKING NUT 732251801
8 SCREW EHHM 725245376
9 SCREW EHHM 725248971
10 HEXAGON NUT 734117201
11 DESKA 502538101
12 SCREW IHCSFM 725645501
13 DRIVE SPROCKET 502542401
14 SCREW IHSETM 728545105
15 SCREW EHHM 725249771
16 BRACKET 502538001
17 SCREW EHHM 725254271
18 PODLOŽKA 504726304
19 PODLOŽKA 504726303
20 LIFTING LUG 504729001
21 SCREW EHHM 725253471
22 PODLOŽKA 734117801
23 COVER PLATE 504729301
24 STRIP 504747601
25 COUPLING 504729802
26 SCREW CRCSFM 724337051
27 BRACKET 504729803
28 HEXAGON LOCKING NUT 732251601
29 COVER 516057201
30 FAN 516057301
31 PEN 516057401
32 SCREW 521887101
33 PLATE 502537601
34 SEAL 516057801
35 COVER 502538401
36 PORT 504729801
37 COVER 516057901
