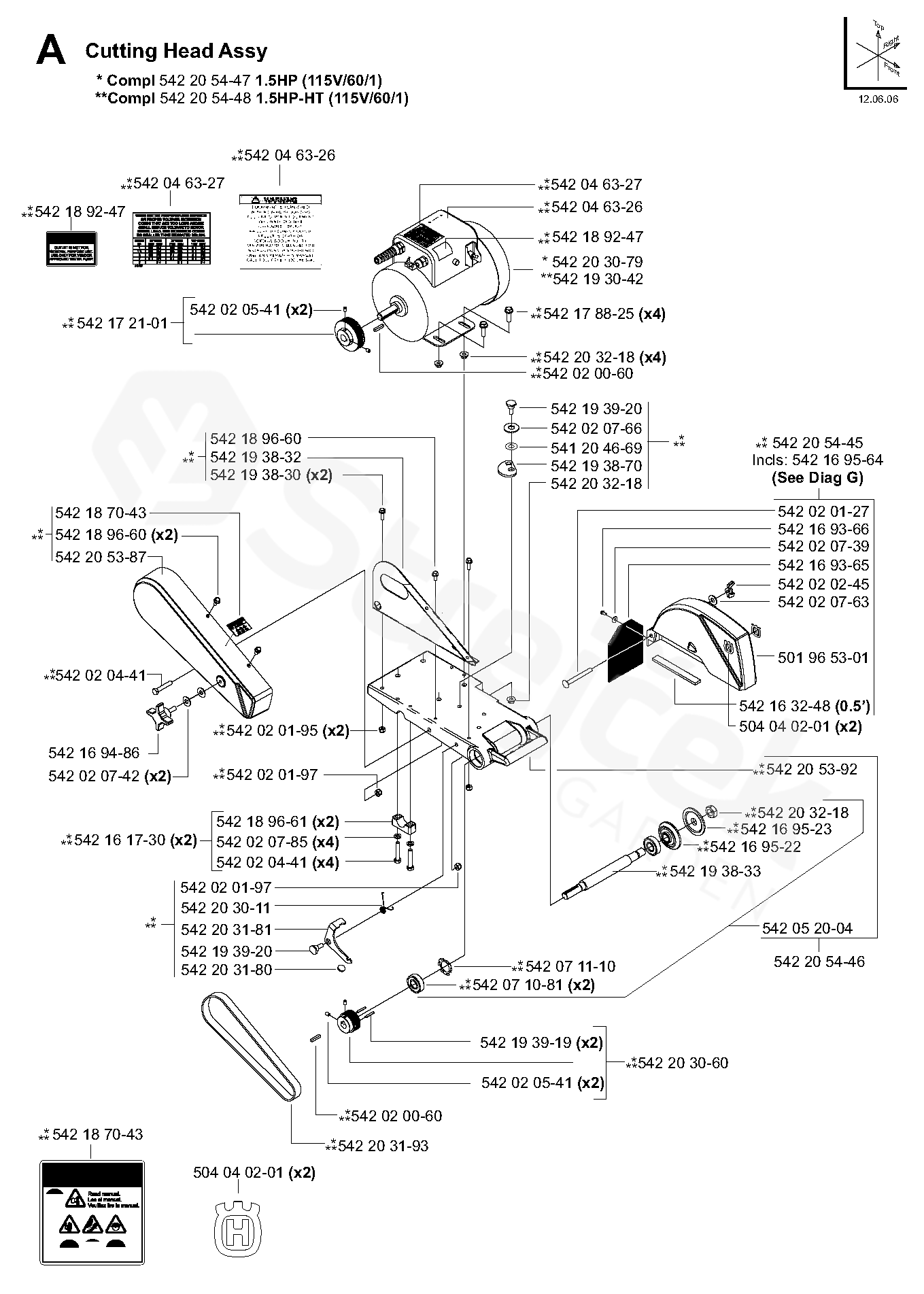

TS250 X TS250 X, 2006-28

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TS250 X, 2006-28

501965301	BLADE GUARD	501965301
504040201	DECAL	504040201
541204669	WASHER	541204669
542020060	KEY/	542020060
542020127	SCREW	542020127
542020195	LOCK NUT	542020195
542020197	FS900T SCREW NUT/	542020197
542020245	NUT	542020245
542020441	TBD	542020441
542020541	KEY	542020541
542020739	WASHER	542020739
542020742	WASHER	542020742
542020763	WASHER	542020763
542020766	WASHER	542020766
542020785	HS350T RINGS/	542020785
542046326	DECAL	542046326
542046327	DECAL	542046327
542052004	AXLE	542052004
542071081	BEARING	542071081
542071110	HS350/352T LOAD SPRING/	542071110
542161730	TBD	542161730
542163248	STRIP	542163248
542169365	SPLASH GUARD	542169365
542169366	TBD	542169366
542169486	KNOB	542169486
542169522	TBD	542169522
542169523	FLANGE, OUTER	542169523
542169564	COLLECTOR	542169564
542172101	PULLEY	542172101
542178825	SCREW	542178825
542187043	DECAL	542187043
542189247	DECAL	542189247
542189660	TBD	542189660
542189661	TBD	542189661
542193830	TBD	542193830
542193832	BELT GUARD	542193832
542193833	TBD	542193833
542193870	CAM	542193870
542193919	PEN	542193919
542193920	BOLT	542193920
542203011	TORSION SPRING	542203011
542203060	PULLEY	542203060
542203180	PAD	542203180
542203181	STOP	542203181
542203193	V-BELT	542203193
542203218	SCREW	542203218
542205387	GUARD	542205387
542205392	HEAD	542205392
542205445	BLADE GUARD	542205445
542205446	BLADE SHAFT	542205446
542205447	HEAD	542205447
542205448	TBD	542205448
**542193042	MOTOR	542193042
*54203079	TBD	542030792
