Spare parts > Husqvarna Construction Products > TILE SAWS > MS510, MS510 G MS510, MS510 G, 2015-10 > BLADE GUARD
Back to

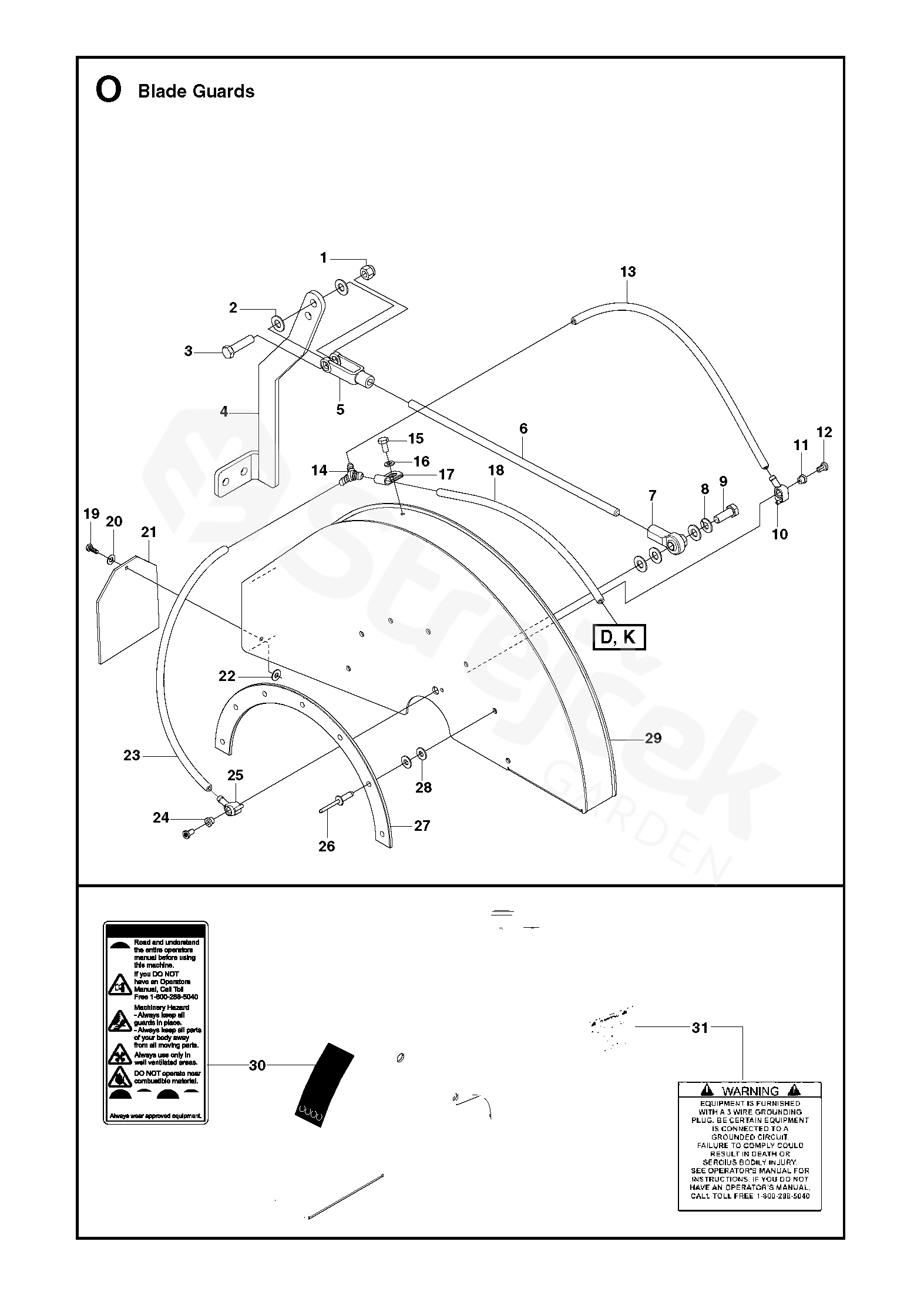

BLADE GUARD
MS510, MS510 G MS510, MS510 G, 2015-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MS510, MS510 G, 2015-10
1 END BRACKET 539976979
2 WASHER 539990122
3 SCREW 542020377
4 BRACKET 510179604
5 YOKE 542060460
6 LINK 510179401
7 ROD END 510179301
8 PODLOŽKA 539990118
9 SCREW 539976941
10 HOUSING 504634501
11 FITTING 510190701
12 SCREW ITXSCM 504634601
13 HOSE 523120304
14 Y-TUBE 506328701
15 HCS ¼-20 X ½ GR 5 ZD 539990071
16 PODLOŽKA 539990052
17 CLAMP 542166672
18 HOSE 522981803
19 SCREW 542186073
20 WASHER 542020739
21 SPLASH GUARD 542169365
22 NUT 505630401
23 HOSE 522981809
24 NIPPLE 504634201
25 HOUSING 504634501
26 RIVET 542020701
27 RING 505407702
28 WASHER 1/4 SAE 539990055
29 GUIDE BAR 510259310
30 DECAL 542177588
31 DECAL 542046128
