Spare parts > Husqvarna > RIDERS > R216 AWD R216 AWD, 967291202, 2018 > MOWER LIFT / DECK LIFT
Back to

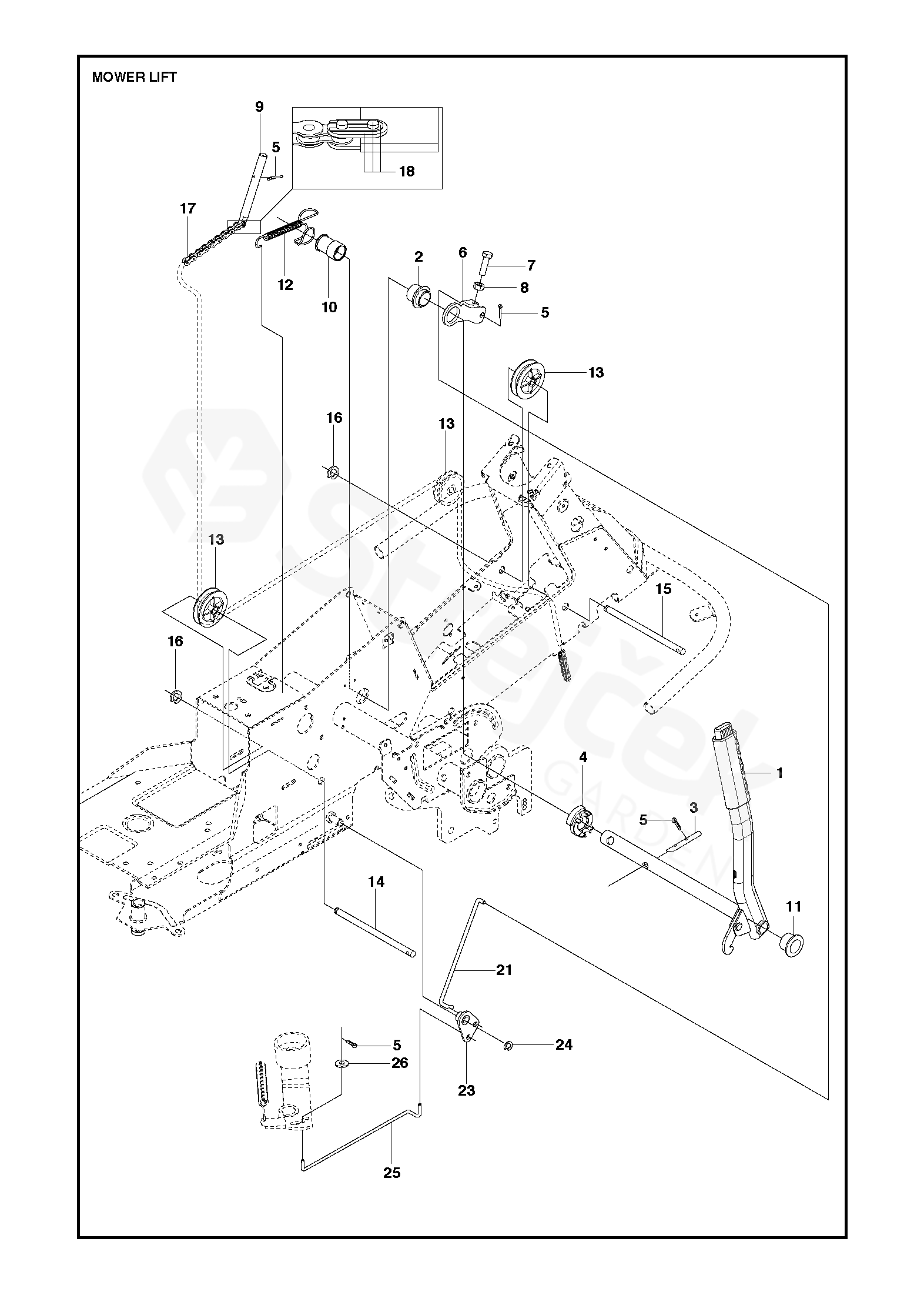

MOWER LIFT / DECK LIFT
R216 AWD R216 AWD, 967291202, 2018
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R216 AWD, 967291202, 2018
1 LIFTING LEVER ASSY 501065301
2 BEARING 588926901
3 PEN 525406601
4 ANVIL 588927101
5 SPLIT PIN 721618301
6 LIFTING ARM 588927001
7 SCREW 725249751
8 HEXAGON NUT 731232001
9 ROD 588927401
10 ANVIL 588927301
11 BEARING 584871301
12 SPRING 588927501
13 OFFSET PULLEY 506905601
14 SHAFT 582871901
15 HRÍDEL 582871902
16 E-CLIP 735311820
17 CHAIN 506554609
18 LINKAGE 506554701
21 CONNECTION ROD 544456901
23 LINK 544378601
24 E-CLIP 735311420
25 CONNECTION ROD 544448801
26 PODLOŽKA 734116441
