YTH18542 YTH18542, 96045005900, 2017-06

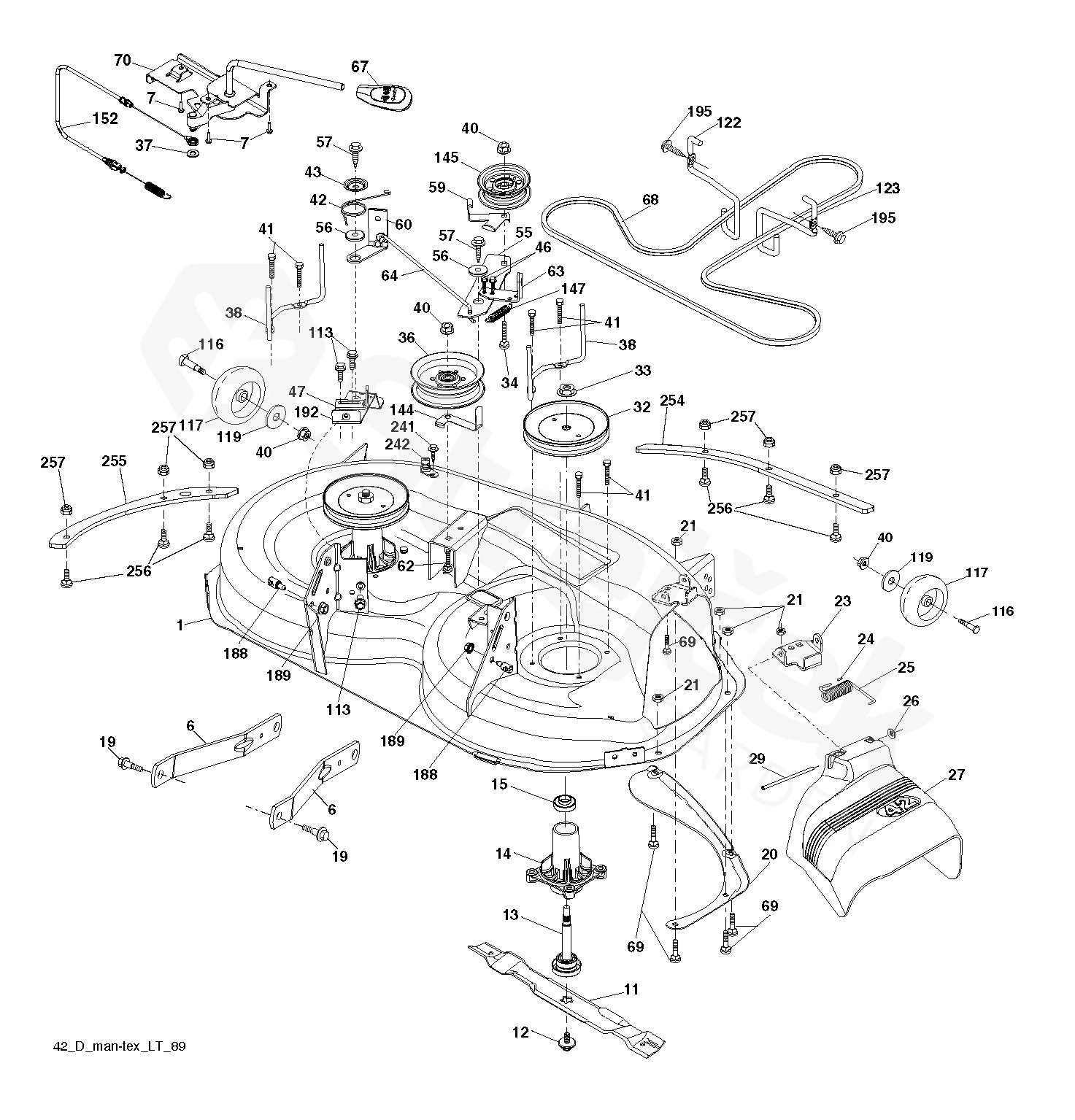

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For YTH18542, 96045005900, 2017-06

1	DECK	532441275
6	ARM	532195186
7	SCREW	532416358
11	BLADE	532138971
12	SCREW	584309301
13	HRÍDEL	587256501
14	BEARING HOUSING	532187281
15	BEARING	532110485
19	BOLT	532196539
20	KOLEJNICE	532159770
21	MATICE	873680500
23	HINGE	532192557
24	HUB CAP	532105304
25	TORSION SPRING	532197026
26	MATICE	532110452
27	KRYT	532403004
29	HRÍDEL	532131491
32	PULLEY	532197473
33	MATICE	532400234
34	BOLT	872110612
36	PULLEY	532197379
37	PODLOŽKA	819131316
38	HLÍDAČ	532432520
40	MATICE	873900600
41	BOLT	584953901
42	PRUŽINA	532198410
43	PRUŽINA	532197256
46	SCREW	532137729
47	BRACKET	532197250
55	ARM	532197249
56	ROZPĚRKA	532199092
57	SCREW	817000616
59	GUARD	532141043
60	ARM	532197261
62	BOLT	872110616
63	ARM	532199477
64	LINK BRAKE	532199918
67	HANDLE	532403012
68	BELT	532429636
69	BOLT	872140505
70	CLUTCH	532406563
113	BOLT	817000510
116	BOLT	532124842
117	KOLO	589527401
119	PODLOŽKA	819121414
122	BELT GUIDE	532197258
123	BELT GUIDE	532197259
144	BELT GUIDE	532199204
145	PULLEY	532193197
147	PRUŽINA	532401971
152	CABLE	532435110
188	ŠROUB	532195161
189	MATICE	873900500
192	BRACKET	532197260
195	SCREW	817000612
241	SCREW	532152927
242	PORT.WASHOUT	532415598
254	REINFORCEMENT PLATE	585316805
255	REINFORCEMENT PLATE	585317005
256	BOLT	539109800
257	MATICE	873900400
	COUPLING	532416405
