Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > LC347 VLi LC347 VLi, 967663001, 2018-01 > HANDLE
Back to

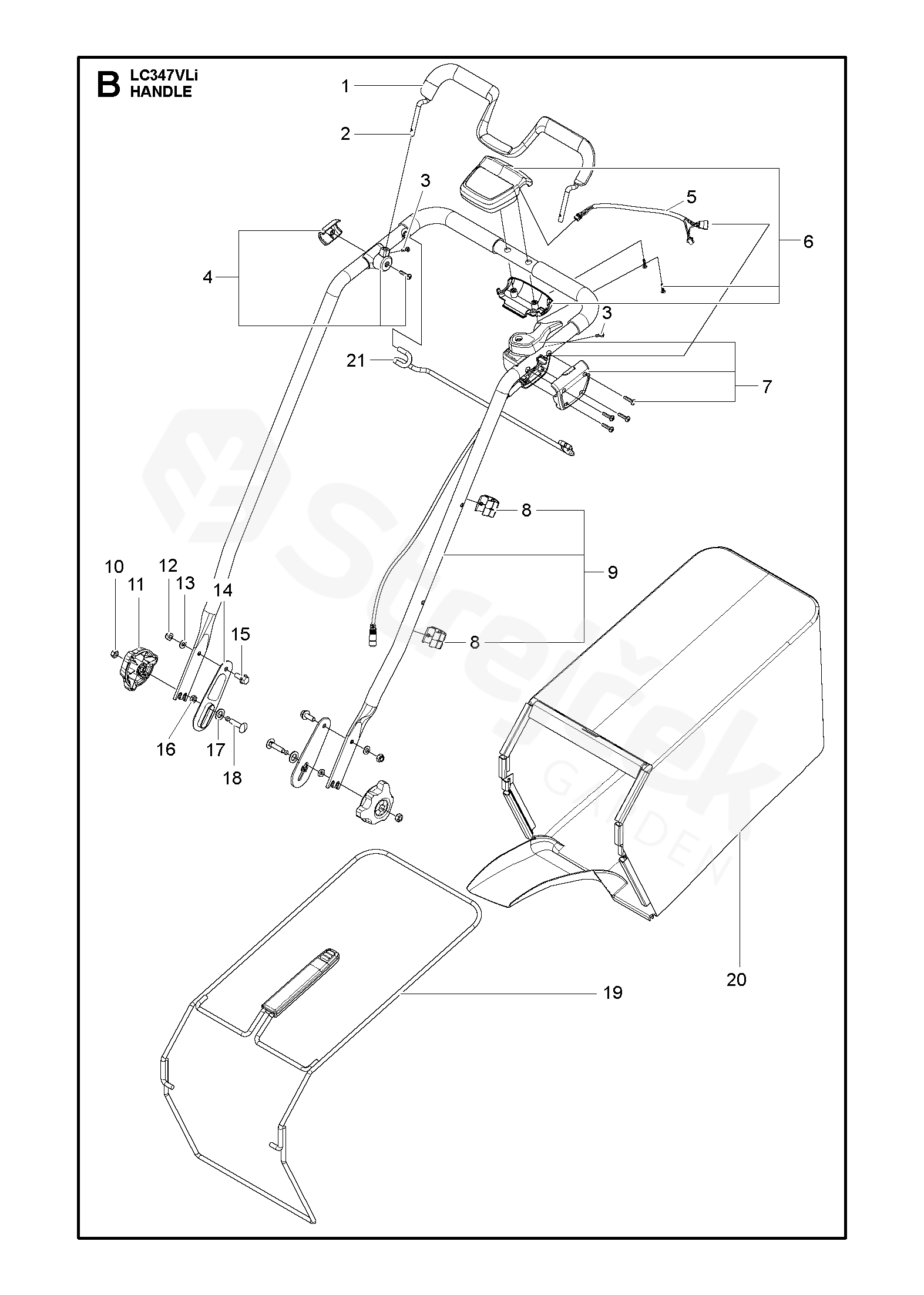

HANDLE
LC347 VLi LC347 VLi, 967663001, 2018-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LC347 VLi, 967663001, 2018-01
1 GRIP Ergonomic bail attachment
Ergonomic bail attachment 		590593801
2 BAIL OPC Bail
OPC Bail 		590593902
3 DRIVE SCREW M4 bail screw
M4 bail screw 		593198701
4 BAIL ARM ASSY Bail support assembly
Bail support assembly 		593118701
5 EXTENSION CABLE Control panel assy cable
Control panel assy cable 		593198601
6 CONTROL BOARD Push
Push 		593106101
7 SWITCHBOX ASSY Push
Push 		593118001
8 CABLE HOLDER Handle mounted clip
Handle mounted clip 		591086401
9 HANDLE ASSY Upper
Upper 		593119701
10 HEXAGON LOCKING NUT
M8 8 ZPB,ISO 4032 		731231801
11 KNOB
handle 		587237201
12 LOCK NUT
M8-8 		732211801
13 PODLOŽKA
8x16x1.5 St ZPB,Type NB 		734182051
14 PODLOŽKA
Washer handle/handlesupport 		587780401
15 SCREW EHHFM
M8x20 8.8 ZPB,EHHFM 		506570104
16 HEXAGON THIN NUT
M8 St 04 ZPB,ISO 4035 		731431801
17 PODLOŽKA
Nylon Washer 		588157401
18 BOLT
Esloc,Carriage Bolt M8 		588157302
19 FRAME
Grassbag 		587182001
20 GRASSBAG
Husqvarna, Fabric assembly 		587292301
21 BAIL
HVA, single speed 		587101802
