Spare parts
>
Husqvarna
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
LB 146P LB 146P, 967656201, 2018-01
>
PRODUCT COMPLETE
Back to
LB 146P
LB 146P, 967656201, 2018-01
PRODUCT COMPLETE
LB 146P
LB 146P, 967656201, 2018-01

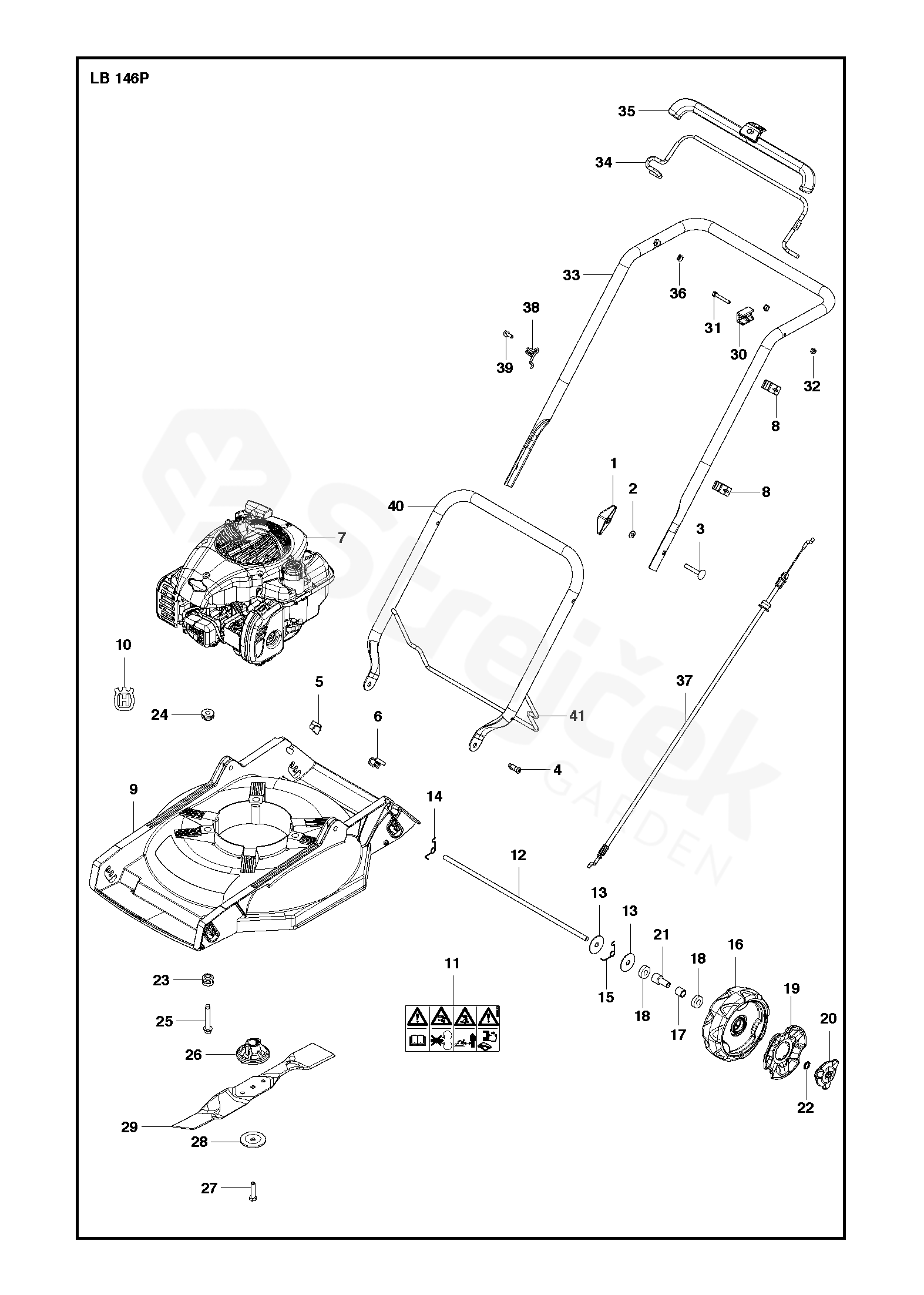

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LB 146P, 967656201, 2018-01
1
WING NUT
512793168
2
WASHER
514026603
3
BOLT
514994501
4
PIVOT PIN
578292501
5
INSERT
578292601
6
INSERT
578292602
7
TBD N/A
09P6020120H1
.
8
CABLE HOLDER
593129601
9
DECK
510694064
10
TBD N/A
.
11
DECAL
579733901
12
AXLE
513102801
13
WASHER
583943801
14
SPRING
513104500
15
SPRING
513104501
16
WHEEL ASSY
587631501
19
HUB CAP
587632701
20
NUT CAP
584159401
21
BUSHING
513906001
22
STARLOCK
514903100
23
SPACING SLEEVE
513102600
24
BUSH DECK INSULATOR
510770000
25
BOLT
514916702
26
ADAPTER
512794200
27
SCREW
584812301
28
WASHER
515796001
29
BLADE
583974010
30
BRACKET
531208043
31
SCREW EHHM
725237951
32
HEXAGON LOCKING NUT
732251601
33
HANDLE
582725702
34
BAIL
587101702
35
DRŽÁK
587102502
36
BUSHING
503320902
37
CABLE
588204805
38
EYELET
587102701
39
SCREW EHHFT
725236861
40
HANDLE
582725502
41
BAIL
582785201
