Spare parts
>
Husqvarna
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
LB 253S LB 253S, 967656401, 2018-01
>

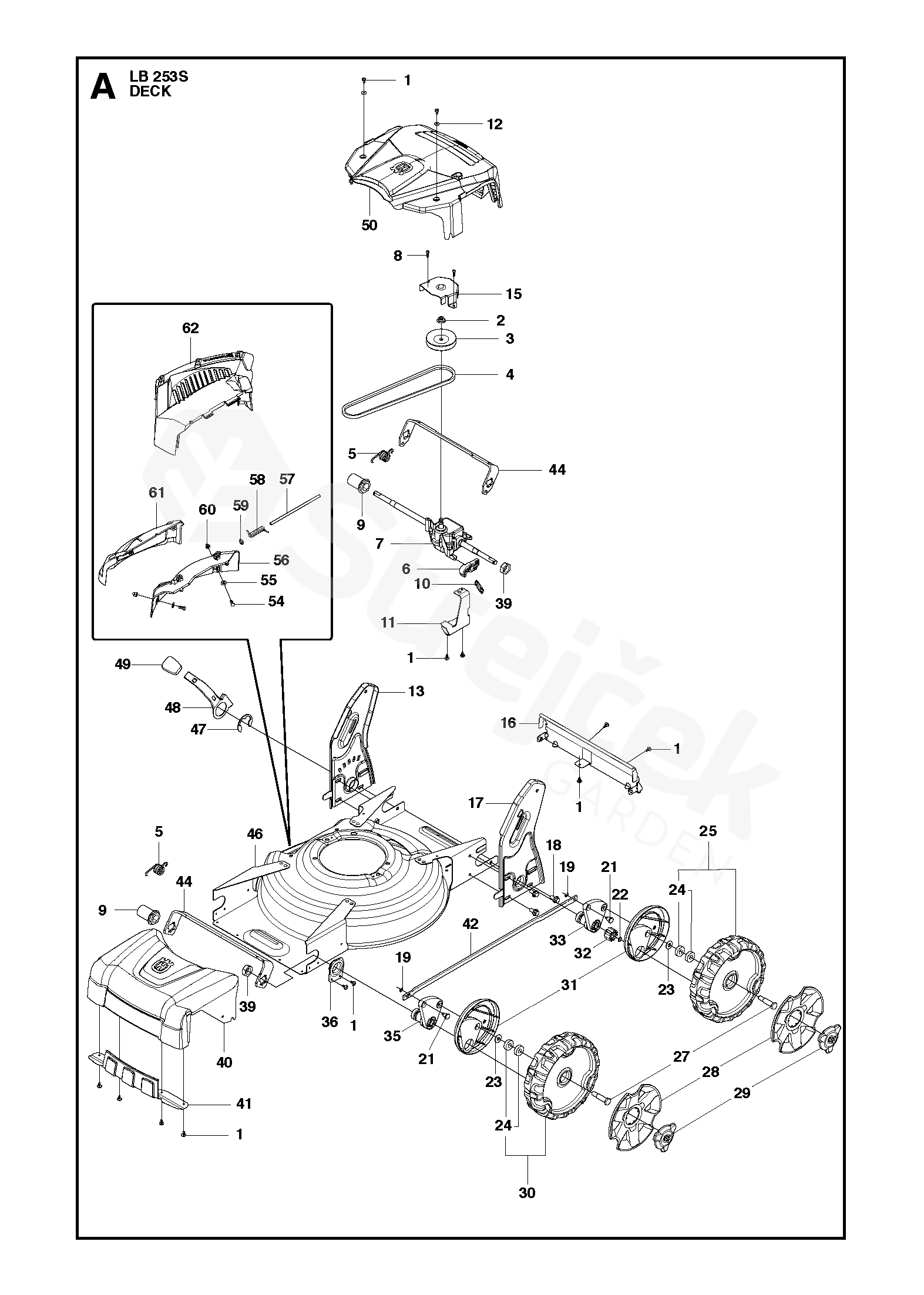

MOWER DECK / CUTTING DECK
Back to
LB 253S
LB 253S, 967656401, 2018-01
MOWER DECK / CUTTING DECK
LB 253S
LB 253S, 967656401, 2018-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LB 253S, 967656401, 2018-01
1
SCREW ITXPANTT
502435201
2
NUT FLANGE
504055601
3
PULLEY
504053301
4
BELT
501986605
5
SPRING
522024601
6
LEVER
504838201
7
TRANSMISSION
592633601
8
SCREW ITXPANT
502435301
9
NUT
522024001
10
SPRING
504048701
11
BRACKET
504048601
12
WASHER, 5X13X1
504456001
13
HANDLE SUPPORT
582664202
15
BELT GUIDE
522612301
16
SKID PLATE
504641501
17
HANDLE SUPPORT
582664502
18
SCREW EHHFT
506558302
19
E-CLIP
735310921
21
SHAFT
504625001
22
LOCK RING
504702801
23
WASHER
505221401
24
BALL BEARING
738210104
25
KOLO KOMPL.
584142201
27
SCREW
574259401
28
HUB CAP
584159301
29
NUT CAP
584159401
30
KOLO KOMPL.
584611601
31
DUST COVER
504624101
32
PASTOREK
544342301
33
LINK ARM ASSY
504709804
35
LINK ARM ASSY
504709802
36
BRACKET
504624901
39
NUT
505521001
40
FRONT COVER ASSY
583901801
41
SKID PLATE
502625402
42
ROD
584810702
44
TRANSVERSAL ROD
574406001
46
CHASSIS
505397004
47
LOCKWASHER
735313621
48
LEVER
504838201
49
KNOB
522598501
50
REAR COVER
505201902
54
SCREW
505156101
55
WASHER
505198401
56
FRAME
505397701
57
AXLE
504585001
58
SPRING
504585301
59
WASHER
735584101
60
CAP NUT
502305001
61
MULCH DOOR
504584501
62
DEFLECTOR
587089301
