Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > YTH1942 YTH1942, 96043024900, 2017-08 > ENGINE
Back to

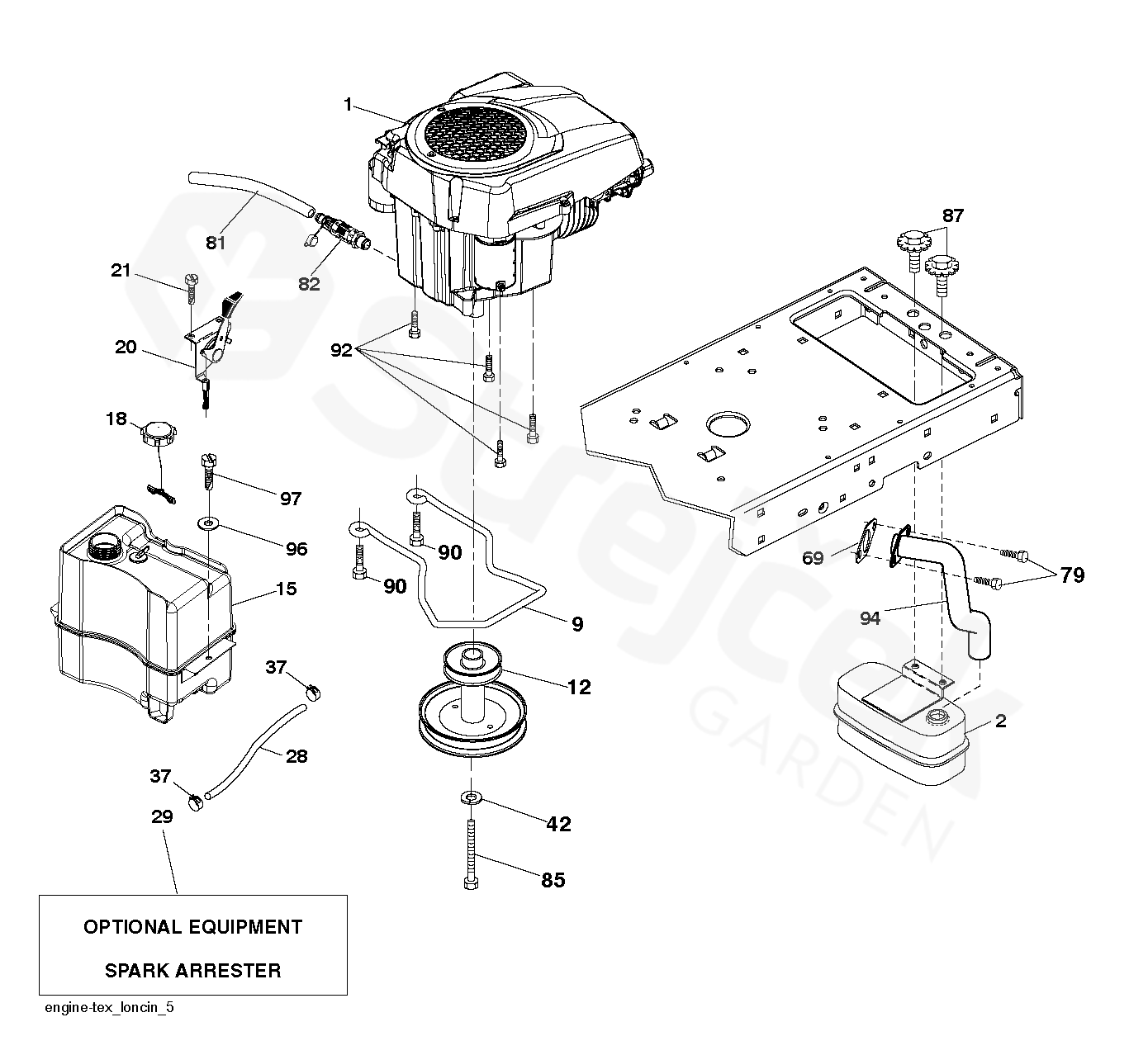

ENGINE
YTH1942 YTH1942, 96043024900, 2017-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For YTH1942, 96043024900, 2017-08
1 ENGINE 591071601
2 MUFFLER 590645301
9 KEEPER 501832602
12 PULLEY 586478501
15 TANK ASSY 532433004
18 CAP 581176101
20 CONTROL 532183897
21 SCREW 532416358
28 DURITE ESSENCE 20" 532401137
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
42 PODLOŽKA 539990247
69 GASKET 590863601
79 SCREW 532183906
81 TRUBKA 532148456
82 PLUG 532428287
85 BOLT 501606501
87 BOLT 532171877
90 SCREW 817000616
92 SCREW 817120616
94 TUBE 590864801
96 PODLOŽKA 819091416
97 SCREW 817670412
