Spare parts - Partlist - YTH1942 YTH1942, 96043024900, 2017-08 - ENGINE

Everything for your machines

YTH1942 YTH1942, 96043024900, 2017-08

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For YTH1942, 96043024900, 2017-08

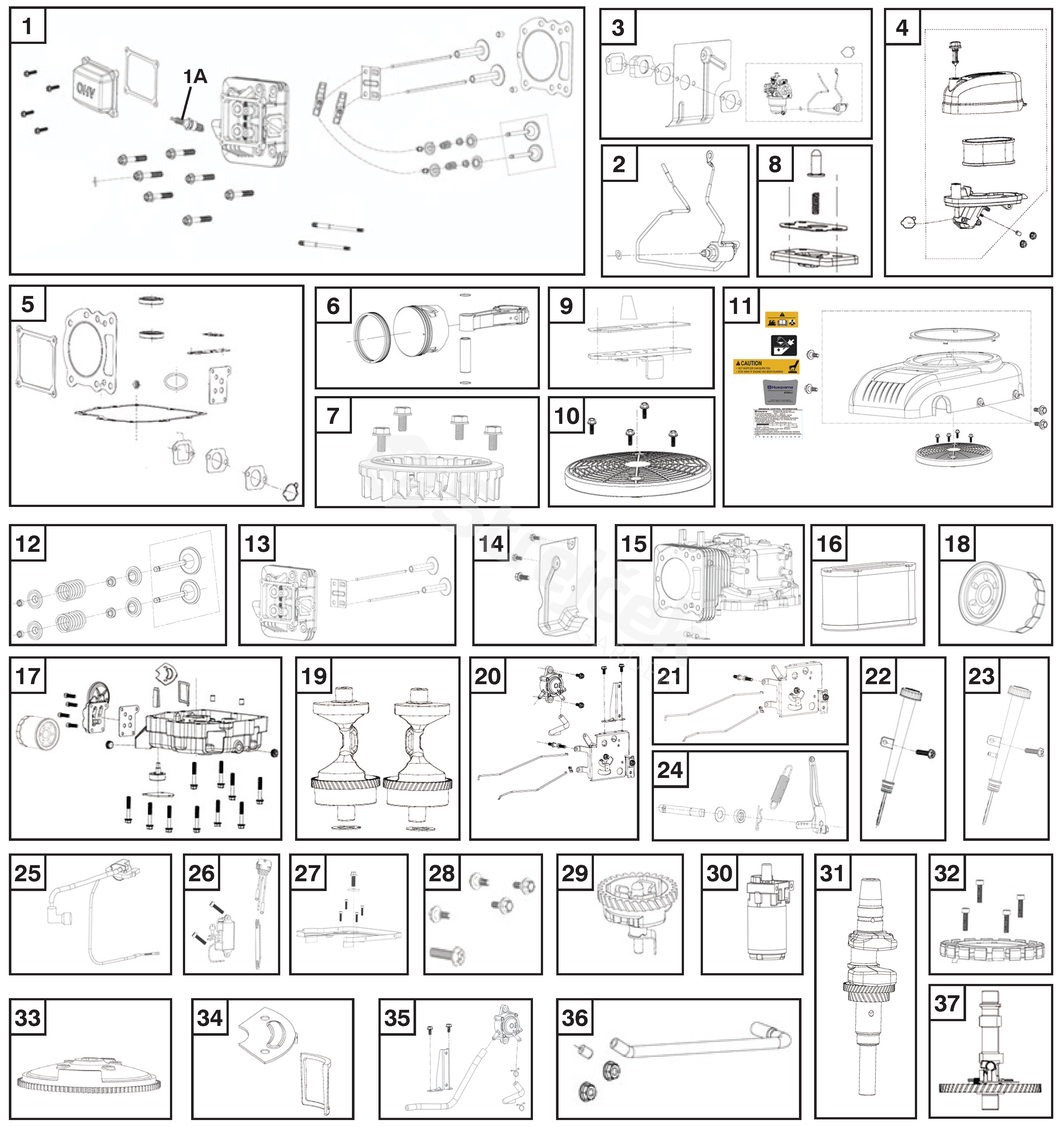

1	SERVICE KIT CYLINDER HEAD CYLINDER HEAD	591166101
2	SERVICE KIT SOLENOID SOLENOID	590901901
3	SERVICE KIT CARBURETOR KIT WITH FUEL PUMP CARBURETOR KIT WITH FUEL PUMP	593240101
4	SERVICE KIT AIR CLEANER AIR CLEANER	593230701
5	SERVICE KIT GASKET KIT GASKET KIT	590902201
6	SERVICE KIT PISTON AND RING SET PISTON AND RING SET	590903001
7	SERVICE KIT IMPELLER IMPELLER	590903101
8	SERVICE KIT REED VALVE KIT REED VALVE KIT	590903201
9	SERVICE KIT VALVE BREATHER KIT VALVE BREATHER KIT	590903301
10	SERVICE KIT FAN COVER FAN COVER	592964601
11	COVER START COVER KT START COVER KT	593230901
12	SERVICE KIT VALVE VALVE	591042401
13	SERVICE KIT CYLINDER HEAD CYLINDER HEAD	591042501
14	SERVICE KIT AIR DEFLECTOR AIR DEFLECTOR	591042701
15	SERVICE KIT CRANKCASE BODY KIT CRANKCASE BODY KIT	591042801
16	AIR FILTER AIR FILTER AIR FILTER	593231001
17	SERVICE KIT CRANKCASE COVER KT CRANKCASE COVER KT	591043201
18	SERVICE KIT OIL FILTER OIL FILTER	591043301
19	SERVICE KIT BALANCING SHAFT KIT BALANCING SHAFT KIT	591043401
20	SERVICE KIT THROTTLE LEVER KIT WITH FUEL PUMP THROTTLE LEVER KIT WITH FUEL PUMP	593104101
21	SERVICE KIT THROTTLE LEVER KIT WITHOUT FUEL PUMP THROTTLE LEVER KIT WITHOUT FUEL PUMP	591043501
22	SERVICE KIT FILLER TUBE KIT WITHOUT FUEL PUMP FILLER TUBE KIT WITHOUT FUEL PUMP	591043801
23	SERVICE KIT FILLER TUBE KIT WITH FUEL PUMP FILLER TUBE KIT WITH FUEL PUMP	593146701
24	SERVICE KIT SPEED REGULATING ARM KIT SPEED REGULATING ARM KIT	591043901
25	SERVICE KIT FILLER TUBE KIT WITHOUT FUEL PUMP IGNITION COIL ASSEMBLY	591043801
26	SERVICE KIT VOLTAGE RECTIFIER VOLTAGE RECTIFIER	591044101
27	SERVICE KIT SIDE PLATE KIT SIDE PLATE KIT	591044201
28	SERVICE KIT BOLT KIT BOLT KIT	591044301
29	SERVICE KIT GOVENOR GEAR GOVENOR GEAR	591044501
30	SERVICE KIT STARTER MOTOR KIT STARTER MOTOR KIT	591044701
31	SERVICE KIT CRANKSHAFT CRANKSHAFT	592950701
32	SERVICE KIT CHARGING ARMATURE KIT CHARGING ARMATURE KIT	592950801
33	SERVICE KIT FLYWHEEL FLYWHEEL	592950901
34	SERVICE KIT OIL STRAIN KIT OIL STRAIN KIT	592951001
35	MODULE Fuel System Kit Fuel System Kit	593168501
36	SERVICE KIT BREATHER TUBE BREATHER TUBE	591043101
37	SERVICE KIT CAMSHAFT CAMSHAFT	591044601
1A	SPARK ARRESTER SPARK PLUG SPARK PLUG	591166001
