McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
M40-120 CLASSIC M40-120 CLASSIC, 96768260100, 2018-01
>
PRODUCT COMPLETE
Back to
M40-120 CLASSIC
M40-120 CLASSIC, 96768260100, 2018-01
PRODUCT COMPLETE

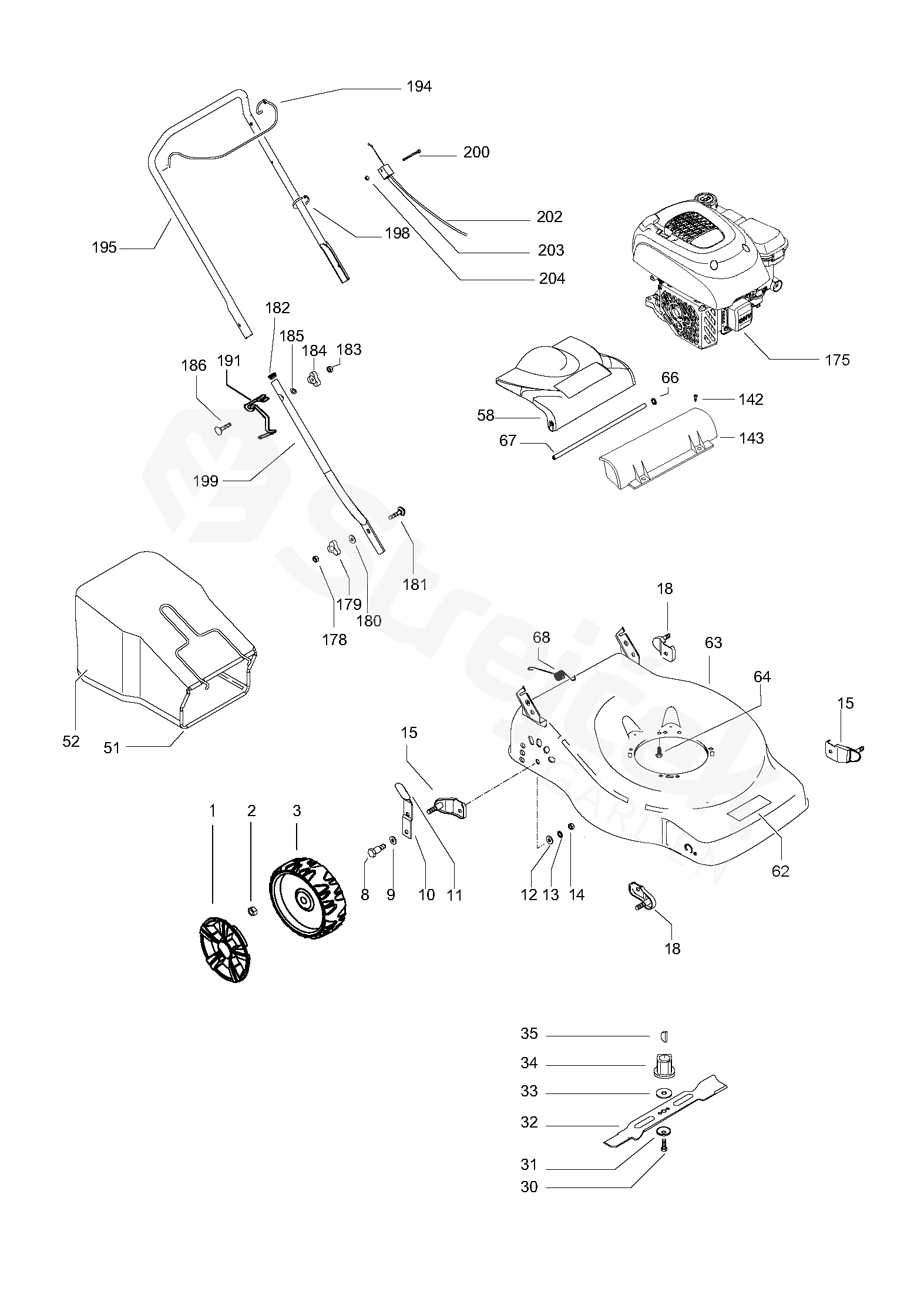

M40-120 CLASSIC
M40-120 CLASSIC, 96768260100, 2018-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M40-120 CLASSIC, 96768260100, 2018-01
1
HUB CAP
d.170
574396301
2
MATICE
504857801
3
WHEEL
d.170
574414904
8
SCREW
M10x26.4
531204912
9
WASHER
588234202
10
LEVER
586932801
11
KNOB
574610501
12
WASHER
531207989
13
PODLOŽKA
531208974
14
NUT
M10x26.4
531207978
15
SUPPORT WHEEL
504851601
18
SUPPORT WHEEL
504851501
30
SCREW
3/8"
531208008
31
WASHER
531207237
32
MOWER BLADE
587159010
33
WASHER
531207243
34
ADAPTER
531207242
35
KEY
505290901
51
FRAME
531213467
52
COLLECTOR
579816301
58
HATCH
574610201
62
DECAL
McCulloch
581021701
63
DECK
521899643
64
BOLT
3/8"
532150406
66
LOCKWASHER
584816903
67
SHAFT
531205060
68
SPRING
531205999
142
SCREW
M5x8
576136006
143
SEAL
579300901
175
ENGINE
591205504
178
NUT
M8
531207982
179
WING NUT
531204923
180
WASHER
531204922
181
SCREW
M8x25
531204921
182
PLUG
531208950
183
NUT
M8
531207982
184
WING NUT
531204923
185
WASHER
531207090
186
SCREW
M8x50
531207089
191
HOOK
504708601
194
HANDLE
504708304
195
HANDLE
upper half
504708001
198
CABLE HOLDER
531205581
199
HANDLE
lower half
531206071
200
SCREW EHHM
580833601
202
CABLE ASSY
582192102
203
BRACKET
531208043
204
HEXAGON LOCKING NUT
581551201
