McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
M46-110RB CLASSIC M46-110RB CLASSIC, 96794270100, 2018-05
>
PRODUCT COMPLETE
Back to
M46-110RB CLASSIC
M46-110RB CLASSIC, 96794270100, 2018-05
PRODUCT COMPLETE

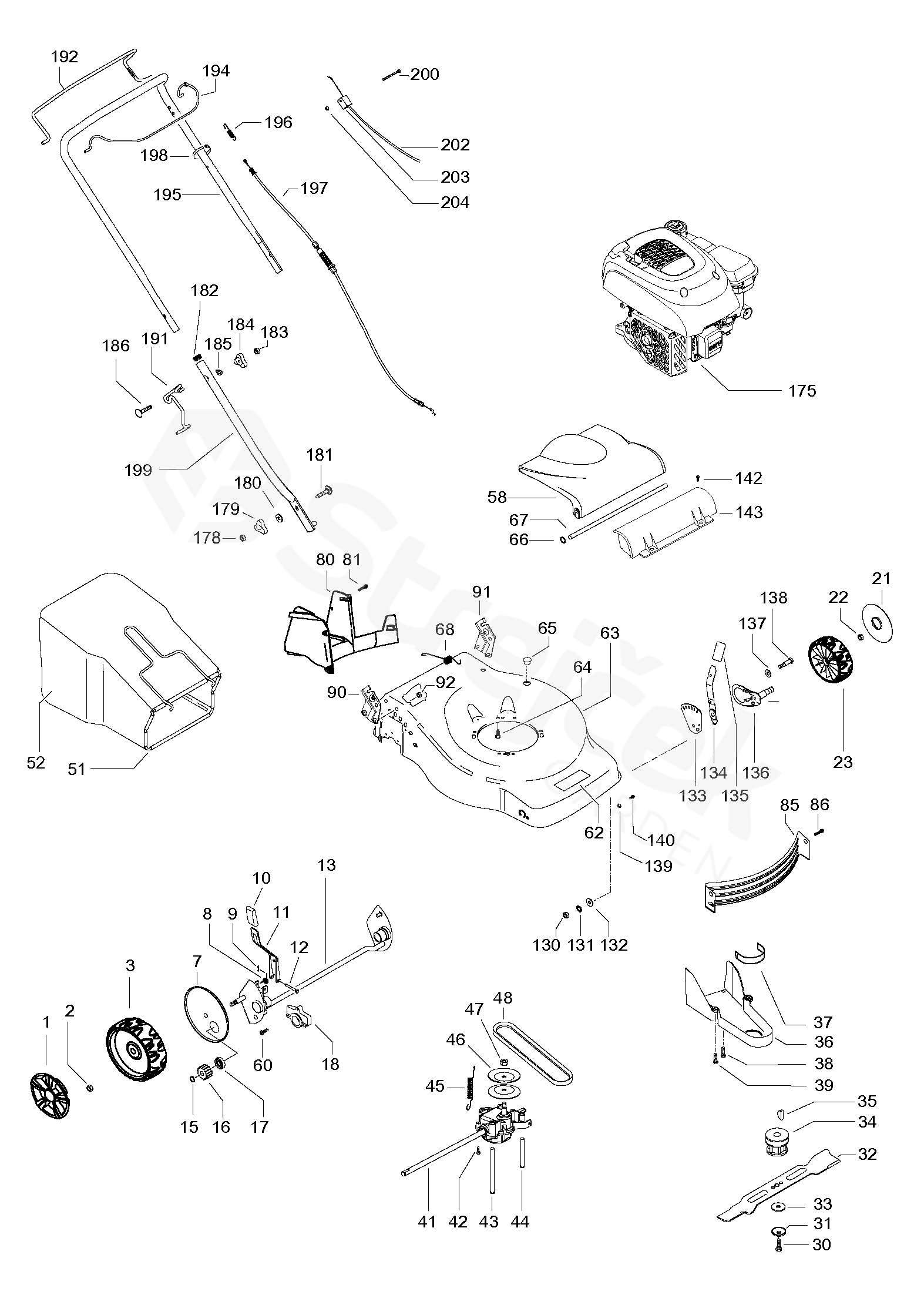

M46-110RB CLASSIC
M46-110RB CLASSIC, 96794270100, 2018-05
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M46-110RB CLASSIC, 96794270100, 2018-05
1
HUB CAP
d.210
574396501
2
MATICE
M8, self locking, flanged
504857801
3
WHEEL
d.210
574415204
7
DUST COVER
504827301
8
SPRING
583951302
9
PIN RETAINING SCREW
531207408
10
KNOB
574610501
11
LEVER ASSY
582759301
12
PEN
587198201
13
REAR AXLE
504800101
15
PODLOŽKA
531208772
16
PINION
582701701
17
BEARING
531208778
18
SUPPORT
531205944
21
HUB CAP
d.190
574396401
22
MATICE
M8, self locking, flanged
504857801
23
WHEEL
d.190
574415004
30
SCREW
3/8"
531208008
31
WASHER
531207237
32
MOWER BLADE
581188910
33
WASHER
531207243
34
BLADE SUPPORT
581843001
35
KEY
505290901
36
GUARD
589023101
37
BELT GUIDE
501189002
38
SCREW
817411312
39
SCREW
5x10
531207856
41
GEARBOX
544343203
42
SCREW
4x16, self threading
510037501
43
BELT GUIDE
544934401
44
BELT GUIDE
544934301
45
SPRING
544934701
46
PULLEY
504547901
47
NUT
504548001
48
BELT
Z28 10X710
504034801
51
FRAME
531213467
52
COLLECTOR
579816301
58
HATCH
574610201
60
SCREW
531206677
62
DECAL
McCulloch
581021701
63
CHASSIS
582890402
64
BOLT
3/8"
532150406
65
PLUG
531205318
66
LOCKWASHER
584816903
67
SHAFT
531205060
68
SPRING
531205999
80
BAFFLE
589023001
81
SCREW
589814401
85
BAFFLE
589008701
86
BOLT
817000510
90
HANDLE BRACKET right
right
582749802
91
HANDLE BRACKET left
left
582746702
92
HEXAGON NUT FLANGE M8
M8
582758901
130
NUT
M10
531207978
131
PODLOŽKA
531208974
132
WASHER
531207989
133
INDEX PLATE
589352802
134
LEVER
544452501
135
KNOB
574610501
136
FRONT AXLE ASSY
589354102
137
WASHER
588234201
138
SCREW
M10
531204912
139
NUT
M5
531205213
140
SCREW
M5
531207270
142
SCREW
576136006
143
SEAL
579300901
175
ENGINE ASSY
579820201
178
NUT
M8
531207982
179
WING NUT
531204923
180
WASHER
531204922
181
SCREW
M8x25
531204921
182
PLUG
531208950
183
NUT
M8
531207982
184
WING NUT
531204923
185
WASHER
531207090
186
SCREW
M8x50
531207089
191
HOOK
504708601
192
HANDLE
504708401
194
HANDLE
504708304
195
HANDLE
upper half
504708001
196
SPRING
580761901
197
CABLE
544908001
198
CABLE HOLDER
531205581
199
HANDLE
lower half
531206071
200
SCREW EHHM
M5x40
580833601
202
CABLE ASSY
582192102
203
CASING
531212689
204
HEXAGON LOCKING NUT
581551201
