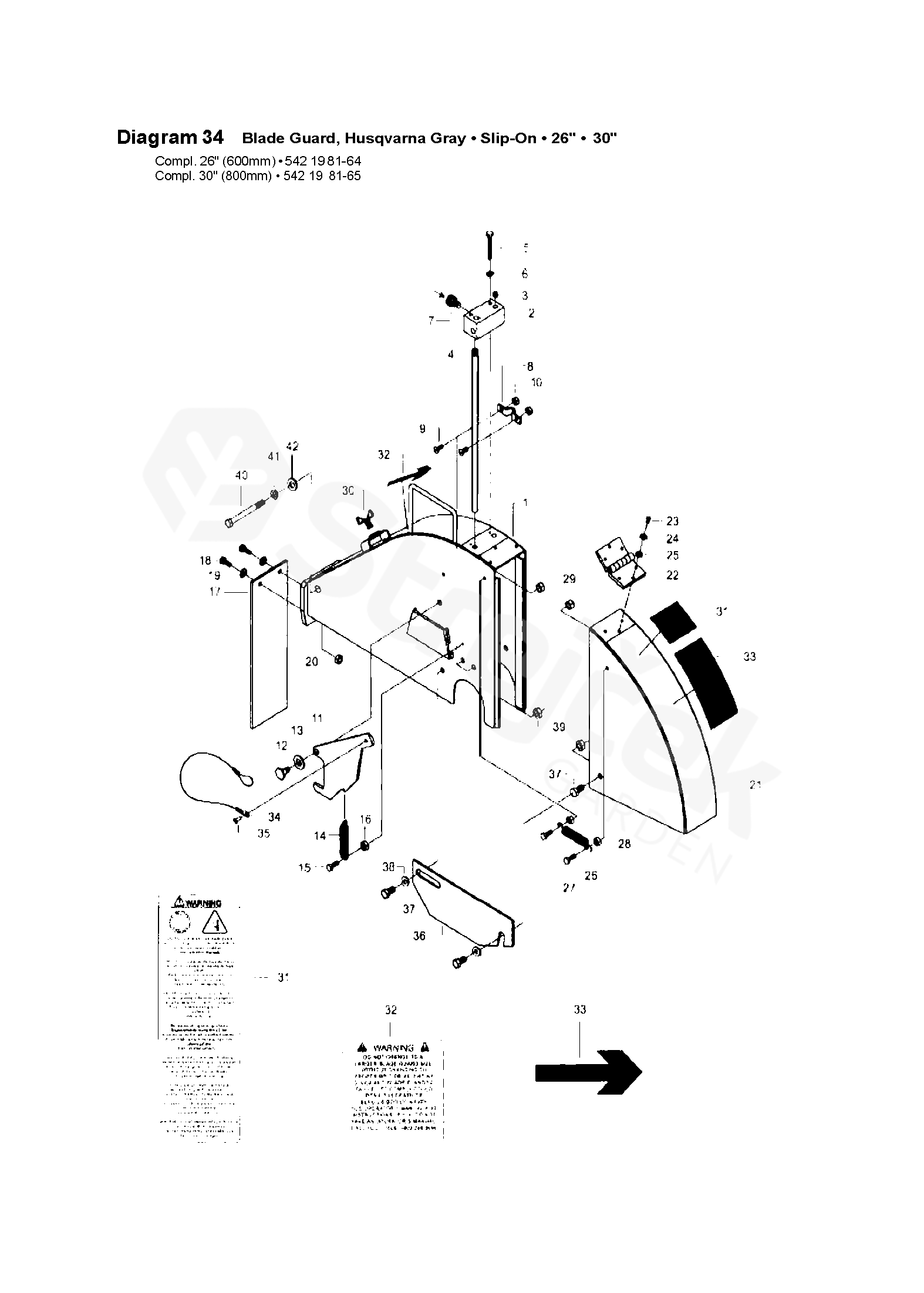

Spare parts - Partlist - FS3500 E FS3500 E, 2018-06 - BLADE GUARD

Everything for your machines

FS3500 E FS3500 E, 2018-06

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FS3500 E, 2018-06

1	BLD GRD WLMT.REAR 30".PC H-GRY Rear 30" H-Gray	541208439
2	BRACKET Water	542166750
3	SCREW .125 NPT Pipe Br	542020864
4	COLLECTOR 30"	542166815
5	SCREW Hex Hd, M6 x 1.0 x 45 DIN931	542139759
6	LOCKWASHER Split M6	542163689
7	FS900T REDUCTION/HOSE H:ITTIN Hose .375 x .75GHT	542040275
8	CLAMP Water Tube	542163395
9	SCREW Flat Hd, M6 x 1.0 x 16 Slot	542167818
10	LOCK NUT Fiber M6 DIN 985	542139745
11	LATCH S-0 Blade Guard	542166816
12	BOLT Latch Pivot MB x 1.25	542167503
13	WASHER Fiber 10Dx.406251Dx.09375	542046101
14	SPRING Extension, Stainless	542163188
15	SCREW Hex Hd, M5 x 0.8 x 20 DIN933	542167761
16	NUT Std Hex M5 x .80 DIN934	542172011
17	SPLASH GUARD Splash - 3"	542163275
18	M6 X 20MM SET SCREW/ Hex Hd, M6 x 1.0 x 20 DIN931	542139761
19	WASHER Flat M6	542139746
20	LOCK NUT Fiber M6 DIN 985	542139745
21	GUARD Front 30" H-Gray	541208438
22	HINGE Blade Guard - 3" Width	542195127
23	SCREW Hex Hd, MB x 1.25 x 20 DIN933	542197227
24	STAR WASHER, EXTERNAL M8/ Star External MB	542173019
25	WASHER Flat MB	542173059
26	SPRING Blade Guard,	542199128
27	M6 X 20MM SET SCREW/ Hex Hd, M6 x 1.0 x 20 DIN931	542139761
28	NUT Hex M6	542172017
29	LOCK NUT Fiber M6 DIN 985	542139745
30	WING BOLT M6 x 16 DIN931	542197170
31	DECAL WARNING, Blade Guard	542167298
32	DECAL WARNING (Bid Grd Size)	542046128
33	DECAL Blade Direction - Small	542167289
34	WIRE Nylon Coated S.S.	542183998
35	SCREW Screw #10 X .25	542183999
36	PLATE Bladeshaft - Husq Gray	541208440
37	HUTSCHRAUBE HX HD.M12-1,75X25 Hex Hd, M12 x 1.75 x 25 DIN933	542139751
38	HS350T RINGS/ Flat .50" Dia	542020745
39	NUT Fiber M12 DIN 985	542139742
40	BOLT Hex Hd, M16 x 2.00 x 110 DIN931	542166957
41	WASHER Split M16	542191962
42	SCHEIBE FLAT 5/8 SAE Flat .625" Dia	542020767
	BLADE GUARD 26" - Comp (lncls Items 1 - 35)	542198164
