Spare parts > Husqvarna Construction Products > POWER CUTTERS > K 4000 K 4000, 2018-03 > GEARS
Back to

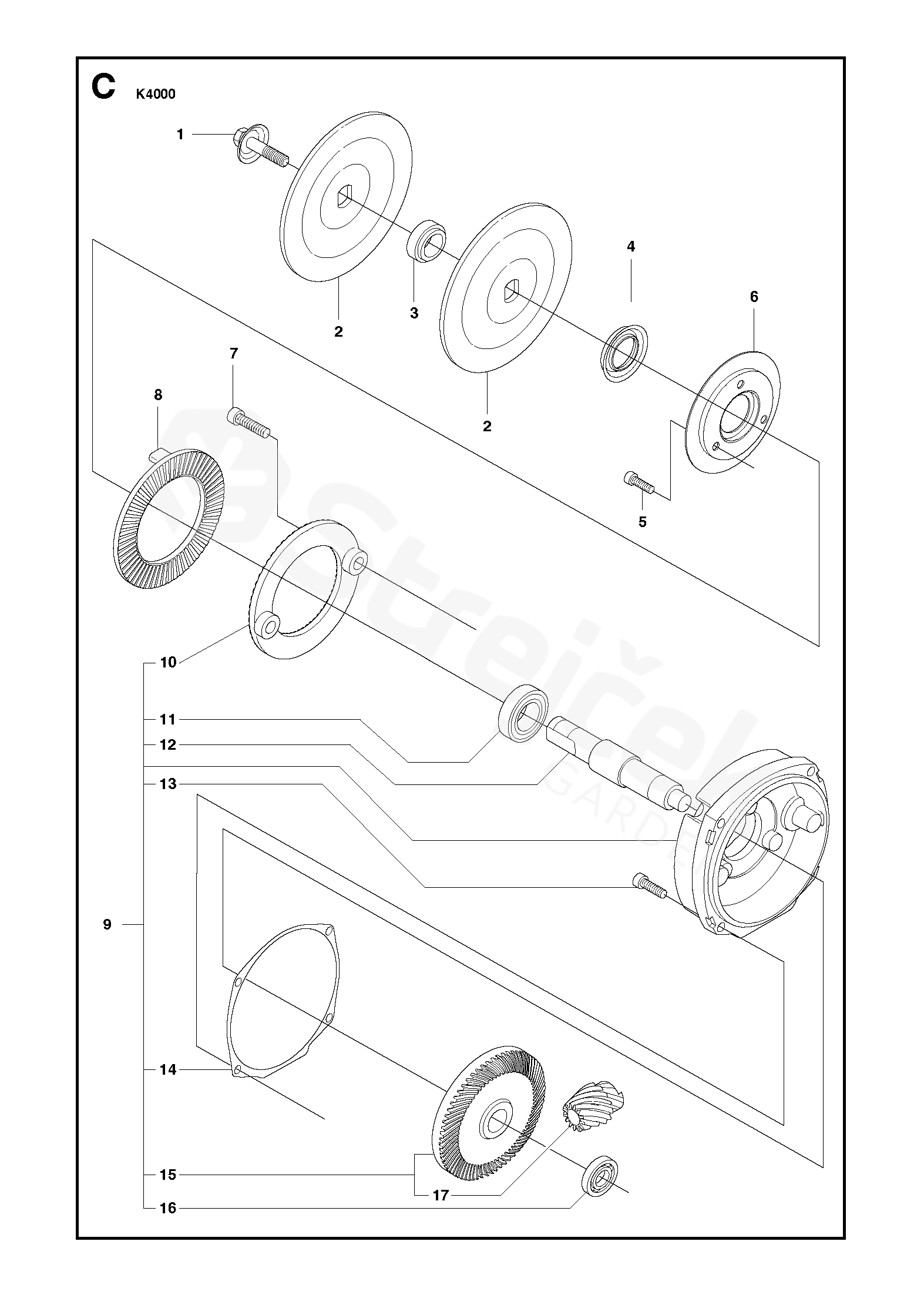

GEARS
K 4000 K 4000, 2018-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K 4000, 2018-03
1 SCREW 581855201
2 FLANGE WASHER
JP 		506070901
3 BUSHING Diam 30, 5 mm
JP 		581605403
4 OPĚRANÁ PŘÍRUBA 506324801
5 SCREW ITXSCM 505574116
6 FLANGE 506266501
7 SCREW ITXSCM 503215310
8 SCREEN 506266401
9 GEAR SET
Incl. 10 - 16 		544403201
10 SCREEN 506288401
11 BALL BEARING 503252101
12 BLADE SHAFT 506412801
13 SCREW ITXSCM 505574120
14 GASKET 523056201
15 GEAR WHEEL
Incl. 17 		531031875
16 BALL BEARING 738220015
17 PASTOREK 506098602
