Gardol
>
LAWN MOWERS
>
EDITION 2 EDITION 2, 96763886201, 2018-02
>
PRODUCT COMPLETE
Back to
EDITION 2
EDITION 2, 96763886201, 2018-02
PRODUCT COMPLETE

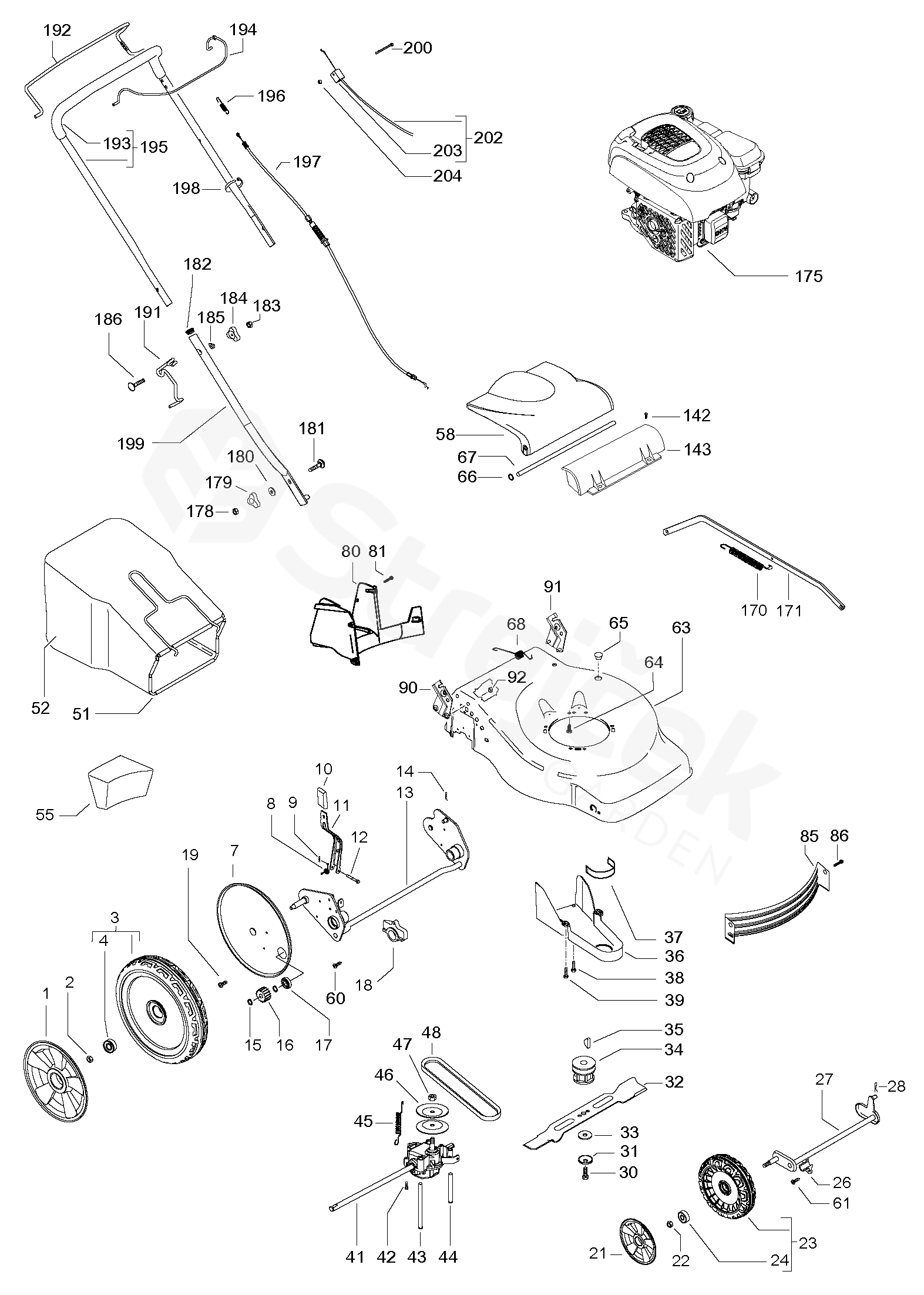

EDITION 2
EDITION 2, 96763886201, 2018-02
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
EDITION 2, 96763886201, 2018-02
1
HUB CAP
d.280
504542201
2
MATICE
M8, self locking, flanged
504857801
3
WHEEL ASSY
d.280
505436001
4
BEARING
531208778
7
HUB CAP
d.280
504539901
8
SPRING
583951302
9
PIN RETAINING SCREW
531207408
10
KNOB
574610501
11
LEVER ASSY
582759301
12
PEN
587198201
13
REAR AXLE
510092801
14
KOLÍČEK
531206653
15
PODLOŽKA
531208772
16
PINION
582701701
17
BEARING
531208778
18
SUPPORT
531205944
19
SCREW
M5x10
531207856
21
HUB CAP
d.190
544445901
22
MATICE
M8, self locking, flanged
504857801
23
WHEEL ASSY
d.190
544917302
24
BEARING
531208778
26
SUPPORT
577384201
27
FRONT AXLE
573976001
28
KOLÍČEK
531206653
30
SCREW
3/8"
531208008
31
WASHER
531207237
32
BLADE
504113310
33
WASHER
531207243
34
BLADE SUPPORT
504591201
35
KEY
504591401
36
BELT GUARD
502093601
37
BELT GUIDE
501189002
38
SCREW
817411312
39
SCREW
5x10
531207856
41
GEARBOX
504541403
42
SCREW
4x16, self threading
510037501
43
BELT GUIDE
504103101
44
BELT GUIDE
544934301
45
SPRING
544934701
46
PULLEY
504547901
47
NUT
504548001
48
BELT
Z30 10X765
504103301
51
BAG FRAME
531213262
52
GRASS CATCHER
531213264
55
PLUG
579679301
58
HATCH
544255501
60
SCREW
531206677
61
SCREW
4x16, self threading
525433101
63
CHASSIS
589391702
64
BOLT
3/8"
532150406
65
PLUG
531205318
66
LOCKWASHER
584816903
67
SHAFT
531205060
68
SPRING
531205999
80
INSERT
502093901
81
SCREW
589814401
85
BAFFLE
588907101
86
BOLT
817000510
90
HANDLE BRACKET right
right
582750702
91
HANDLE BRACKET left
left
582750302
92
HEXAGON NUT FLANGE M8
M8
582758901
142
SCREW
576136006
143
SEAL
579300901
170
SPRING
579245302
171
ROD
580963201
175
TBD
engine, Honda GCV160A0S4HB
N/A
178
NUT
M8
531207982
179
WING NUT
531204923
180
WASHER
531204922
181
SCREW
M8x25
531204921
182
PLUG
531208950
183
NUT
M8
531207982
184
WING NUT
531204923
185
WASHER
531207090
186
SCREW
M8x50
531207089
191
HOOK
504708601
192
HANDLE
504708401
193
SHEATING
531205989
194
HANDLE
504708301
195
HANDLE
upper half
504853401
196
SPRING
580761901
197
CABLE
544908002
198
CABLE HOLDER
531205581
199
HANDLE
lower half
531206071
200
SCREW EHHM
M5x40
580833601
202
CABLE ASSY
582192102
203
CASING
531212689
204
HEXAGON LOCKING NUT
581551201
