Spare parts > Husqvarna > BRUSHCUTTERS/CLEARING SAWS > 553 RBX 553 RBX, 2018-06 > CYLINDER PISTON
Back to

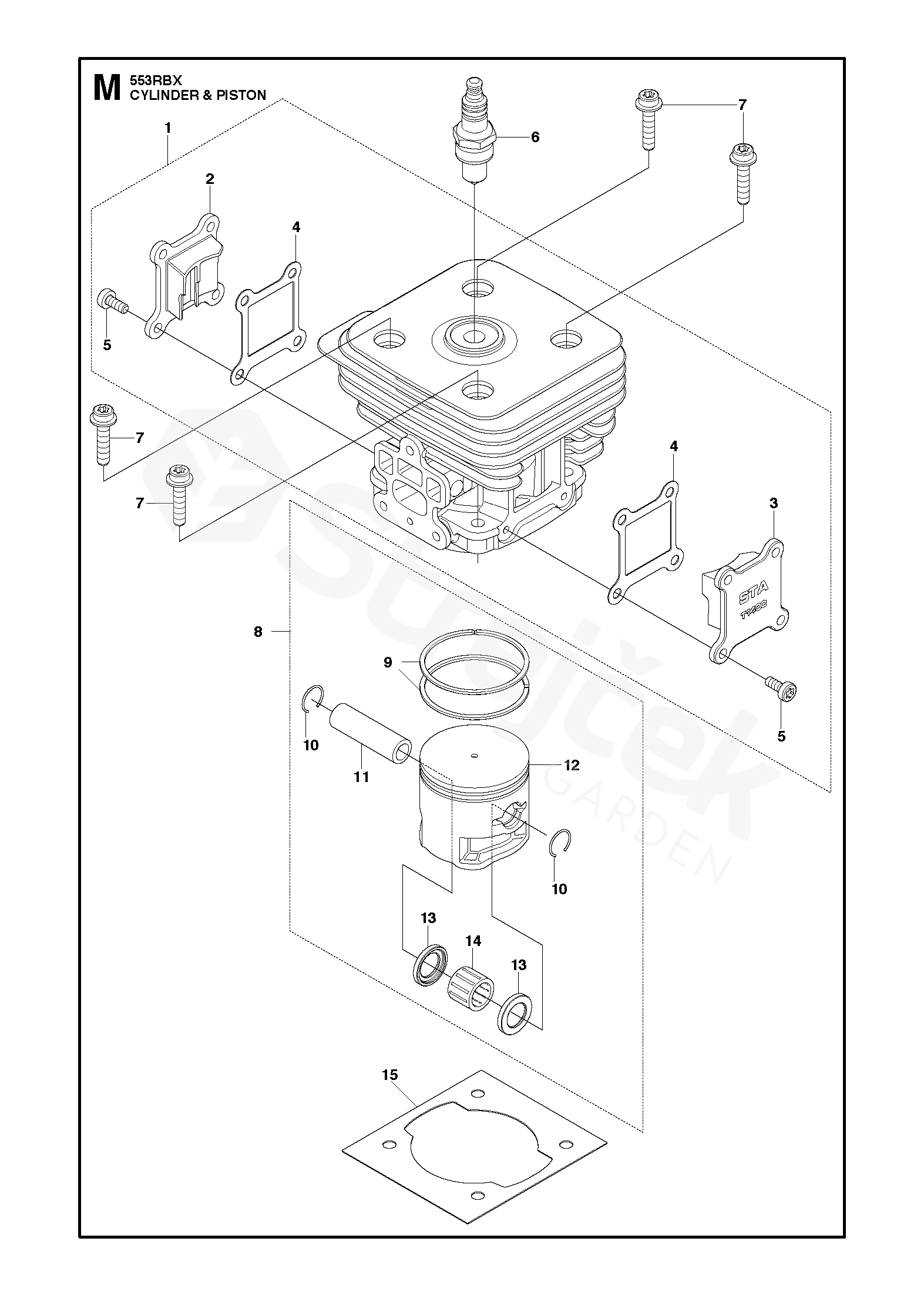

CYLINDER PISTON
553 RBX 553 RBX, 2018-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 553 RBX, 2018-06
1 CYLINDER 582898301
2 COVER 575346801
3 COVER 575346701
4 GASKET 521634601
5 SCREW 504119201
6 SPARK PLUG 521233401
7 BOLT 506745201
8 PISTON 582306801
9 RING 512311201
10 SNAP RING 502849801
11 PIN 510916901
12 PISTON 528774001
13 WASHER 513622401
14 BEARING 576696301
15 GASKET 521634301
