Spare parts > Husqvarna > Engines > KOHLER ENGINES KOHLER COURAGE 15 HP, SV470-0011, 2007-01 > OIL PAN
Back to

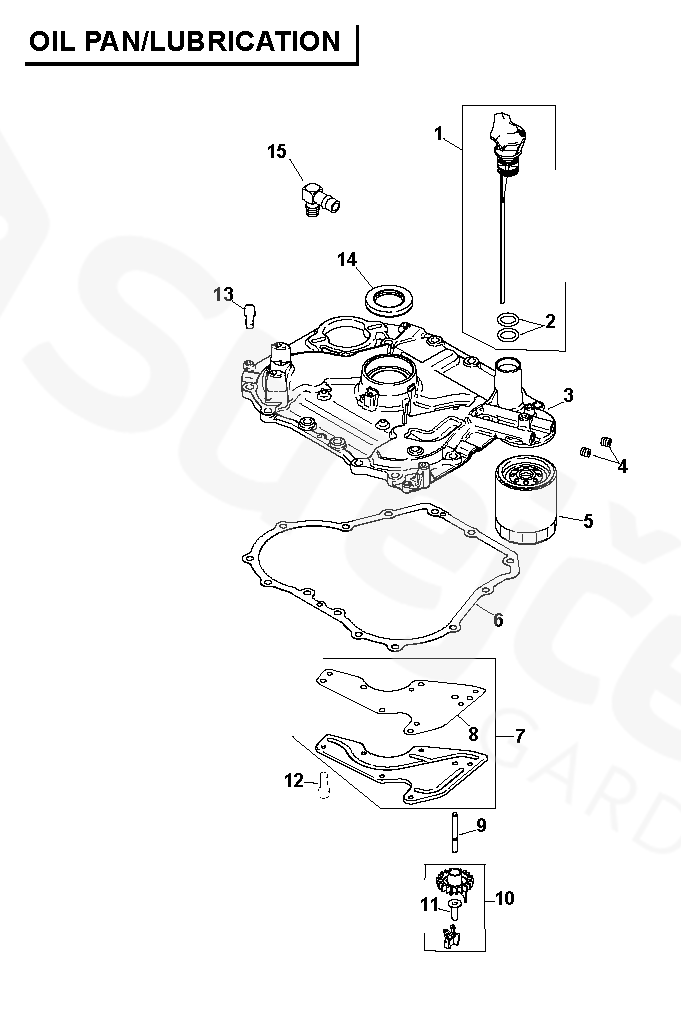

OIL PAN
KOHLER ENGINES KOHLER COURAGE 15 HP, SV470-0011, 2007-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For KOHLER COURAGE 15 HP, SV470-0011, 2007-01
1 DIPSTICK
(INCLUDES 2) 		531029540
2 O-RING 531029541
3 PLATE
(INCLUDES 4, 7-12,14) 		531029542
4 PLUG 531029543
5 FILTER 531029503
6 GASKET 531029544
7 PROTECTOR
(INCLUDES 8) 		531029545
8 GASKET 531029546
9 SHAFT 531029547
10 GEAR
(INCLUDES 11) 		531029548
11 PIN RETAINING SCREW 531029549
12 SCREW 531029550
13 SCREW 531029551
14 SEALING 531029514
15 CONNECTION 531029873
