Spare parts - Partlist - TUFFTORQ K574R, 2012-10 - TRANSMISSION

Everything for your machines

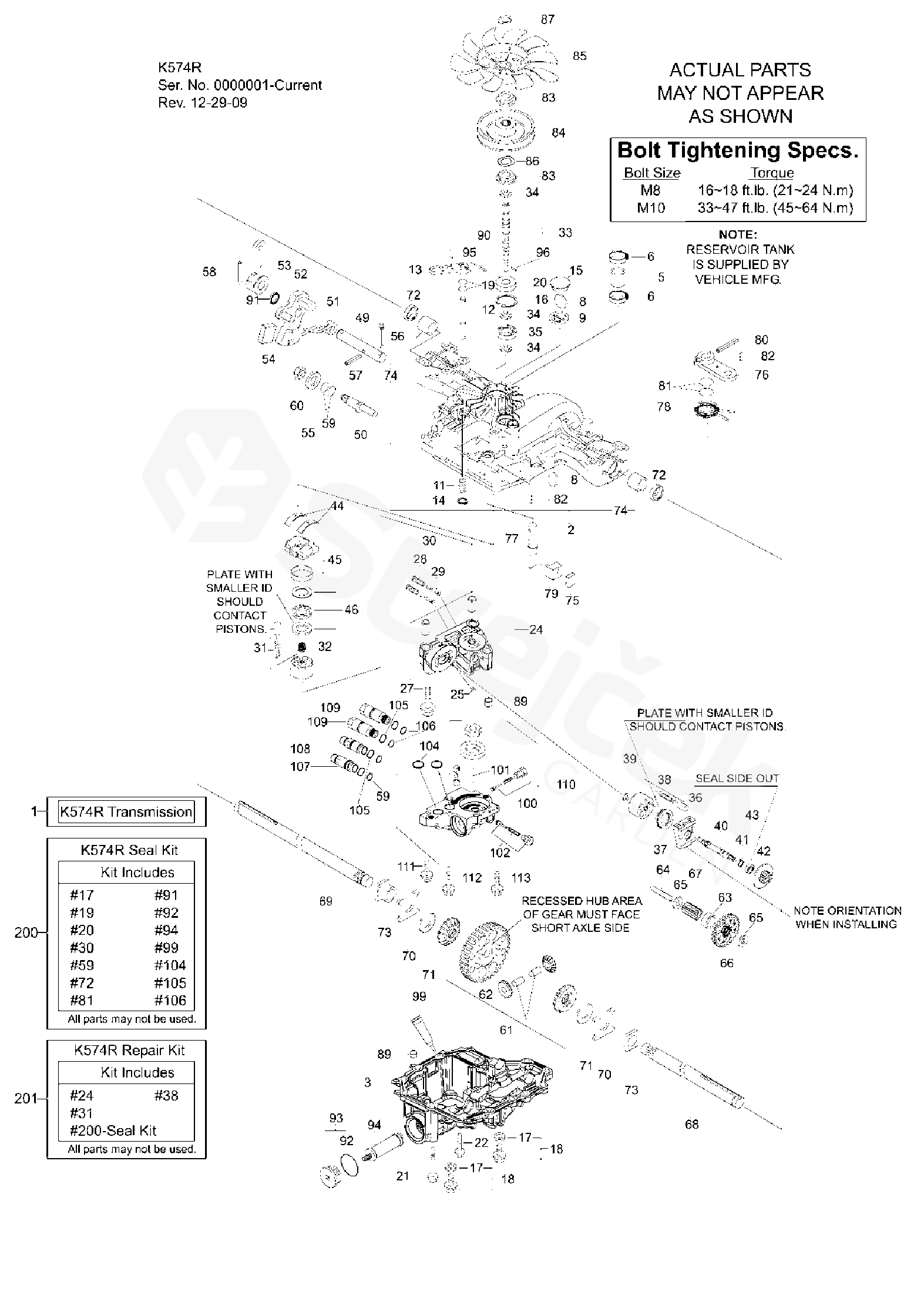

TUFFTORQ K574R, 2012-10

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For K574R, 2012-10

1	TBD K574RA TRANSAXLE K574RA TRANSAXLE	787Q0324210
2	UPPER CASE KIT	502452901
3	CASE	577325701
5	TUBE	502451601
6	HOSE CLAMP	506987001
8	MAGNET	535402829
9	MAGNET HOLDER	502452001
11	SPRING	502460101
12	SHAFT	535402848
13	LEVER	535402817
14	RETAINING RING	535402849
15	PLUG	535402832
16	RETAINING RING	535402850
17	WASHER	506957501
18	BOLT	577325801
19	O-RING	535402815
20	SEALING	506957201
21	BOLT	502852201
22	SCREW	535402828
24	PUMP HOUSING	502852301
25	PIN RETAINING SCREW	535402858
27	BOLT	535402863
28	VALVE	535402860
29	SPRING	535402861
30	FILTER	535402862
31	HOUSING	535402864
32	SPRING	535402869
33	SHAFT	577325901
34	CLIP	535402807
35	BEARING	535402871
36	HOUSING	502852601
37	THRUST (BALL) BEARING	502460001
38	BLOCK	502852701
39	WASHER	535402879
40	MOTOR SHAFT	502451701
41	RETAINING RING	535402881
42	GEAR	535402882
43	BEARING	535402883
44	BEARING	535402884
45	SWASH PLATE COMPLETE	523058801
46	BEARING KIT	523058901
49	CONTROL SHAFT	502452201
50	SHAFT	502853001
51	TORSION SPRING HEAVY	502452101
52	ARM	535414951
53	CONTROL LEVER	502453201
54	PLATE	577326001
55	WASHER	535402813
56	COTTER PIN 1/8" * 3/4"	502452401
57	SPRING PIN 6 * 36	502461801
58	PIN RETAINING SCREW	535414922
59	O-RING	535402814
60	NUT	506956601
61	GEAR	577326101
62	PINION	535414604
63	SLEEVE	535414605
64	SHAFT	535414606
65	WASHER	502460701
66	PINION	535414608
67	FINAL PINION GEAR (10T)	502452701
68	SHAFT	535414610
69	SHAFT	535414611
70	WASHER	535414612
71	RETAINING RING	535414613
72	SEALING	535402837
73	BUSHING	535414614
74	BUSHING	502853301
75	SPACER	535414616
76	LEVER	535402838
77	SHAFT	535414617
78	PLATE	535402891
79	RETAINER	535414618
80	PIN RETAINING SCREW	535402840
81	O-RING	535414619
82	PIN RETAINING SCREW	535402841
83	DISTANCE	506986601
84	PULLEY	506986701
85	FAN	506986801
86	SPRING WASHER	506986501
87	CIRCLIP	735311500
89	PIN RETAINING SCREW	535414905
90	PIN RETAINING SCREW	535402816
91	SEALING	535414904
92	O-RING	574515201
93	KIT	574515101
94	FILTER	535402819
95	PIN RETAINING SCREW	535402833
96	PIN RETAINING SCREW	535414692
99	SEALING	505348701
100	VALVE	577326201
101	3RD CHECK VALVE	502451501
102	VALVE ASSY	502853701
105	O-RING	502462001
106	O-RING	535466503
107	PIPE ASSY	502851601
108	PIPE ASSY	502851701
109	CONNECTOR	577326301
110	PUMP CPL.	577326401
111	BOLT	502854001
112	SCREW	502854101
113	BOLT	502854201
200	SEALING	502851801
