Spare parts > Husqvarna > CHAIN SAWS > 372 XP 372 XP from 2018-04 - > CLUTCH & OIL PUMP
Back to

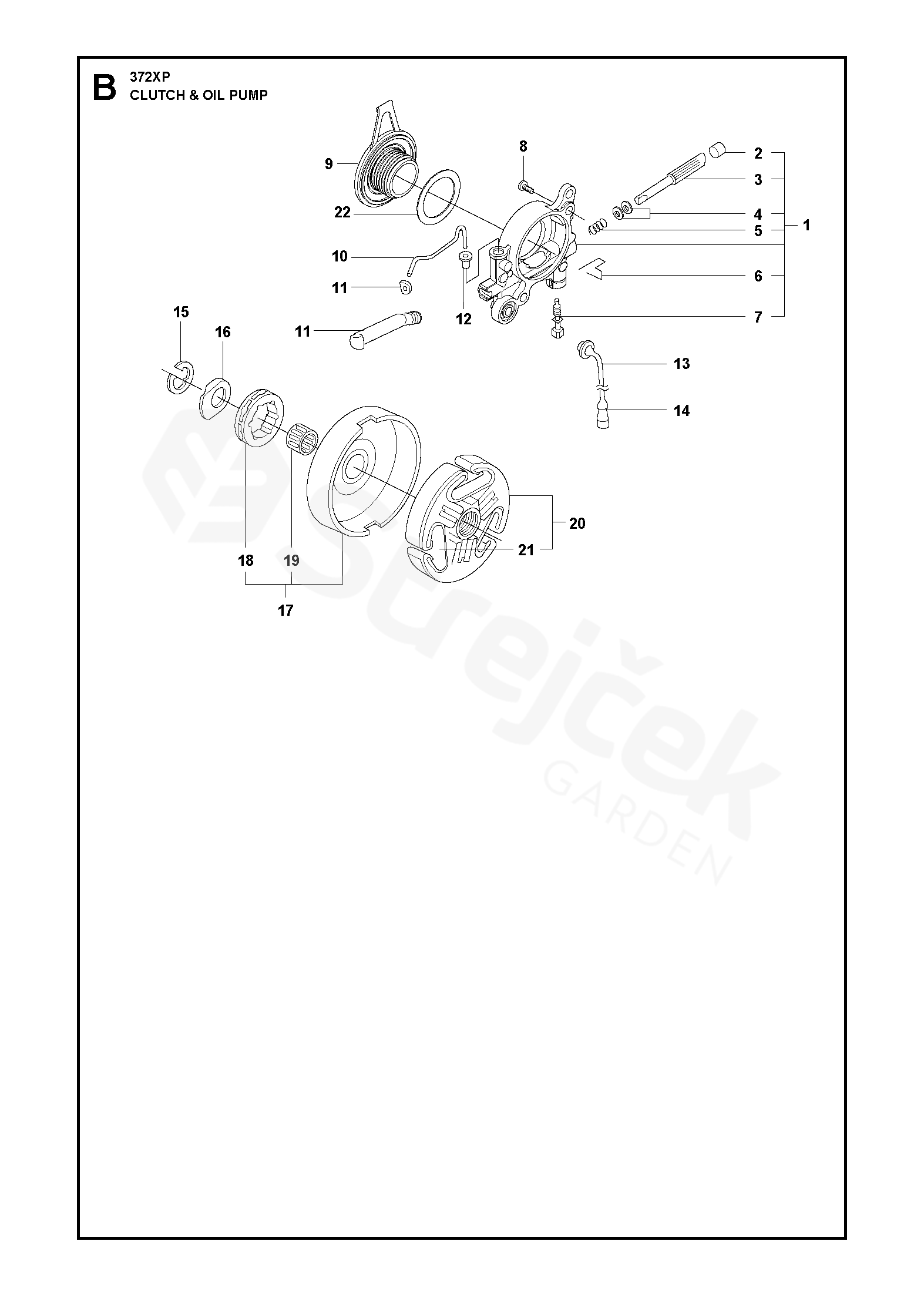

CLUTCH & OIL PUMP
372 XP 372 XP from 2018-04 -
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 372 XP from 2018-04 -
1 OIL PUMP ASSY 503521303
2 SEALING PLUG 503624901
3 PÍST ČERPADLO 503521501
4 PODLOŽKA 503230004
5 PRUŽINA 501615801
6 PRUŽINA 503813001
7 PIN SCREW 503811301
8 SCREW ITXSCM 525824912
9 PUMP PINION 537207807
10 OIL PIPE 503774301
11 INLET PIPE
From serial number 20182100001 		503644701
12 SEALING 504300026
13 OIL HOSE 503426701
14 OIL SCREEN 501544102
15 E-CLIP 503272101
16 PODLOŽKA 503752401
17 CLUTCH DRUM ASSY "3/8""x8T"
"3/8""x8T" 		586980602
18 RÁFEK 3/8 x 8T
"3/8""x8T" 		505303661
19 DRŽÁK JEHLY
"3/8""" 		503432001
20 CLUTCH ASSY 586798401
21 CLUTCH SPRING 537360601
22 WASHER 503230059
