Spare parts > Husqvarna > POWER CUTTERS > K750 K750, Rescue, Air Purge, Oil Guard, 2008-10 > IGNITION SYSTEM
Back to

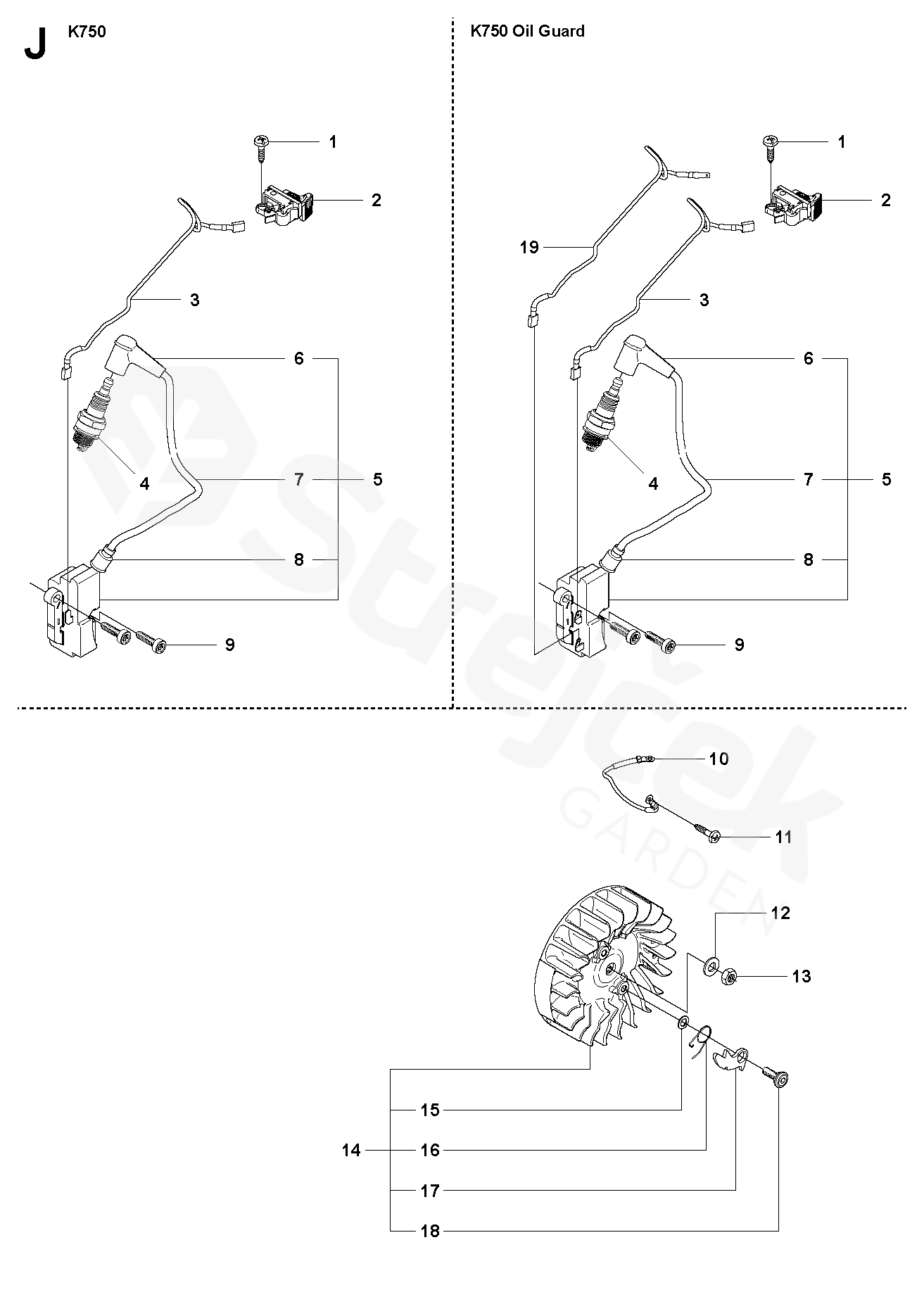

IGNITION SYSTEM
K750 K750, Rescue, Air Purge, Oil Guard, 2008-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K750, Rescue, Air Purge, Oil Guard, 2008-10
1 SCREW CCRPANT 503212810
2 STOP SWITCH 506318602
3 CABLE
Oil Guard 		544979301
4 SPARK PLUG
RCJ 6 Y 		503235109
5 IGNITION MODULE Incl. 6 - 8
Incl. 6 - 8 		510115602
6 BOTKA ZAPALOVACÍ SVÍČKY 501485402
7 IGNITION CABLE 506387834
8 ISOLERHATT 505277516
9 SCREW ITXSCM 503215320
10 CABLE 506378501
11 SCREW CCRPANT 503212810
12 PODLOŽKA 503230101
13 HEXAGON NUT 503221011
14 FLYWHEEL Incl. 14 - 17
Incl. 15 - 18 		506272710
15 PODLOŽKA 503230042
16 PRUŽINA 501634801
17 PAWL 501673203
18 SCREW 501819901
19 CABLE Oil Guard
Oil Guard 		544384901
