Spare parts > Husqvarna > RIDERS > R112 C5 R112 C5, 967178501, 2019-01 > ELECTRICAL
Back to

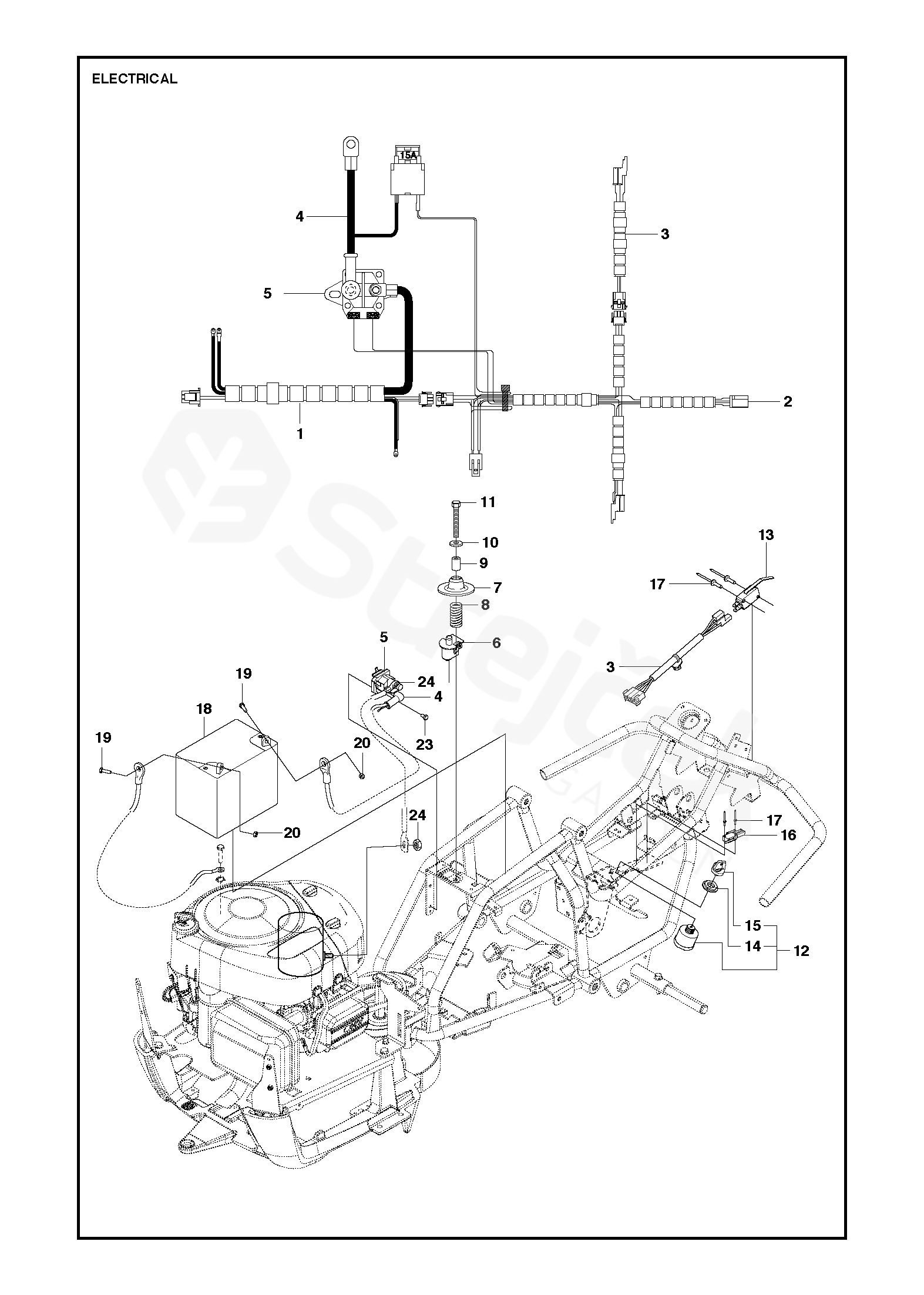

ELECTRICAL
R112 C5 R112 C5, 967178501, 2019-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R112 C5, 967178501, 2019-01
1 WIRING 581972401
2 WIRING 574269501
3 WIRING 574269601
4 CABLE 574269801
5 RELAY 544439801
6 SWITCH 506909601
7 SPRING WASHER 506909701
8 SPRING 544441201
9 SPACING TUBE 506909902
10 PODLOŽKA 734116401
11 SCREW EHHM 725246051
12 IGNITION SWITCH 544442101
13 SWITCH 544415901
14 MATICE 544442301
15 IGNITION KEY 544442401
16 SWITCH 574316101
17 NÝT 544440701
18 BATTERY 574397201
19 SCREW EHHM 522622101
20 NUT 522624301
23 SCREW EHHFT 725236461
24 MATICE 506899801
