Spare parts > Husqvarna > RIDERS > R419TsX AWD R419TsX AWD, 967648301, 2019-01 > ENGINE
Back to

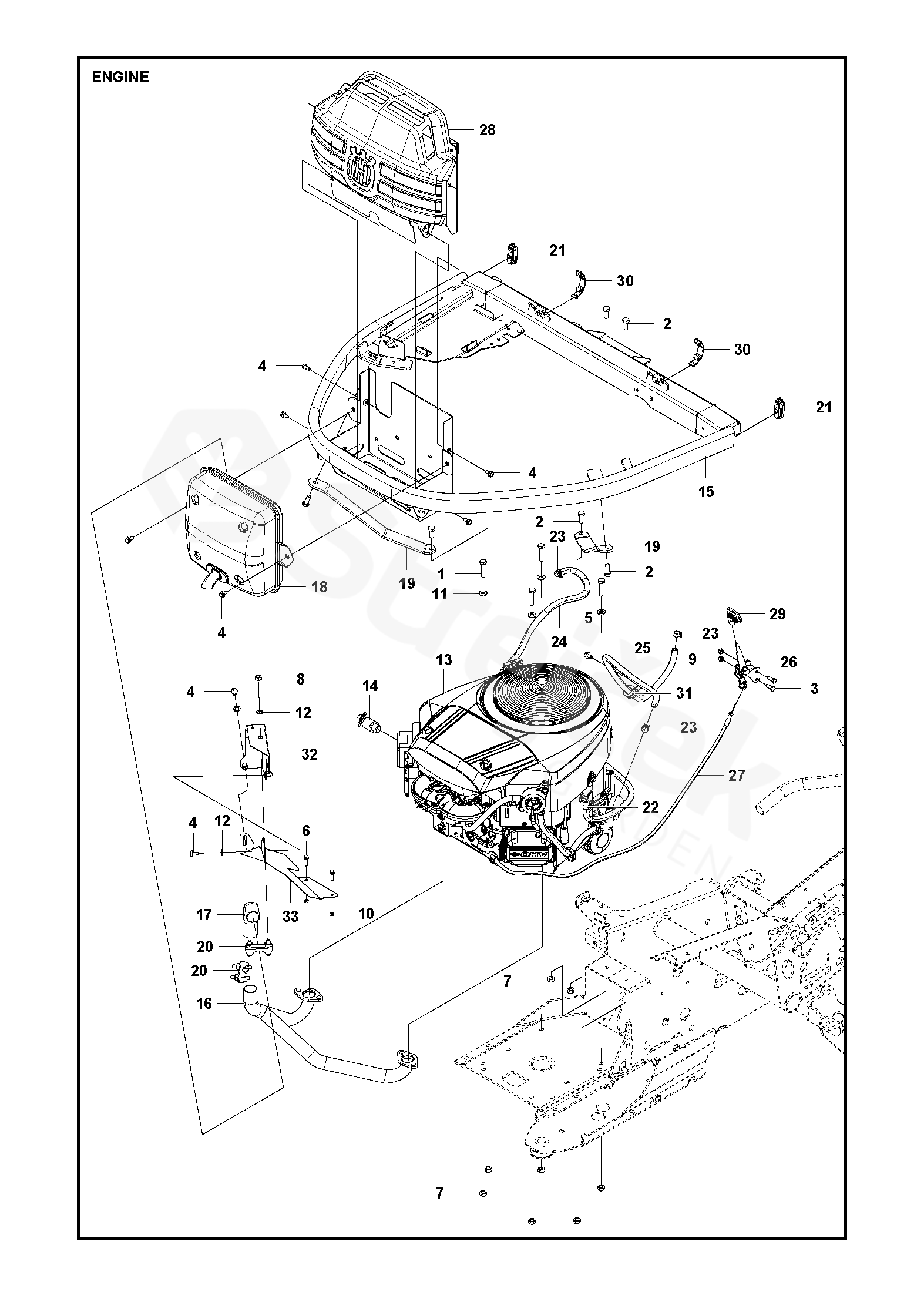

ENGINE
R419TsX AWD R419TsX AWD, 967648301, 2019-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R419TsX AWD, 967648301, 2019-01
1 SCREW 725245751
2 SCREW EHHM 725245171
3 SCREW EHHM 725236871
4 SCREW EHHFM 535475212
5 SCREW EHHFT 725236461
6 SCREW 725233151
7 LOCK NUT 732211801
8 HEXAGON LOCKING NUT 731231801
9 LOCK NUT 732211601
10 LOCK NUT 732211401
11 PODLOŽKA 734116401
12 LOCKWASHER 735216401
13 ENGINE 593231201
14 PLUG 532428287
15 ENGINE FRAME 589973301
16 MANIFOLD 593606701
17 MANIFOLD 593131301
18 MUFFLER 593131201
19 BRACKET 589558902
20 CLAMP ASSY 501152201
21 PLUG 504643601
22 HADICOVÁ SVĚRKA 544282604
23 HOSE BRACE 535469701
24 FUEL HOSE 504800018
25 FUEL HOSE 504800002
26 THROTTLE CONTROL 590431102
27 WIRE 544301706
28 HEAT PROTECTOR 595865501
29 KNOB 592933401
30 SNAP LOCKING 588462803
31 HADICOVÁ SVĚRKA 574531203
