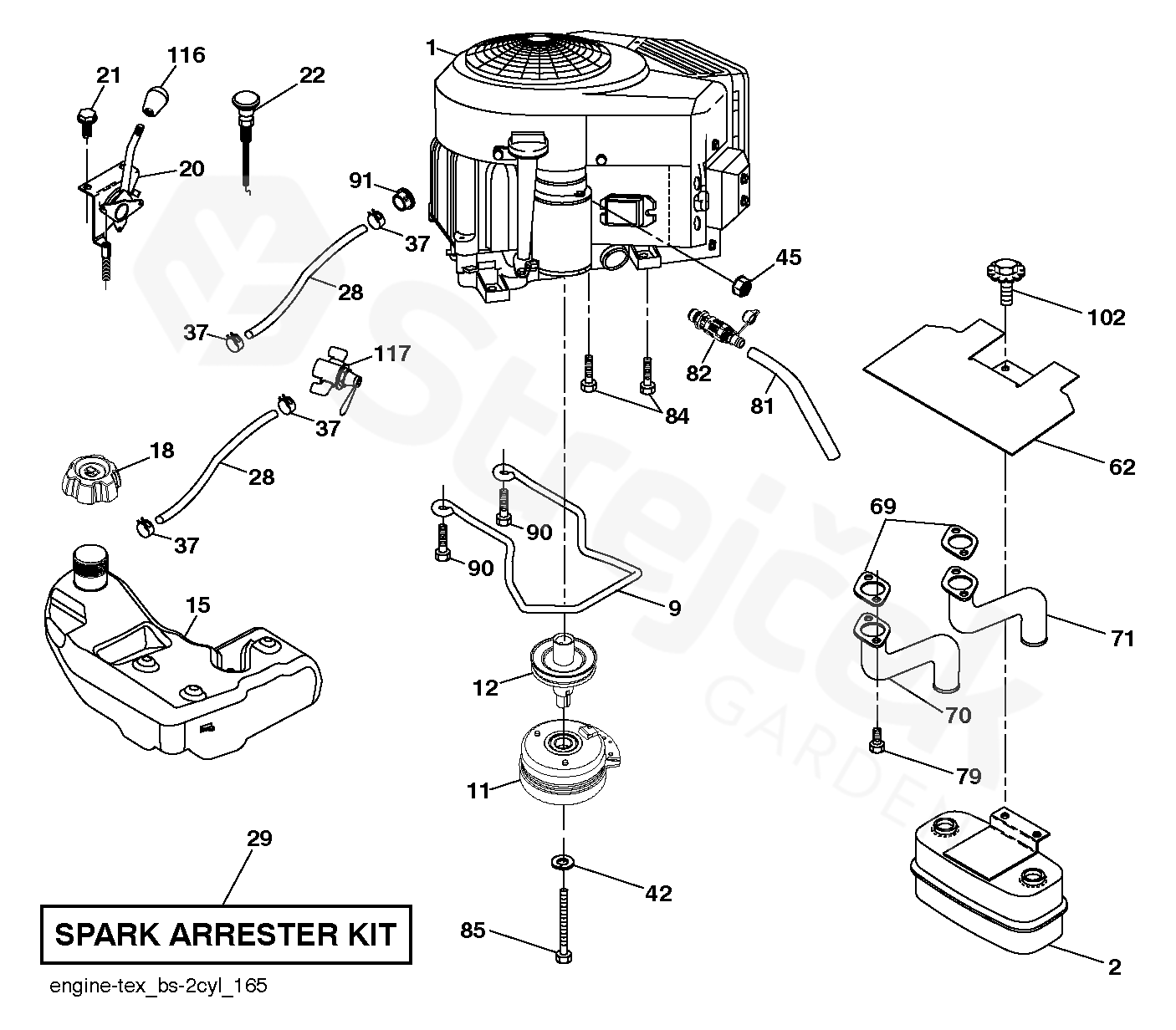

Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > TS 342 TS 342, 96041038601, 2018-12 > ENGINE
Back to
ENGINE
TS 342 TS 342, 96041038601, 2018-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TS 342, 96041038601, 2018-12
1 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
ENGINE B&S MODEL NO. 385777-0007-G1 (588627901) 		000000000
2 MUFFLER 589818701
9 KEEPER 501832601
11 CLUTCH 587255001
12 PULLEY 586899601
15 TANK FUEL 532422804
18 CAP 584248702
20 CONTROL THROTTLE 532424341
21 SCREW 532416358
22 CHOKE CONTROL 532189541
28 HOSE 587044861
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
42 PODLOŽKA 539990247
45 MATICE 873510400
62 SHIELD 532434017
69 GASKET.MUFFLER.#806237 532192442
70 EXHAUST TUBE LH 532191548
71 EXHAUST TUBE RH 532191549
79 SCREW 532192334
81 TRUBKA 532148456
82 PLUG 532428287
84 SCREW 817060620
85 BOLT 501606701
90 SCREW 817000616
91 BUSHING 532187495
102 SCREW 817000512
116 KNOB - SHIFT 539132624
117 VALVE FUEL RESERVE 532420828
