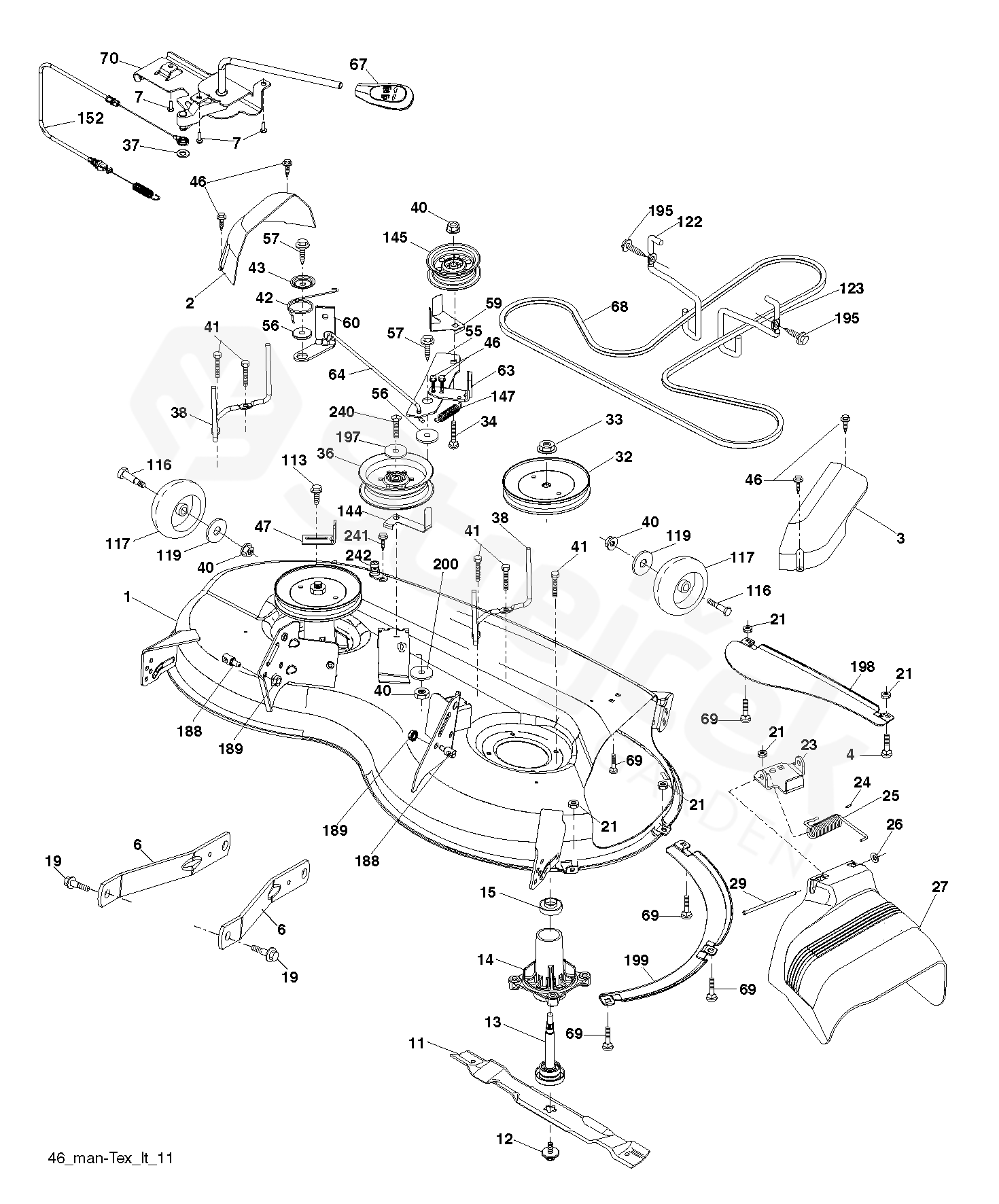

Spare parts - Partlist - YTH2246 YTH2246, 223905, 2017-12 - MOWER DECK / CUTTING DECK

Everything for your machines

YTH2246 YTH2246, 223905, 2017-12

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For YTH2246, 223905, 2017-12

1	KIT.SVC.WELDMNT.46"405SUBS/2	532408486
2	COVER LH	532405506
3	COVER RH	532405507
4	SCREW	539976934
6	ARM	532195186
7	SCREW	532416358
11	RIDE ON BLADE	532405380
12	SCREW	584309301
13	HRÍDEL	587256501
14	BEARING HOUSING	532187281
15	BEARING	585323901
19	BOLT	532196539
21	MATICE	873680500
23	HINGE	532192557
24	HUB CAP	532105304
25	TORSION SPRING	532197026
26	MATICE	532110452
27	DEFLECTOR	532405357
29	HRÍDEL	532131491
32	PULLEY	532197473
33	MATICE	532400234
34	BOLT	872110612
36	PULLEY	532197379
37	PODLOŽKA	819131316
38	KEEPER	589676102
40	MATICE	873900600
41	BOLT	584953901
42	PRUŽINA	532198410
43	PRUŽINA	532197256
46	SCREW	532137729
47	BRACKET	532197250
55	ARM	532197249
56	ROZPĚRKA	532199092
57	SCREW	817000616
59	GUARD 94	532141043
60	ARM LH	532199471
63	ARM	532199477
64	LINKAGE.ASM.BRAKE.RAW SUBS/2	532405138
67	HANDLE	532403012
68	BELT	532405143
69	BOLT	872140505
70	CLUTCH.ASM.MANUAL.YT.PREDATORQ	532199972
113	BOLT	817000510
116	BOLT	532193406
117	WHEEL	589527301
119	PODLOŽKA	819121414
122	BELT GUIDE LH	532197258
123	BELT GUIDE RH	532197259
144	BELT GUIDE	532199204
145	PULLEY	532193197
147	PRUŽINA	532401872
152	CABLE	584243501
188	ŠROUB	532195161
189	MATICE	873900500
195	SCREW	817000612
197	PODLOŽKA	819131312
198	DESKA	532403149
199	DESKA RH	532403150
200	PODLOŽKA	532413524
240	BOLT	874520636
241	SCREW	532152927
242	PORT.WASHOUT	532415598
	COUPLING NOT SHOWN	532416405
