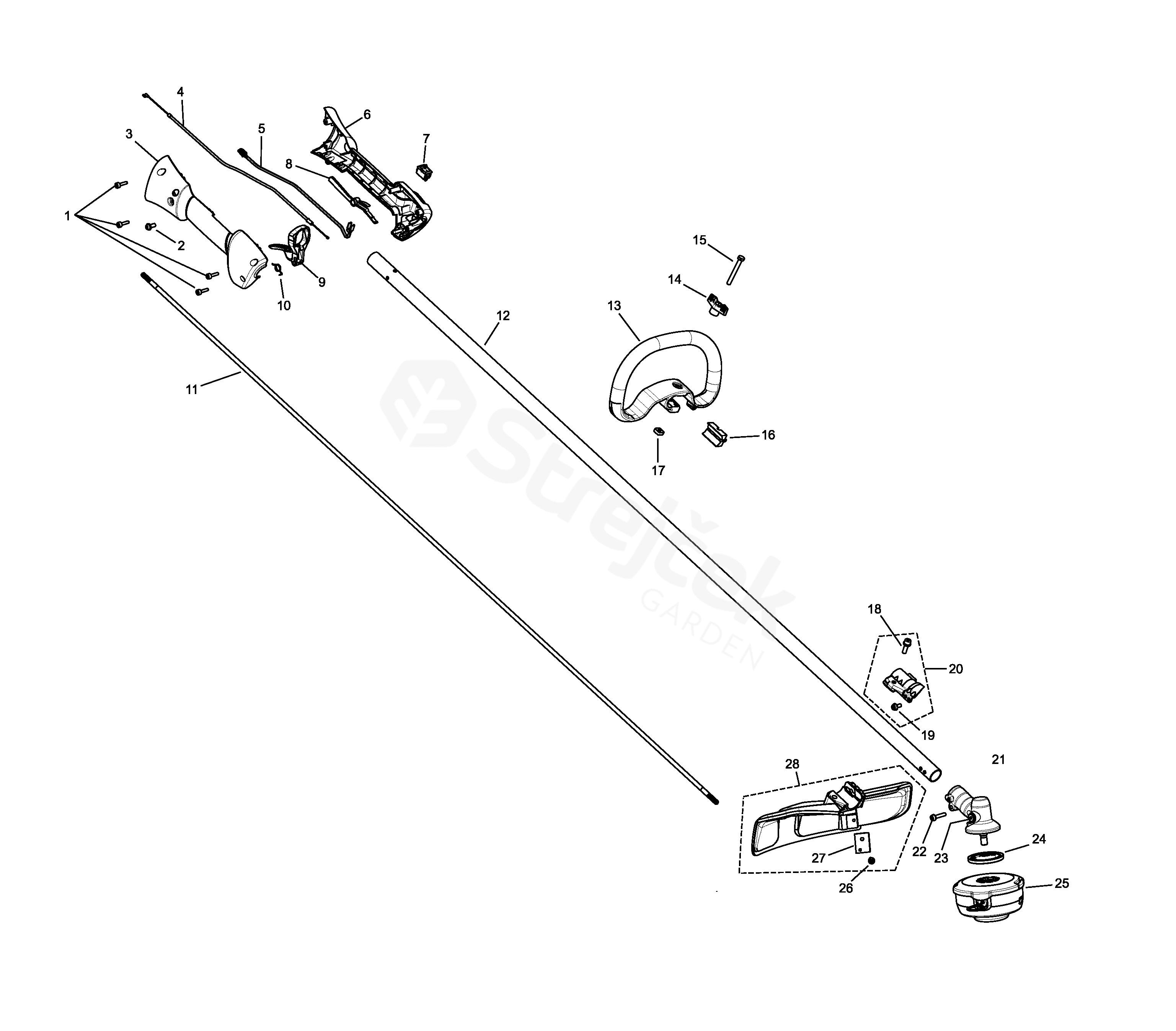

Spare parts - Partlist - 325 L 325 L, 2019-02 - SHAFT & HANDLE

Everything for your machines

325 L 325 L, 2019-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 325 L, 2019-02

1	SCREW ITXSCT SCREW ITXSCT	574444001
2	SCREW ITXPANT SCREW	584294001
3	HOUSING HOUSING	574702101
4	THROTTLE ASSY THROTTLE ASSY WIRE	574489003
5	SHORT CIRCUIT CABLE SHORT CIRCUIT CABLE	584994002
6	HOUSING HOUSING	574702301
7	SWITCH MOMENTARY SWITCH MOMENTARY	545049309
8	PLYN THROTTLE LOCKOUT	574355401
9	PÁČKA TRIGGER	574355301
10	RETURN SPRING RETURN SPRING	530016454
11	DRIVE SHAFT DRIVESHAFT	581110501
12	SERVICE KIT TUBE ASSY (EUROPE)	596024102
13	HANDLE HANDLE LOOP	503871906
14	KNOB KNOB	503879001
15	SCREW EHHM BOLT	725238051
16	DISTANCE HANDLE SPACER	503940301
17	ČTYŘHRANNÁ MATICE NUT M6 SQUARE	502197101
18	BOLT SCREW	523019001
19	BOLT SCREW	574710801
20	CLAMP CLAMP ASSY	581027501
21	BEVEL GEAR GEAR HEAD	537333801
22	SCREW ITXSCFM SCREW ITXSCFM	525755104
23	SCREW IHHM GREASE PLUG	503201501
24	DRIVER ASSY DRIVER DISC	537234901
25	TRIMMER HEAD HEAD TRIMMER T35	578446301
26	SCREW ITXSCFT SCREW ITXSCFT	576275601
27	BLADE BLADE	503798801
28	TRIMMER GUARD ASSY GUARD ASSY TRIMMER	588543701
