Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > Z 560 Z 560, 967929901-00, 2018-08 > MOWER DECK / CUTTING DECK
Back to

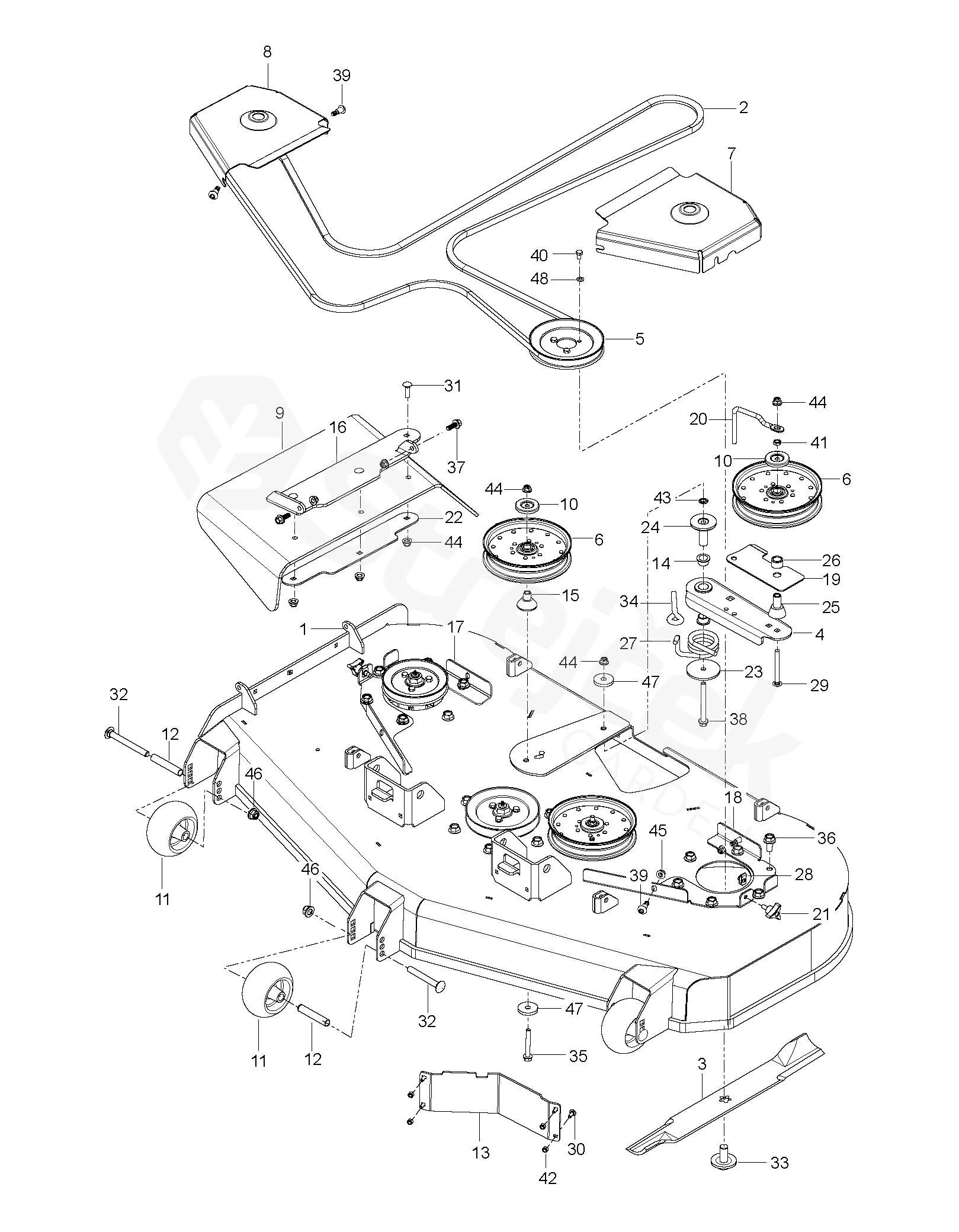

MOWER DECK / CUTTING DECK
Z 560 Z 560, 967929901-00, 2018-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Z 560, 967929901-00, 2018-08
1 CUTTING DECK W/ SFTY DECALS
W/ SFTY DECALS 		591359703
2 BELT 588264801
3 BLADE 539113312
4 ARM 582462702
5 PULLEY - 6.57 539130646
6 PULLEY 510015101
7 PULLEY 582463003
8 PULLEY 582463004
9 CHUTE 582468801
10 KRYT 510254501
11 ROLLER 574169601
12 TRUBKA 574196401
13 BAFFLE 510437502
14 BEARING. FLANGE 539131518
15 BEARING 510263701
16 BRACKET 582467302
17 BRACKET 582463207
18 BRACKET 582463208
19 BELT GUIDE 594913302
20 HLÍDAČ 582470201
21 KNOB 539104411
22 DESKA 590523702
23 DESKA 582466401
24 HRÍDEL 582468101
25 ROZPĚRKA 582468301
26 ROZPĚRKA 589455201
27 PRUŽINA 582468001
28 CLIP 539104763
29 BOLT 872140628
30 * BOLZEN 539115620
31 BOLT 872140610
32 SCREW 510022301
33 SCREW 539119007
34 EYEBOLT 574202001
35 BOLT 874490644
36 HHFS 574210601
37 HHFS 525612801
38 HHFS 521996601
39 SCREW 582476401
40 HCS 539130315
41 NUT 3/8-16 HEX JAM ZD 539109332
42 MATICE 539976978
43 BOLT RETAINER 3/8 539913847
44 MATICE 521996501
45 BOLT RETAINER 3/8 539112899
46 MATICE 521991101
47 PODLOŽKA 539106504
48 WASH 5/16 DISC SPRING ZD 539109600
