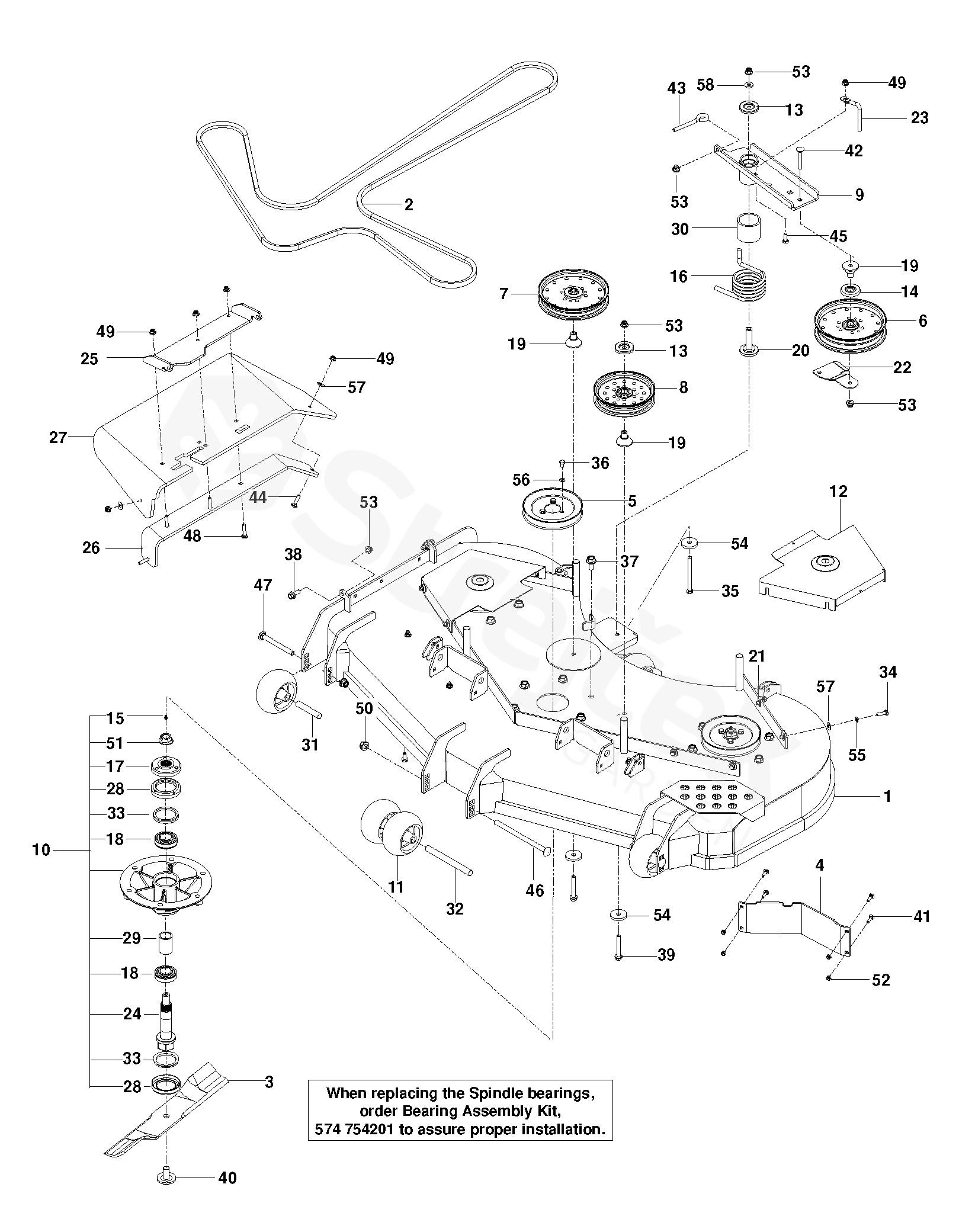

CUTTING DECK ZERO TURNS FD60 PZ, 966555302, 2013-08

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FD60 PZ, 966555302, 2013-08

1	DECK w/ SAFETY DECALS w/ SAFETY DECALS	574497201
2	BELT	575658403
3	BLADE	539105711
4	BAFFLE	510437502
5	PULLEY - 6.57	539130646
6	PULLEY	510015101
7	PULLEY	525598201
8	PULLEY	510019601
9	ASSEMBLY	574722201
10	SPINDLE	525836401
11	ROLLER	574169601
12	SHIELD	510131202
13	KRYT	510254501
14	SHIELD	510262201
15	NIPPLE	539976998
16	SPRING	525310901
17	HUB	539130637
18	BEARING	539130638
19	BEARING	510263701
20	BEARING	522729701
21	CLIP	539104763
22	GUIDE	574262102
23	KEEPER	574262201
24	SHAFT	525836001
25	BRACKET	574197002
26	BRACKET	525486002
27	CHUTE	525485801
28	CUP	539130643
29	SPACER - BEARING	539130641
30	SPACER	525465601
31	TRUBKA	574196401
32	TRUBKA	574196501
33	V-RING. 55MM	539130639
34	SCREW	539990209
35	SCREW	539101686
36	HCS	539130315
37	HHFS	574210601
38	HHFS	525612801
39	HHFS 3/8-16 X 2 3/4	539131781
40	SCREW	539119007
41	* BOLZEN	539115620
42	SCREW	539128101
43	EYEBOLT	574202001
44	SCREW	539100472
45	SCREW	539107271
46	RHSNB	510022401
47	SCREW	510022301
48	RHSNB 5/16-18 X 1-1/2 GR 5 ZD	539102933
49	BOLT RETAINER 3/8	539112899
50	MATICE	521991101
51	NUT - FLANGE 3/4-16	539130653
52	MATICE	539976978
53	MATICE	521996501
54	PODLOŽKA	539106504
55	PODLOŽKA	539990187
56	WASH 5/16 DISC SPRING ZD	539109600
57	PODLOŽKA	539990692
58	NUT, 5/16-18, NYLOC	522023401
	KIT NOT SHOWN	574754201
