Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
ACCESSORIES FOR RIDE-ON
>
SNOW BLOWERS/THROWERS SNOW THROWER LST42F 42", 967343901, 2019-01
>
DRIVE
Back to
SNOW BLOWERS/THROWERS

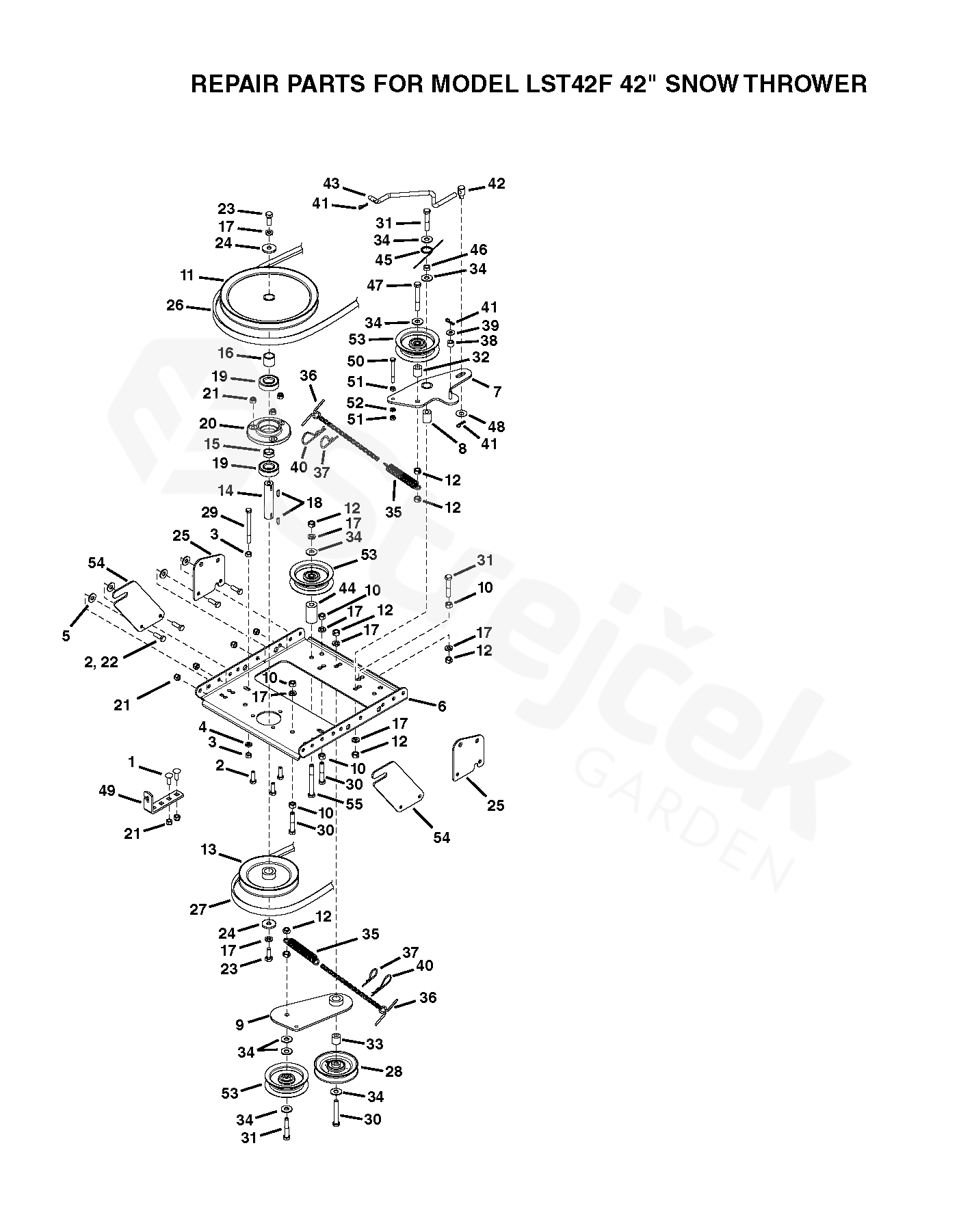

SNOW THROWER LST42F 42", 967343901, 2019-01
DRIVE
SNOW BLOWERS/THROWERS
SNOW THROWER LST42F 42", 967343901, 2019-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SNOW THROWER LST42F 42", 967343901, 2019-01
1
BOLT
Carriage Bolt, 5/16-18 x 3/4"
522756301
2
BOLT
Hex Bolt, 5/16-18 x 1"
531007426
3
NUT
Hex Nut, 5/16-18
522758701
4
LOCKWASHER
Lock Washer, 5/16"
522758601
5
WASHER
Washer, 5/16" Std. Wrt."
522770301
7
IDLER ARM
Idler Arm Assembly
501344801
8
SPACER
Spacer, Pivot
501344901
9
IDLER BRACKET
Idler Bracket Assembly
501345001
10
NUT
Hex Nut, 3/8-16
531004664
11
PULLEY
Pulley, V Type 9"
501345101
12
NUT
Nut, Hex Lock, 3/8-16
501345201
13
PULLEY
Pulley, V Type 5-1/2"
584245301
14
SHAFT
Shaft
597376901
17
LOCKWASHER
Lock Washer, 3/8"
577157101
18
KEY
Key
597376801
19
BEARING
Bearing, Ball
597376301
20
HOUSING
Housing, Bearing
597376701
21
NUT
Hex Nut, 5/16-18 Nylock
501332601
22
BOLT
Hex Bolt, 5/16-18 x 3/4"
522759901
23
BOLT
Hex Bolt, 3/8-24 x 1"
531007625
26
BELT
Belt, V Type Drive (56")"
501346201
27
BELT
Belt, V Type Auger
597376501
28
PULLEY
Pulley, V Type 4"
501340001
29
BOLT
Hex Bolt, 5/16-18 x 3-1/2"
501346401
30
SCREW
Hex Bolt, 3/8-16 x 2-1/2"
531008114
31
BOLT
Hex Bolt, 3/8-16 x 2"
531002732
32
SPACER
Spacer
501346501
33
SPACER
Spacer, Pivot
501346601
35
SPRING
Spring
501346701
36
CHAIN
Chain
501346801
37
HAIR PIN COTTER
Pin, Hair Cotter, 3/32"
522755701
38
SPACER
Spacer
501346901
39
WASHER
Washer, 1/4"
522835901
40
HAIR PIN COTTER
Pin, Hair Cotter #4 (1/8")"
522752001
41
HAIR PIN COTTER
Pin, Hair Cotter 5/64"
522835801
43
ROD
Rod, Engagement
501347201
44
SPACER
Spacer
501348201
45
SPRING
Spring, Torsion
501347401
46
BUSHING
Spacer
531004640
47
BOLT
Hex Bolt, 3/8-16 x 2-3/4" Lg."
501347501
48
WASHER
Washer, Flat 3/8"
501347601
49
BRACKET
Cable Bracket
501347701
50
BOLT
Hex Bolt, 1/4-20 x 2-1/2"
501347801
52
LOCKWASHER
Lock Washer, 1/4"
577161801
53
PULLEY
Pulley, Flat 3-5/8"
501347901
54
BRACKET
Rear Pulley Frame Bracket
501348001
55
BOLT
Hex Bolt, 3/8-16 x 3-1/4"
501348101
