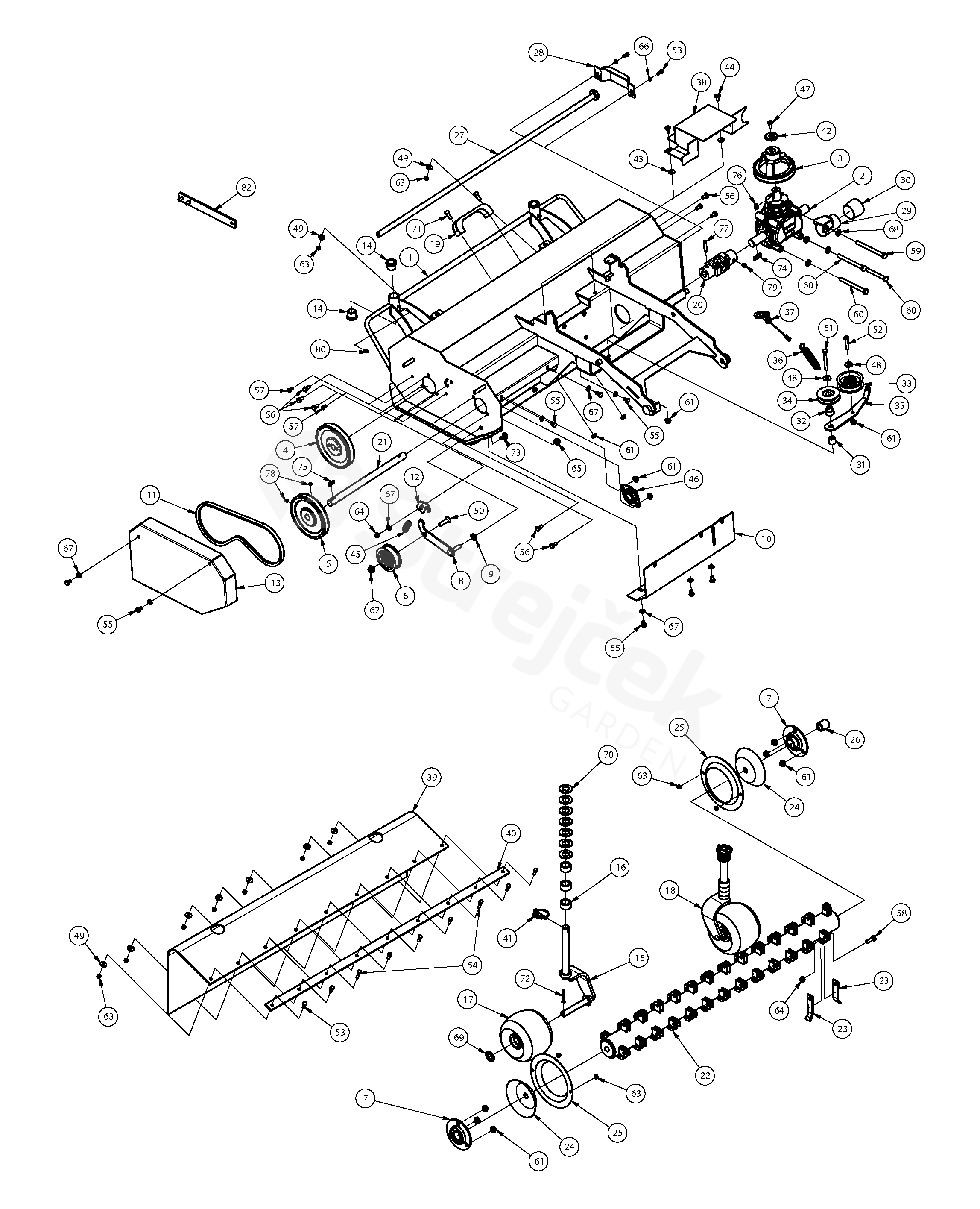

FLAIL MOWERS FLAIL MOWER T-60368, 2018-12

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FLAIL MOWER T-60368, 2018-12

1	FRAME Frame	597351101
2	GEARBOX	535466610
3	PULLEY	576492301
4	PULLEY SPA 144-1	576488901
5	PULLEY	535415061
6	PULLEY	576491601
7	BEARING	576489601
8	ARM	576488801
9	COLLAR	535466663
10	GUARD	597350001
11	BELT V-Belt	575879701
12	WELDMENT	576488701
13	GUARD Belt Guard	597350101
14	BUSHING Bearing, Plastic	535415082
15	WELDMENT	576490101
16	COLLAR	576491401
17	KOLO KOMPL. Support Wheel	506963001
18	WELDMENT	576490201
19	GRIP	576907601
20	LINK Universal Joint	535415025
21	DRIVE SHAFT	576489501
22	SHAFT Shaft with flails assy	576492401
23	BLADE Flail, Flail Mower	535415063
24	PROTECTOR	535415067
25	PLATE Guard	535415068
26	SPACER	535415065
27	SCREW Special	576489701
28	HAND GUARD	535415072
29	GUARD Shaft	576489901
30	DUST COVER	576490001
31	COLLAR	593857401
32	HUB	588820001
33	PULLEY	539919078
34	PULLEY ASSY	544004601
35	BELT TENSIONER	588819801
36	PRUŽINA	504622401
37	HANDLE ASSY	504622103
38	TBD Guard	597350201
39	RUBBER	576492101
40	REINFORCEMENT strap	576492201
41	PIN RETAINING SCREW	531005217
42	WASHER	535466626
43	WASHER	506559701
44	SCREW Special	506982601
45	SPRING	535415057
46	BEARING	531005181
47	SCREW IHCSFM	725645301
48	WASHER	597350301
49	WASHER	531021197
50	SCREW	578853901
51	SCREW	531021295
52	SCREW	593857501
53	SCREW	535415036
54	SCREW	576491801
55	SCREW	531021144
56	SCREW	531021146
57	SCREW	531021196
58	SCREW	531021199
59	SCREW	535415043
60	SCREW	535415089
61	NUT LOCKING Tensilock	576919601
62	NUT Special	578854001
63	NUT Lock	531021198
64	NUT Lock	531021219
65	NUT Lock	531021130
66	WASHER	535415011
67	WASHER	531021184
68	WASHER	531021137
69	WASHER	535415031
70	WASHER	531005225
71	SOCKET Hex Socket Cap Screw	576919501
72	SPLIT PIN	535415083
73	SCREW Lock	535415043
74	KEY	535415028
75	KEY	531005220
76	KEY	535466627
77	PIN RETAINING SCREW	531021170
78	SCREW Set Screw	531021169
79	SCREW Set Screw	535415029
80	NIPPLE Crease	535415086
82	KEY Key	535466667
