Spare parts > Jonsered > LAWN MOWERS: CONSUMER WALK-BEHINDS > LM2256 LM 2256 CMDAH AWD, 96791440100, 2018-08 > DRIVE
Back to

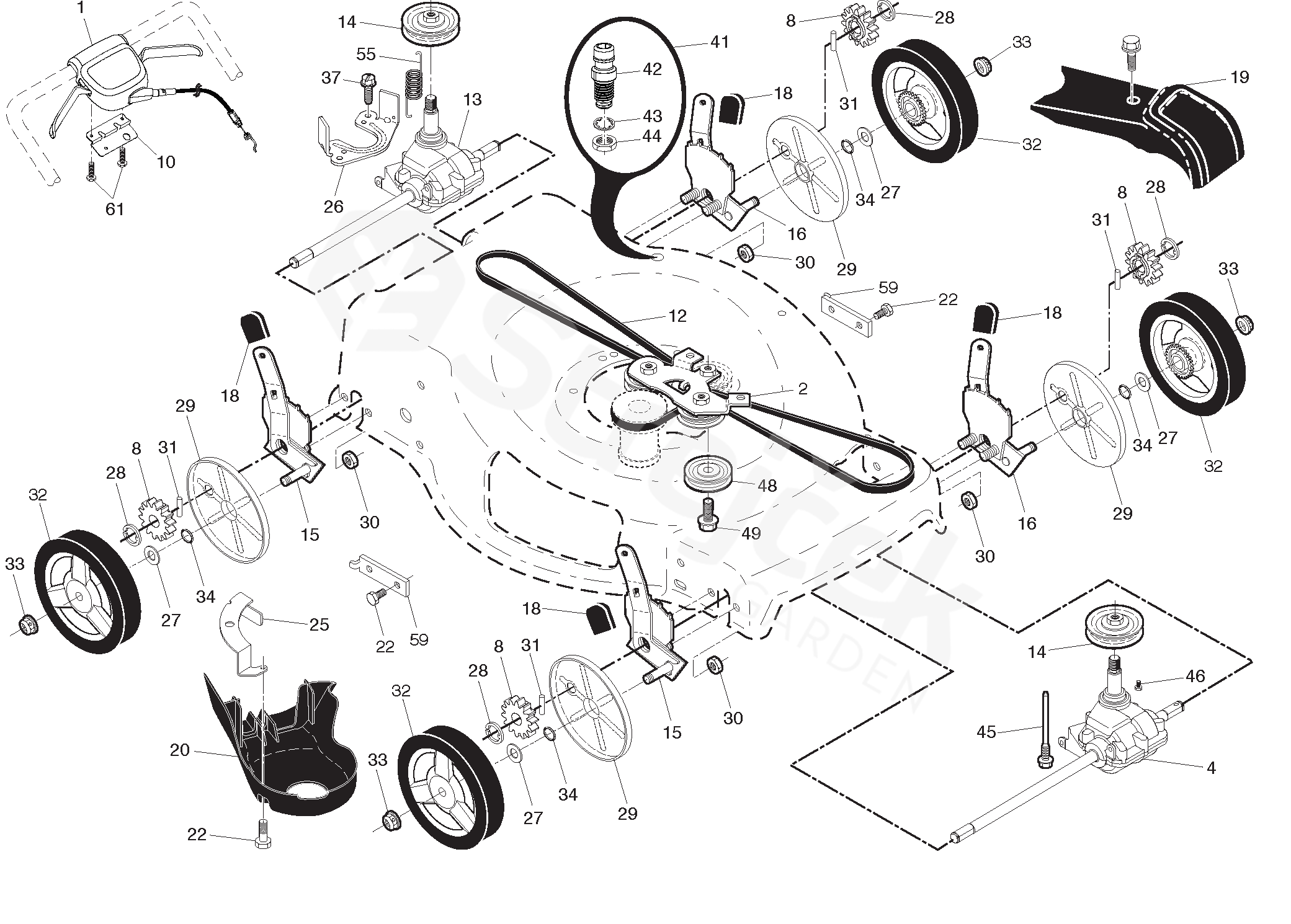

DRIVE
LM2256 LM 2256 CMDAH AWD, 96791440100, 2018-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LM 2256 CMDAH AWD, 96791440100, 2018-08
1 DRIVE CABLE 589818807
2 BRACKET 586072802
4 TRANSMISSION 589599201
8 PINION 532404835
10 BACKPLATE 587249302
12 BELT 580364610
13 TRANSMISSION 581680801
14 PULLEY 586963001
15 ADJUSTER
RH 		581497908
16 ADJUSTER
LH 		581497907
18 KNOB 532701037
19 COVER Includes Mounting Screw & Pushnut 587997901
20 BELT COVER 580806901
22 BOLT 817000510
25 BRACKET 532426065
26 BRACKET 581152502
27 PODLOŽKA 532067725
28 E-CLIP 812000058
29 DUST COVER 581840401
30 NUT 532438130
31 PAWL, DRIVE 532404845
32 WHEEL 581685301
33 MATICE 532409148
34 O-KROUŽEK 532197480
37 SCREW 532163409
41 KIT 532438489
42 PORT 532434994
43 LOCKWASHER 532415585
44 LOCKING NUT 532415586
45 SCREW 587438201
46 SCREW EHHFT 584299401
48 PULLEY 587973001
49 BOLT 581334501
55 SPRING 581351301
59 BRACKET 532442113
61 SCREW 532181698
