Spare parts > Jonsered > TRACTORS/RIDE MOWERS > LT 2317 CMA LT2317 CMA, 96051002105, 2018-07 > ENGINE
Back to

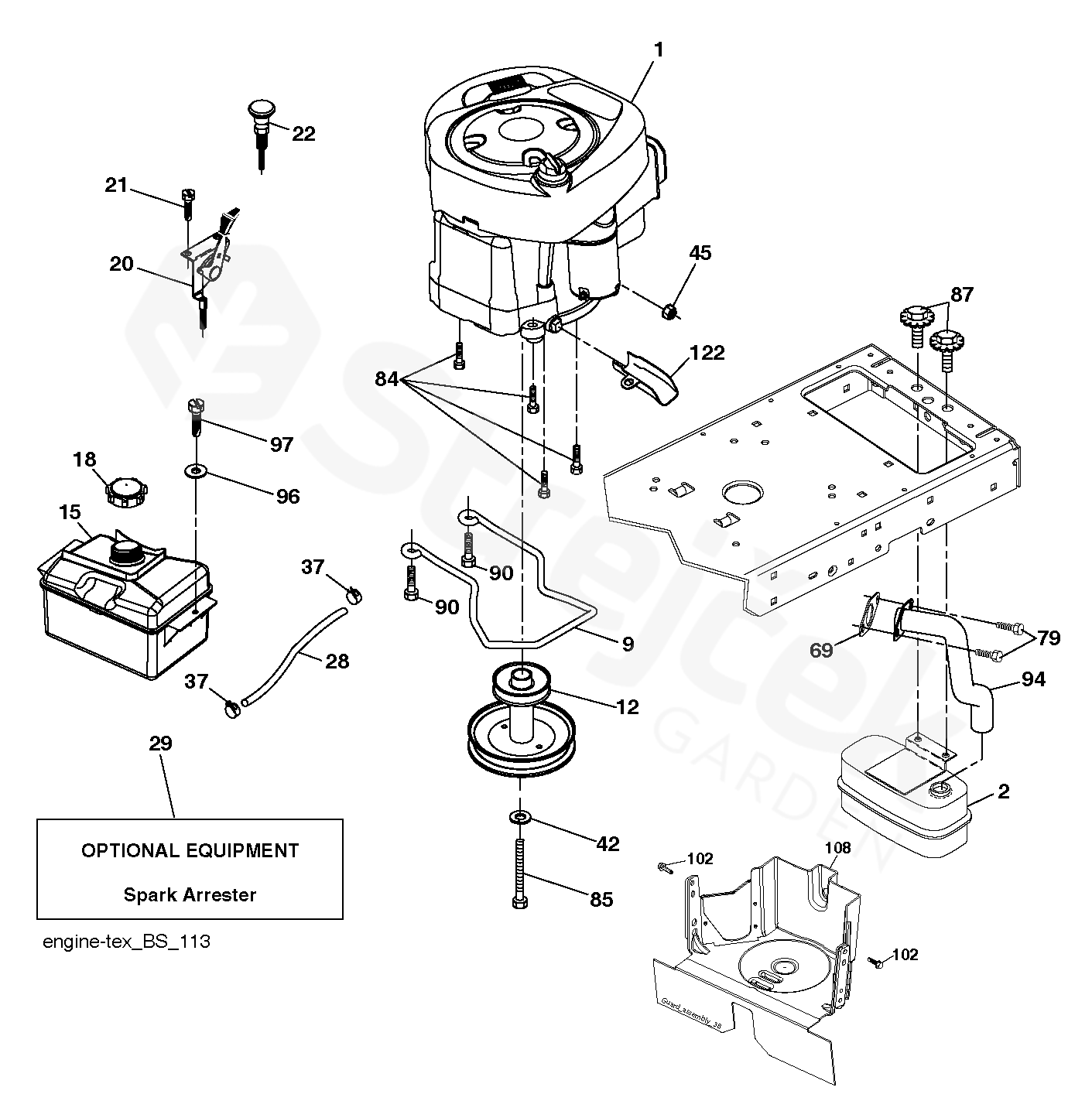

ENGINE
LT 2317 CMA LT2317 CMA, 96051002105, 2018-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LT2317 CMA, 96051002105, 2018-07
1 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
B&S 31R677-0002-B1 (585688401) 		000000000
2 MUFFLER EXHAUST 532188655
9 KEEPER 501832602
12 PULLEY 586478501
15 TANK 581289901
18 HUB CAP 532430220
20 CONTROL 532183897
21 SCREW 532416358
22 CONTROL 532194981
28 HADICE 532137040
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
42 PODLOŽKA 539990247
45 MATICE 873510400
69 GASKET 532165291
79 SCREW 532192334
84 SCREW 817060620
85 BOLT 501606501
87 BOLT 532171877
90 SCREW 817000616
94 TUBE 581880901
96 PODLOŽKA 819091416
97 SCREW 817670412
102 SCREW 817060516
108 COVER 587179510
122 EXTENSION PIPE 532421922
