Spare parts > McCULLOCH > CHAIN SAWS > CS35S CS35S, 967624714, 967624715, 2016-08 > REAR HANDLE
Back to

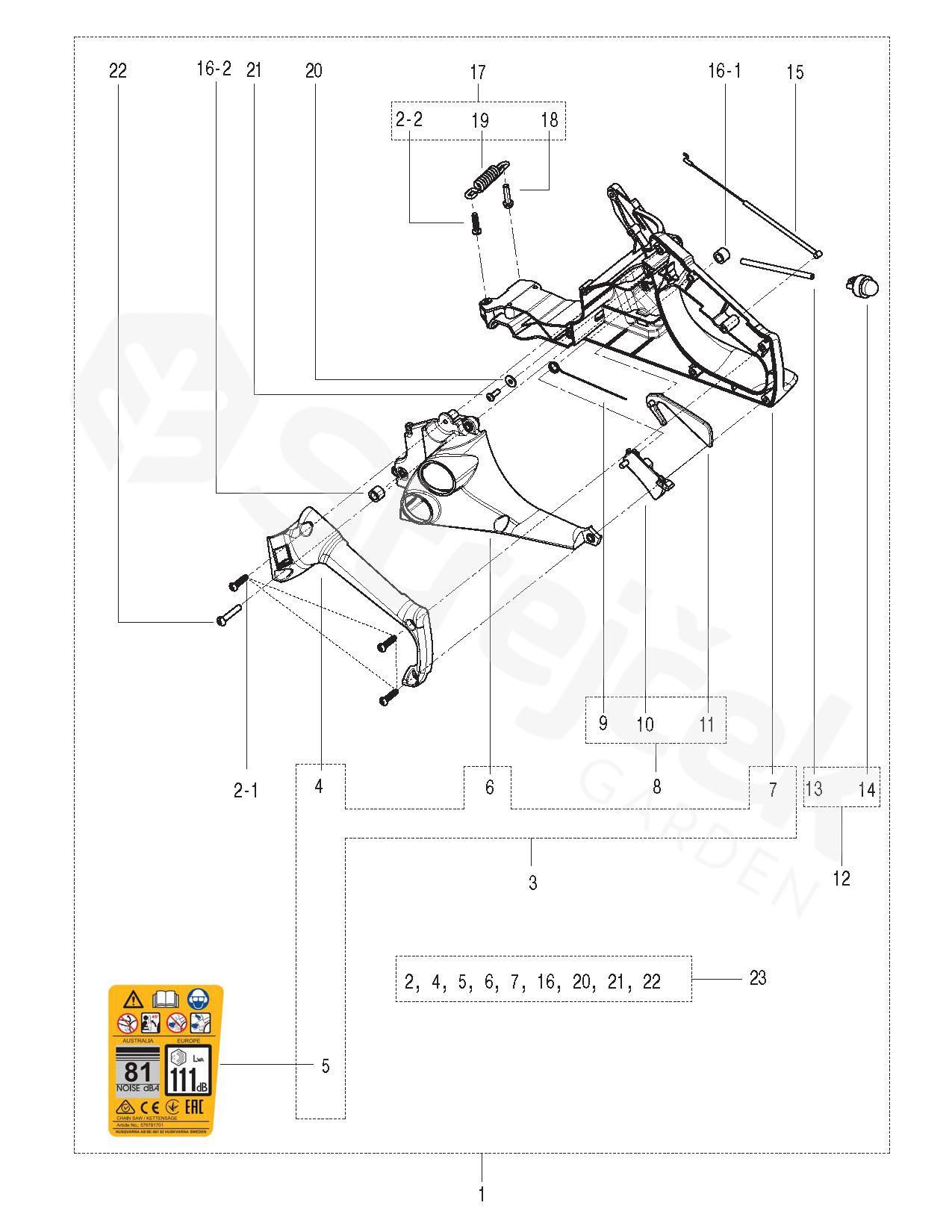

REAR HANDLE
CS35S CS35S, 967624714, 967624715, 2016-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CS35S, 967624714, 967624715, 2016-08
1 REAR HANDLE ASSY
Rear handle assy kit 		582840801
3 REAR HANDLE ASSY
Rear handle assy 		582841101
4 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Handle half 		000000000
5 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Warning decal 		000000000
6 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Rear handle left 		000000000
7 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Rear handle right 		000000000
8 TRIGGER
Trigger assy 		582841201
9 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Spring 		000000000
10 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Trigger 		000000000
11 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Throttle lock 		000000000
12 PURGE incl 13-14
Fuel purge assy 		582630901
13 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Fuel hose 		000000000
14 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Fuel purge 		000000000
15 LANKO PLYNU
Throttle cable 		574226701
16 GROMMET
Grommet 		574732901
17 ISOLATOR SPRING
Isolation spring assy 		582841401
18 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Screw 		000000000
19 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Spring 		000000000
20 PODLOŽKA
Washer 		734113741
21 SCREW
Screw 		574226502
22 SCREW
Screw 		574223902
23 REAR HANDLE ASSY
Rear handle assy & screws 		582841501
2.1 SCREW
Screw 		574223901
2.2 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Screw 		000000000
