McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
M56-150F M56-150F, 96764820101, 2018-11
>

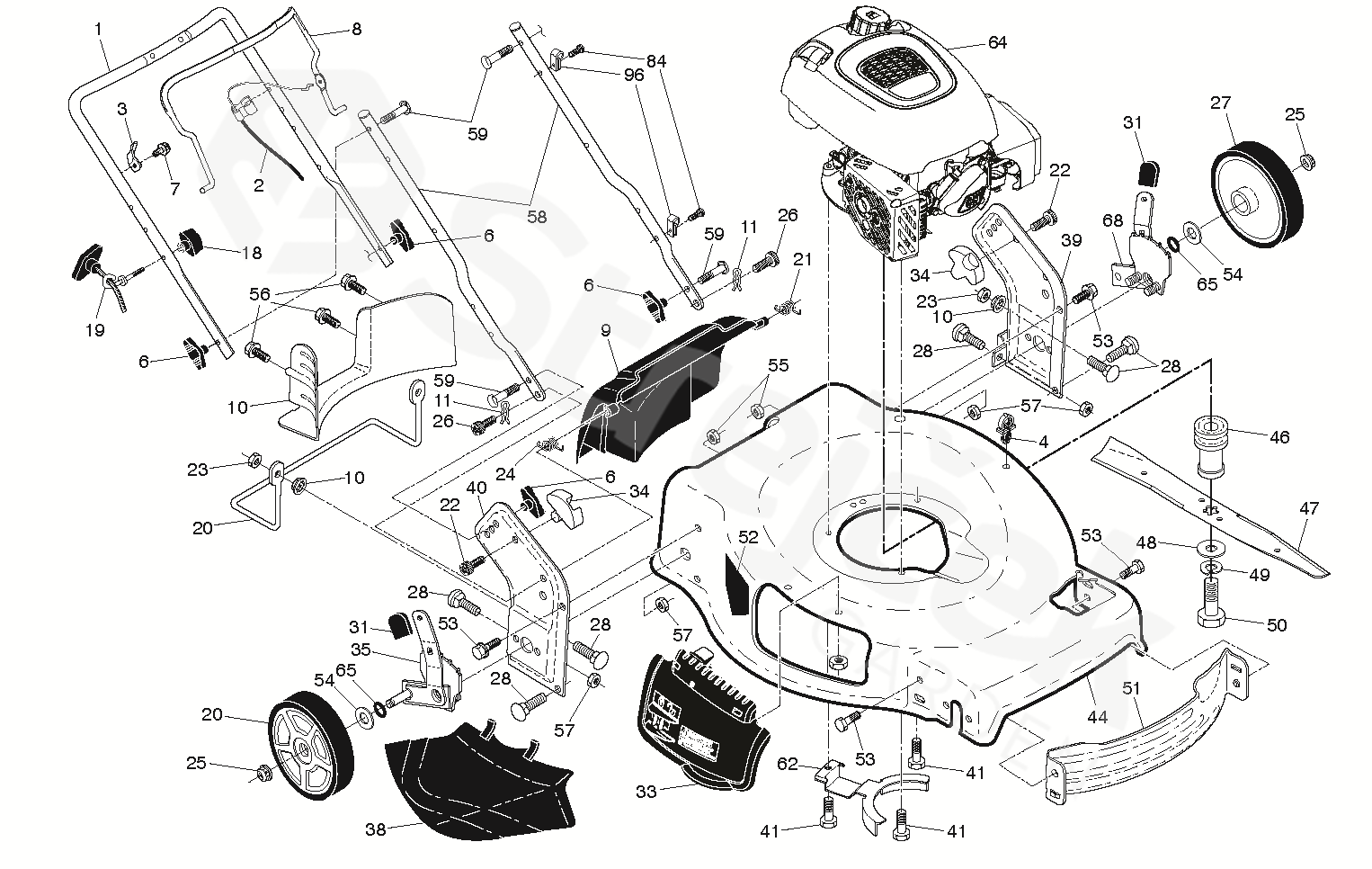

FRAME
Back to
M56-150F
M56-150F, 96764820101, 2018-11
FRAME
M56-150F
M56-150F, 96764820101, 2018-11
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M56-150F, 96764820101, 2018-11
1
HANDLE
585864805
2
STOP CABLE
532420939
3
BRACKET
532430034
4
CLIP
532145006
6
KNOB
532191938
7
SCREW
532178848
8
BAIL
583872401
9
DOOR ASY
532426300
10
WASHER
532423063
11
HAIR PIN COTTER
532425575
17
BAFFLE
593295901
18
KNOB
581912601
19
GUIDE
581902101
20
GUARD
532422467
21
SPRING
532419949
22
SCREW
532141841
23
MATICE
873970500
24
SPRING
532419948
25
MATICE
532409148
26
SCREW
532419945
27
WHEEL & TIRE ASSEMBLY
532197985
28
BOLT
586212501
31
KNOB
532701037
33
MULCH DOOR
532432642
34
BRACKET
532438134
35
ADJUSTER
532431139
38
DEFLECTOR
532426129
39
BRACKET
585900702
40
BRACKET
585900802
41
BOLT
532150406
44
HOUSING
532431829
46
ADAPTER
581352401
47
BLADE
586179801
48
PODLOŽKA
532851074
49
PODLOŽKA
532850263
50
SCREW
532851084
51
BAFFLE
532430599
52
DECAL
532182166
53
BOLT
817000510
54
PODLOŽKA
532088348
55
MATICE
532191730
56
SCREW
817411312
57
MATICE
532155377
58
HANDLEBAR ASSY
593270404
59
HANDLE BOLT
532191574
62
BRACKET
532435059
64
ENGINE
RATO RV150 10100-Z180710 FOR SERVICE & PARTS 1-800-487-5951
588843511
65
O-KROUŽEK
532197480
68
ADJUSTER
532431138
84
FASTENER
532428124
96
CLIP
532197991
BAG
NOT SHOWN
532423849
