Spare parts > Husqvarna > Cultivators > T860 RS T860 RS, T860 HX, 54431420, 2005-12 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE
T860 RS T860 RS, T860 HX, 54431420, 2005-12

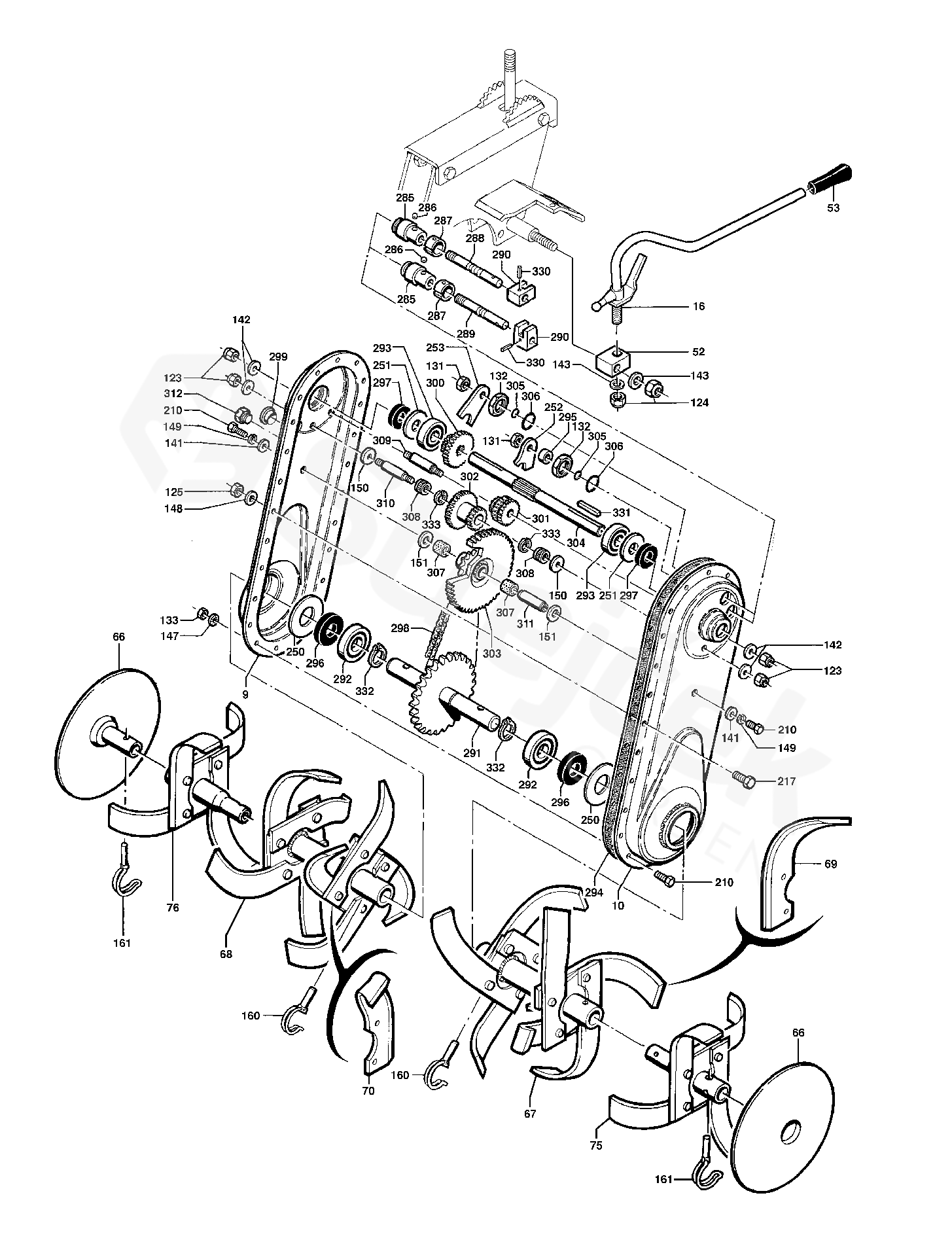

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For T860 RS, T860 HX, 54431420, 2005-12
9 1/2 CARTER DROIT 14003002 519653248
10 1/2 CARTER GAUCHE 14003012 519653249
16 LEVER 544309401
52 SUPPORT 544310201
53 HANDLE 544310301
66 COVER 519653362
67 BLADE 544310901
68 BLADE 544311001
69 BLADE 531008547
70 BLADE 531008548
75 TINE 531008522
76 TINE 531008523
123 NUT 519653458
124 SCREW EHHM 725255051
125 NUT 519653456
131 NUT 519653152
132 NUT 519653153
141 WASHER 519653450
142 HEXAGON NUT 734117201
143 WASHER 519653453
147 WASHER 519000995
148 WASHER 519653160
150 WASHER 519653171
151 WASHER 519653172
160 CLIP 544311901
161 CLIP 544312001
210 SCREW 519000355
217 SCREW 544313501
250 WASHER 519653388
251 WASHER 519653105
252 FOURCHETTE 1-2 10003048 519653110
253 FOURCHETTE MARCHE ARR 10003044 519653109
285 PALIER DE FOURCHETTE 14952 519653276
286 CHOKE FRICTION BALL 519653194
287 SPRING 519653214
288 AXE 519653281
289 AXE 519653282
290 U DE FOURCHETTE 12935 519653200
291 SHAFT 519653250
292 BEARING 519653189
293 BEARING 519653192
294 JOINT CARTER 12354 519653185
295 ENTRETOISE MARCHE ARRIER 14919 519653148
296 SEALING RING 519653182
297 SEALING RING 519653181
298 CHAIN 519653238
299 PLUG 519653391
300 PINION 519653301
301 PINION 519653299
302 PINION 519653300
303 PINION 544313901
304 SHAFT 544314001
305 JOINT TORIQUE 12316 519653184
306 JOINT TORIQUE 12315 519653183
307 BAGUE FRICTION 12680 519653196
308 DOUBLE AIGUILLES 12660 519653195
309 AXE 519653284
310 AXE 519653283
311 AXE 519653285
312 PLUG 519653197
330 PEN 544314101
331 KEY 519653201
332 CIRCLIP 519653199
333 CIRCLIP 519653198
