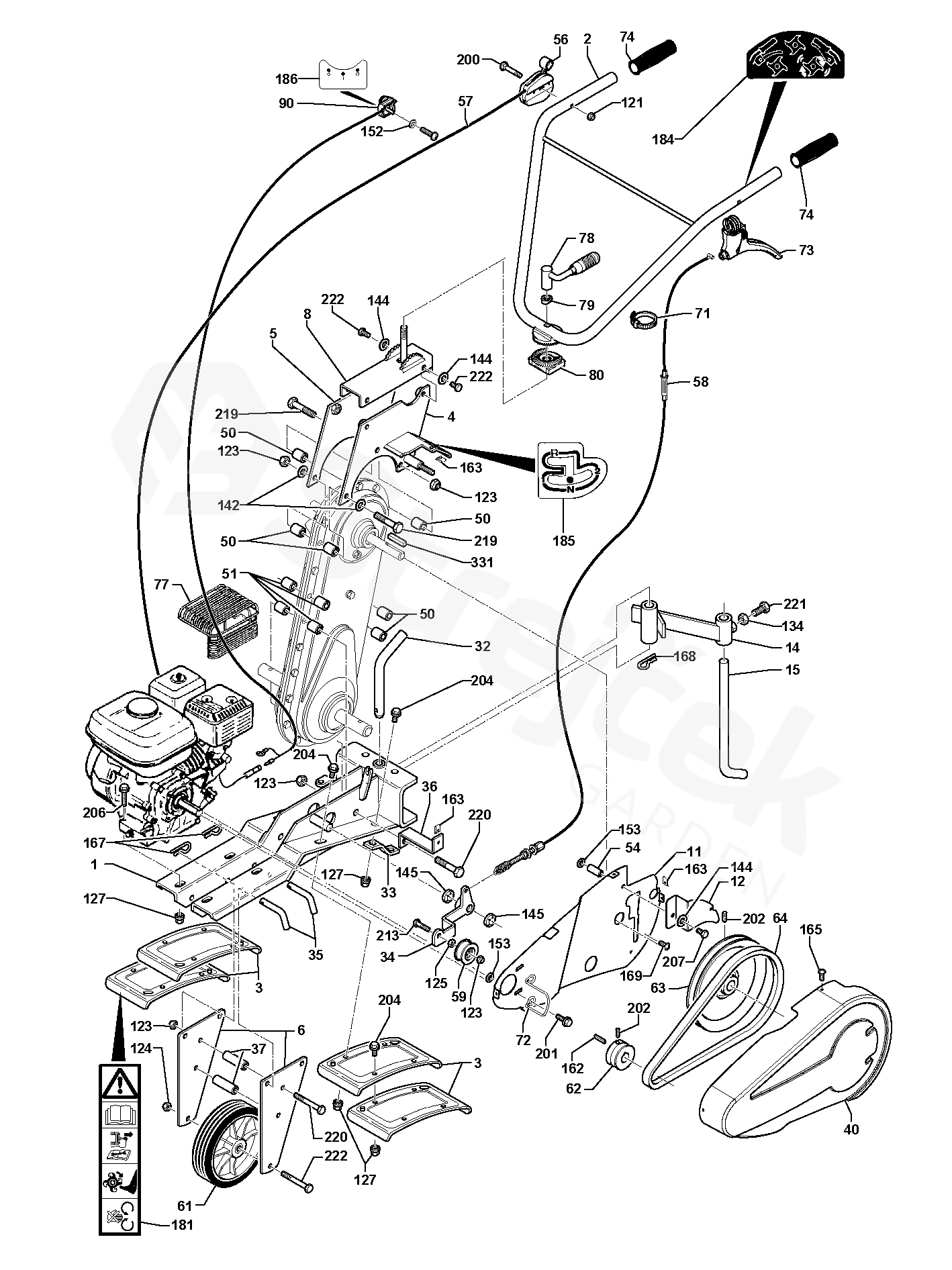

T860 RS T860 RS, T860 HX, 54431420, 2005-12

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For T860 RS, T860 HX, 54431420, 2005-12

1	CHASSIS	544307301
2	HANDLEBAR	544307501
3	PROTECTIVE PLATE	544307701
4	HANDLE SUPPORT	544307801
5	HANDLE SUPPORT	544307901
6	BRACKET	544308001
8	HANDLEBAR	544308301
11	BELT COVER	544309001
12	LEVER	544311601
14	SUPPORT	544309201
15	PEN	544309301
32	PEN	544309501
33	PEN	544309601
34	CLUTCH LEVER	544309701
35	PEN	544309801
36	LUG	544309901
37	SPACER	544310001
40	BELT COVER	544310101
50	ENTRETOISE 16016	519653308
54	SPACER	544310401
56	THROTTLE LEVER	544310701
57	THROTTLE CABLE	544310501
58	CABLE	544310801
59	PULLEY	519653457
61	WHEEL	519653259
62	POULIE MOTEUR 15170	519653290
63	POULIE CARTER 15219	519653292
64	BELT	519653242
71	COLLIER 13249	519653232
72	BELT GUIDE	544311201
73	CLUTCH LEVER	544311301
74	GRIP	544311401
77	GRILL	531009418
78	LEVER	544311501
79	SPACER	519653414
80	FILLER	544311801
90	STOP SWITCH	531008558
121	HEXAGON LOCKING NUT	732261601
123	NUT	519653458
124	SCREW EHHM	725255051
125	NUT	519653456
127	NUT	519653430
134	NUT	519653452
142	HEXAGON NUT	734117201
144	WASHER	544314901
145	PODLOŽKA	735587100
152	WASHER	531008539
153	WASHER	519653097
162	KEY	519653021
163	CLIP	519653425
165	SCREW	519653426
167	PIN RETAINING SCREW	519651220
168	RETAINING RING	519653166
181	DECAL	531008540
184	LABEL	519653085
186	DECAL	519653103
200	SCREW	544313101
201	SCREW	544313201
202	SCREW	519653020
204	BOLT	531008202
206	SCREW	519653413
207	SCREW	531008509
213	SCREW	519653455
219	SCREW	544313601
220	SCREW	519653039
221	SCREW	544313801
331	KEY	519653201
	THROTTLE LEVER	544310601
