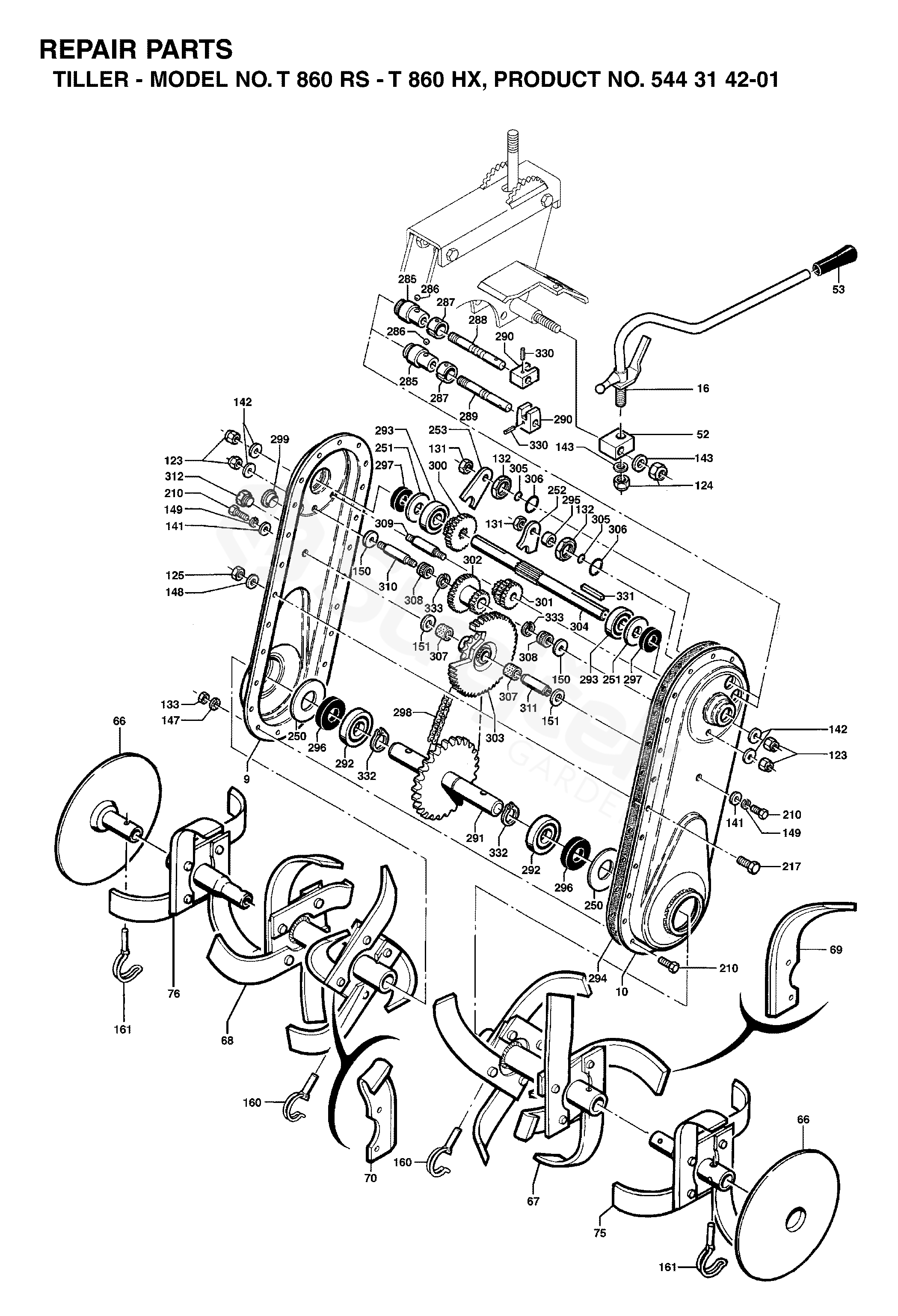

Spare parts - Partlist - T860 RS T860 RS, T860 HX, 544314201, 2006-10 - TINE ASSEMBLY

Everything for your machines

T860 RS T860 RS, T860 HX, 544314201, 2006-10

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For T860 RS, T860 HX, 544314201, 2006-10

1	CHASSIS	544307301
2	HANDLEBAR	544307501
3	PROTECTIVE PLATE	544307701
4	HANDLE SUPPORT	544307801
5	HANDLE SUPPORT	544307901
6	BRACKET	544308001
8	HANDLEBAR	544308301
9	1/2 CARTER DROIT 14003002	519653248
10	1/2 CARTER GAUCHE 14003012	519653249
11	BELT COVER	544309001
12	LEVER	544311601
14	SUPPORT	544309201
15	PEN	544309301
16	LEVER	544309401
32	PEN	544309501
34	CLUTCH LEVER	544309701
35	PEN	544309801
36	LUG	544309901
37	SPACER	544310001
40	BELT COVER	544310101
50	ENTRETOISE 16016	519653308
52	SUPPORT	544310201
53	HANDLE	544310301
54	SPACER	544310401
56	THROTTLE LEVER	544310701
57	THROTTLE CABLE	544310501
58	CABLE	544310801
59	PULLEY	519653457
61	WHEEL	519653259
62	POULIE MOTEUR 15170	519653290
63	POULIE CARTER 15219	519653292
64	BELT	519653242
66	COVER	519653362
67	BLADE	544310901
68	BLADE	544311001
69	BLADE	531008547
70	BLADE	531008548
71	COLLIER 13249	519653232
72	BELT GUIDE	544311201
73	CLUTCH LEVER	544311301
74	GRIP	544311401
75	TINE	531008522
76	TINE	531008523
77	GRILL	531009418
78	LEVER	544311501
79	SPACER	519653414
80	FILLER	544311801
90	STOP SWITCH	531008558
121	HEXAGON LOCKING NUT	732261601
123	NUT	519653458
124	SCREW EHHM	725255051
125	NUT	519653456
126	NUT	519653432
127	NUT	519653430
131	NUT	519653152
132	NUT	519653153
134	NUT	519653452
141	WASHER	519653450
142	HEXAGON NUT	734117201
143	WASHER	519653453
144	WASHER	544314901
145	PODLOŽKA	735587100
147	WASHER	519000995
148	WASHER	519653160
150	WASHER	519653171
151	WASHER	519653172
152	WASHER	531008539
153	WASHER	519653097
160	CLIP	544311901
161	CLIP	544312001
162	KEY	519653021
163	CLIP	519653425
165	SCREW	519653426
166	KEY	519653201
167	PIN RETAINING SCREW	519651220
168	RETAINING RING	519653166
181	DECAL	531008540
184	LABEL	519653085
186	DECAL	519653103
200	SCREW	544313101
201	SCREW	544313201
202	SCREW	519653020
203	SCREW	519653435
204	BOLT	531008202
206	SCREW	519653413
207	SCREW	531008509
210	SCREW	519000355
211	SCREW	544313301
213	SCREW	519653455
216	SCREW	519653131
217	SCREW	544313501
219	SCREW	544313601
220	SCREW	519653039
221	SCREW	544313801
250	WASHER	519653388
251	WASHER	519653105
252	FOURCHETTE 1-2 10003048	519653110
253	FOURCHETTE MARCHE ARR 10003044	519653109
285	PALIER DE FOURCHETTE 14952	519653276
286	CHOKE FRICTION BALL	519653194
287	SPRING	519653214
288	AXE	519653281
289	AXE	519653282
290	U DE FOURCHETTE 12935	519653200
291	SHAFT	519653250
292	BEARING	519653189
293	BEARING	519653192
294	JOINT CARTER 12354	519653185
295	ENTRETOISE MARCHE ARRIER 14919	519653148
296	SEALING RING	519653182
297	SEALING RING	519653181
298	CHAIN	519653238
299	PLUG	519653391
300	PINION	519653301
301	PINION	519653299
302	PINION	519653300
303	PINION	544313901
304	SHAFT	544314001
305	JOINT TORIQUE 12316	519653184
306	JOINT TORIQUE 12315	519653183
307	BAGUE FRICTION 12680	519653196
308	DOUBLE AIGUILLES 12660	519653195
309	AXE	519653284
310	AXE	519653283
311	AXE	519653285
312	PLUG	519653197
330	PEN	544314101
331	KEY	519653201
332	CIRCLIP	519653199
333	CIRCLIP	519653198
519653309	ENTRETOISE 16017	519653309
544309101	BELT COVER	544309101
544310601	THROTTLE LEVER	544310601
544311701	BELT COVER	544311701
