Spare parts > Husqvarna Construction Products > DEMOLITION ROBOTS > DXR140 DXR140, Valid for machine 1 to 254, 2019-06 > TRACK SYSTEM
Back to

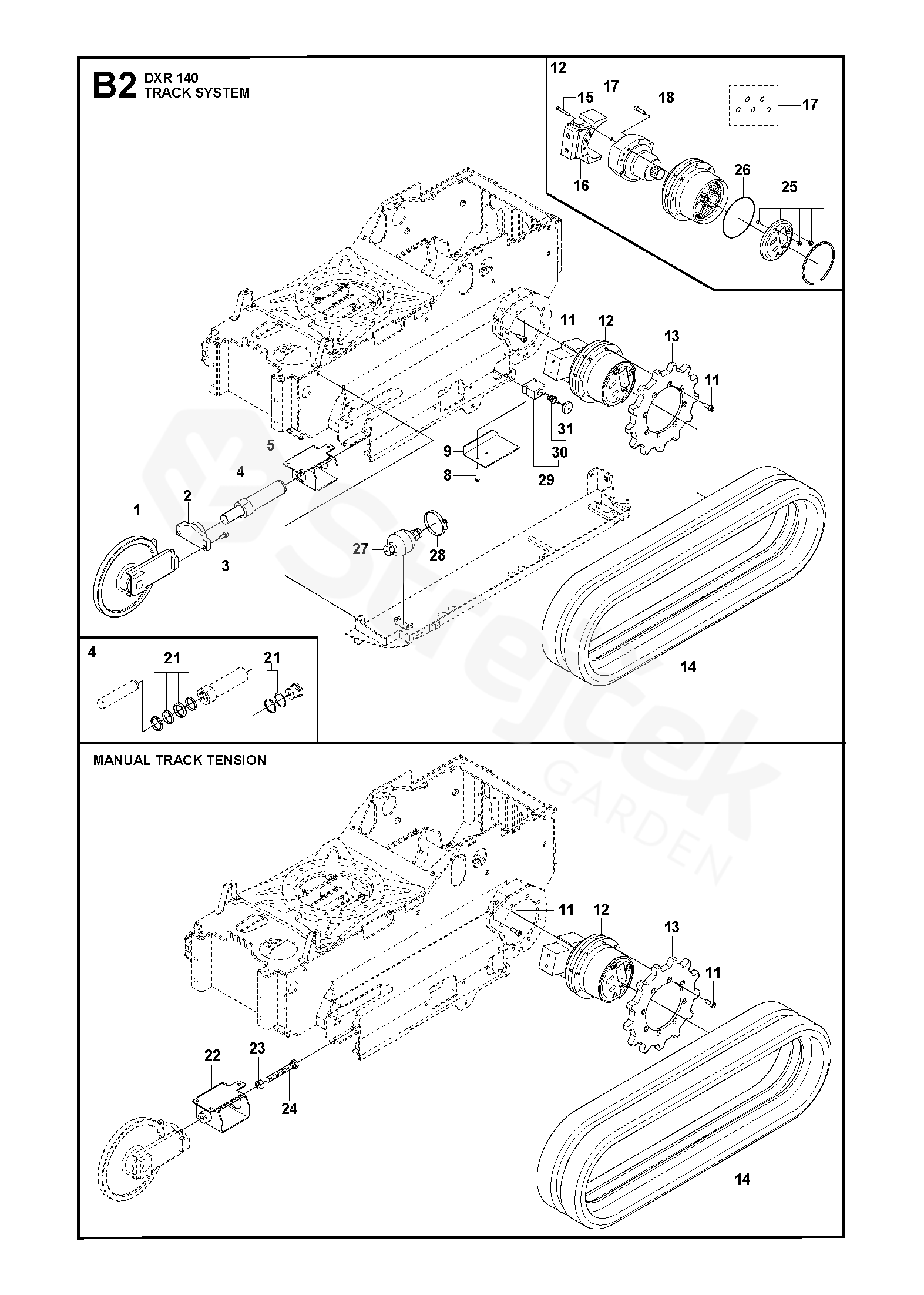

TRACK SYSTEM
DXR140 DXR140, Valid for machine 1 to 254, 2019-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For DXR140, Valid for machine 1 to 254, 2019-06
1 TENSION ROLLER 525800901
2 PLATE 579317701
3 SCREW IHSCM 725549501
4 CYLINDER 505267401
5 TUBE
RH 		575389601
8 SCREW EHHFM 522707001
9 PROTECTION 575391301
11 SCREW IHSCM 501062101
12 DRIVE MOTOR 574701101
13 SPROCKET 525797501
14 RUBBER TRACKS 579328401
15 SCREW IHSCM 725546751
16 VALVE KIT 522964901
17 SEAL 522965001
18 SCREW IHSCM 725545751
21 SEAL 522857601
22 TUBE RH
RH 		574717901
23 NUT 575292901
24 SCREW EHHM 575293101
25 COVER KIT 590143201
26 O-RING 590342101
27 ACCUMULATOR 575595601
28 HOSE CLAMP 575611401
29 CONTROL VALVE 575596601
30 VALVE 515981801
31 KNOB 576385401
