Spare parts > Husqvarna Construction Products > SURFACE PREPARATION EQUIPMENT > PG 280 PG 280, 2018-02 > FRAME
Back to

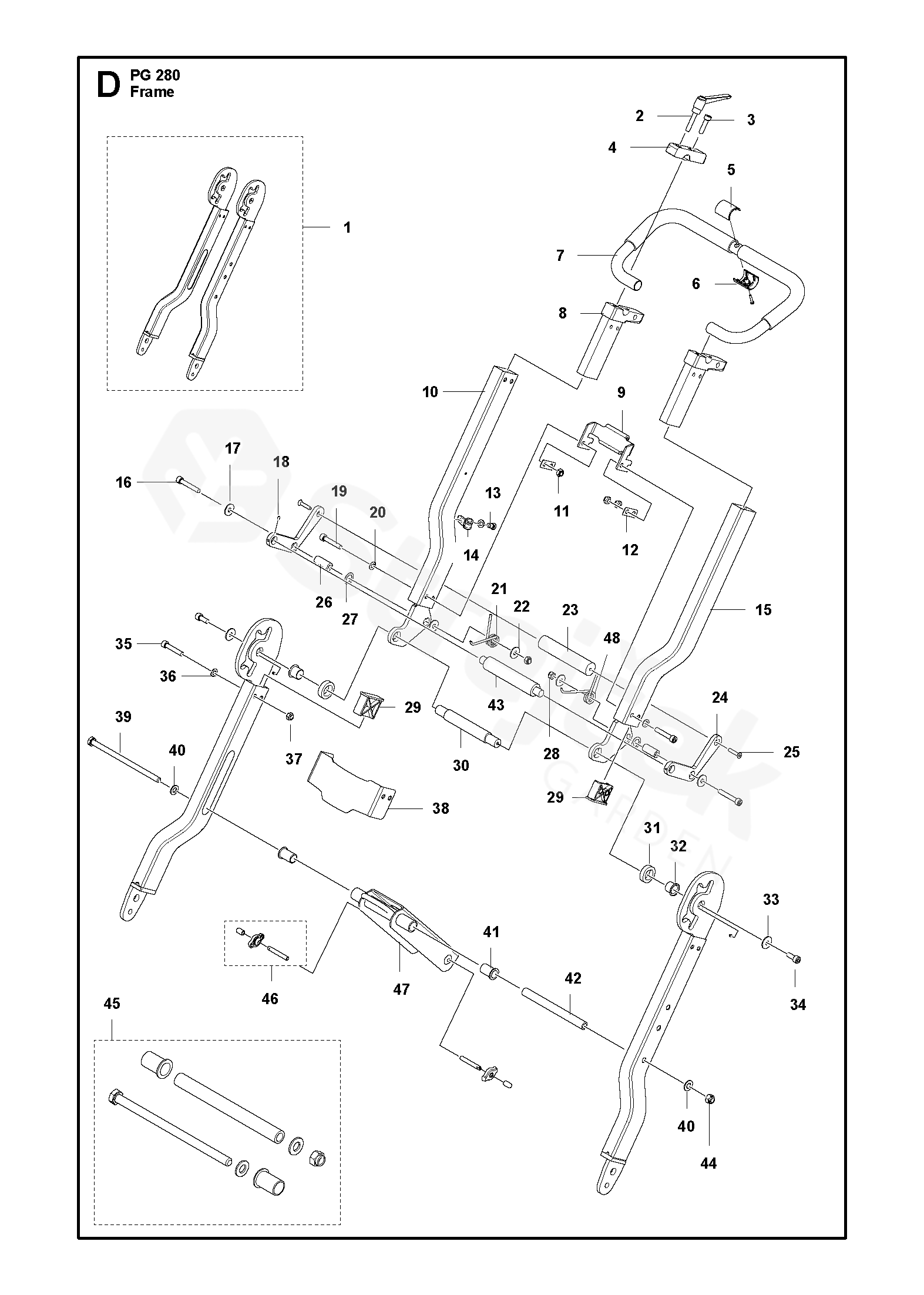

FRAME
PG 280 PG 280, 2018-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PG 280, 2018-02
1 FRAME TUBE 593897101
2 LOCKING HANDLE 585129201
3 SCREW IHSCM 725545521
4 BRACKET 585516601
5 COVER 587158501
6 COVER 587158601
7 HANDLE 585144001
8 BRACKET 589837701
9 BRACKET 585382802
10 FORK 585573507
11 LOCK NUT 732211801
12 WASHER 585383101
13 SCREW IHSCM 725536801
14 CLIP
US 100-120V 		589669103
15 FORK 585573508
16 SCREW IHSCM 725546001
17 PODLOŽKA 734116301
18 SCREW IHSETM 728828501
19 SCREW IHSCM 725546101
20 PODLOŽKA 734116441
21 SPRING 585417301
22 PODLOŽKA 734116541
23 HANDLE 585133702
24 PLATE 585133301
25 SCREW 725637451
26 SLEEVE 585383302
27 WASHER 585416201
28 LOCK NUT 732211801
29 SPACER 585132901
30 TUBE 585133602
31 SPACER 585133501
32 BUSH 585416001
33 PODLOŽKA 734116541
34 LOCK NUT 732211801
35 SCREW IHSCM 725546001
36 PODLOŽKA 734116301
37 HEXAGON LOCKING NUT 732251801
38 BRACKET HDX variant only
HDX variant only 		585383004
39 BOLT 590105001
40 HEXAGON NUT 734117201
41 BUSH 585129101
42 PIPE 590092901
43 ROD 585133802
44 HEXAGON LOCKING NUT 732252001
45 CROSSBAR 593909401
46 WING KNOB 590472201
47 SUPPORT 585141802
48 SPRING 585416101
