Spare parts > Husqvarna Construction Products > LIGHT COMPACTION > LF 75 L/LF 75 LAT LF 75 /LF 75 LAT, 967854901, 967854902, 967896701, 967896702, 2019-06 > ENGINE INSTALLATION
Back to

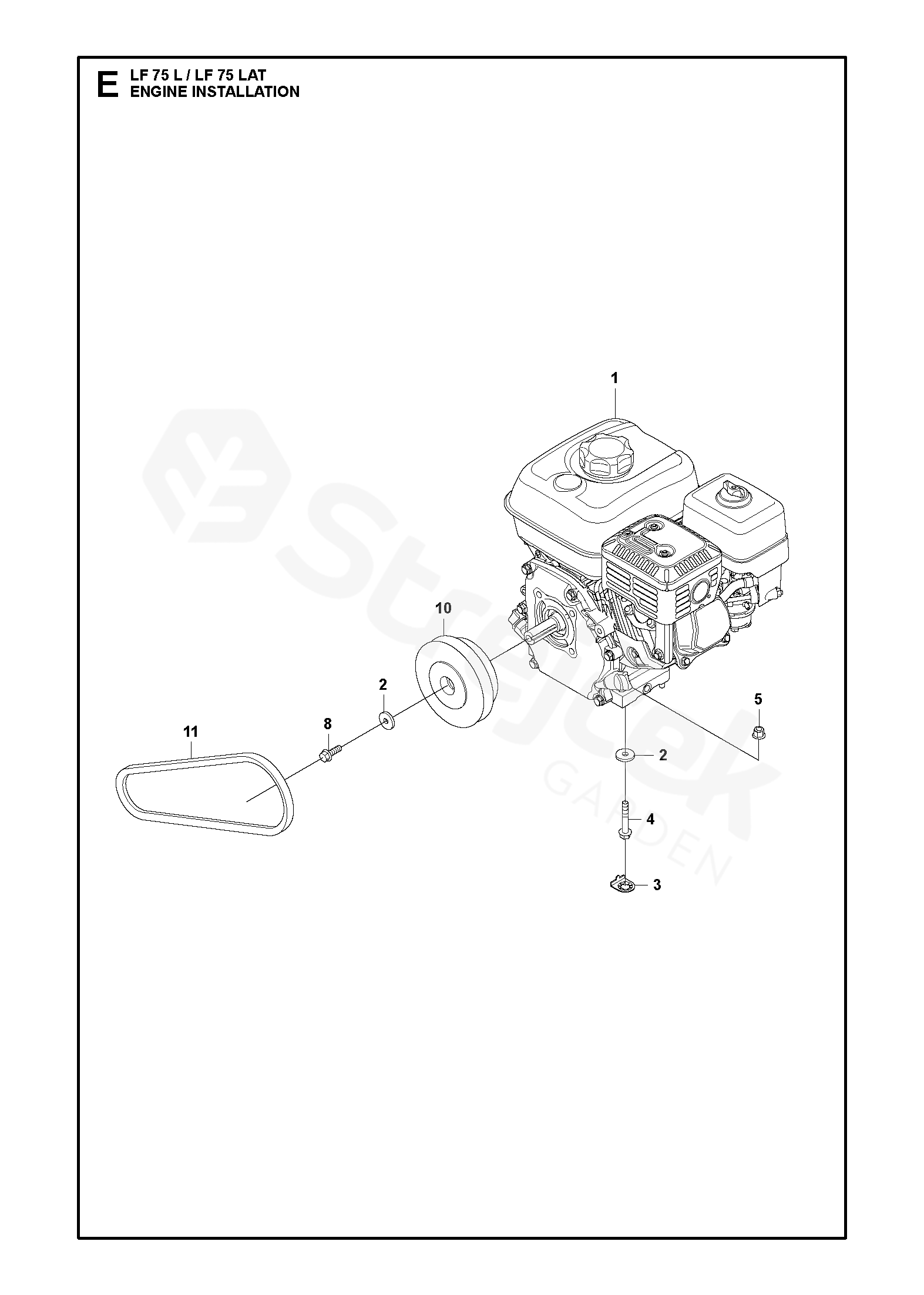

ENGINE INSTALLATION
LF 75 L/LF 75 LAT LF 75 /LF 75 LAT, 967854901, 967854902, 967896701, 967896702, 2019-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LF 75 /LF 75 LAT, 967854901, 967854902, 967896701, 967896702, 2019-06
1 ENGINE 594161101
2 WASHER
M08 8,4x26x4,0 300 HV 		595112901
3 WASHER 594484201
4 SCREW
flange screw M8x50 		594499101
5 LOCK NUT 594123001
8 SCREW
flange screw M8x25 		594120001
10 CENTRIFUGAL CLUTCH 594480101
11 V-BELT 594488801
