Spare parts - Partlist - Autoclip 140 4WD Autoclip 140 4WD (2013) - Electrical Parts

Everything for your machines

Autoclip 140 4WD Autoclip 140 4WD (2013)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Autoclip 140 4WD (2013)

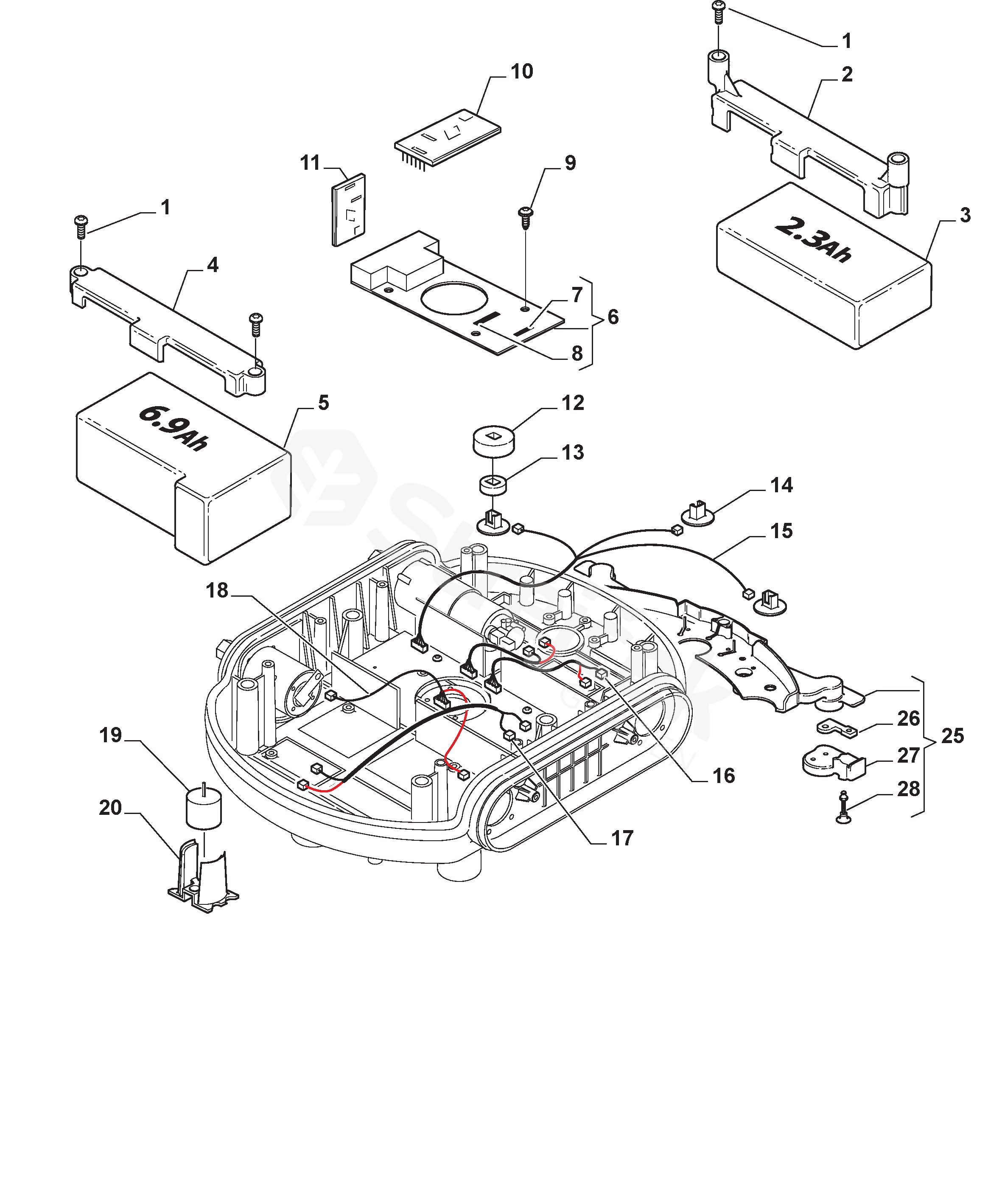

1	Screw	1126-1046-01
4	Battery Clamp Only for 25.2V - 6.9Ah	1126-1045-01
5	Battery 25.2V - 6.9Ah	1126-9138-01
6	Motherboard Autoclip 140	1126-1050-01
7	Fuse Kit 32V 20A	1126-1052-01
8	Fuse Kit 32V 1A	1126-1053-01
9	Screw	1126-1049-01
10	RECEIVER	1126-1072-01
11	Bluetooth receiver for M.Board 6.x - (iOS + Android)	1126-1062-01
12	Gasket Ø 26 x 13	1126-1058-01
13	Gasket Ø 16 x 10	1126-1057-01
14	Grass Sensor	1126-1054-01
15	Wire	1126-1055-01
16	Wheel Motor Wire	1126-1060-01
17	Battery Wire	1126-1059-01
18	Recharging Wire	1126-1061-01
19	Coil	1126-1073-01
20	Coil Support	1126-1074-01
25	Curb Drop-Off Sensor Kit Autoclip 140 Upgrade	1126-1065-01
26	Support	1126-1066-01
27	Cover Left side	1126-1070-01
28	Sensor Kit V2012	1126-1068-01
