Autoclip 328 S Autoclip 328 S (2015)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Autoclip 328 S (2015)

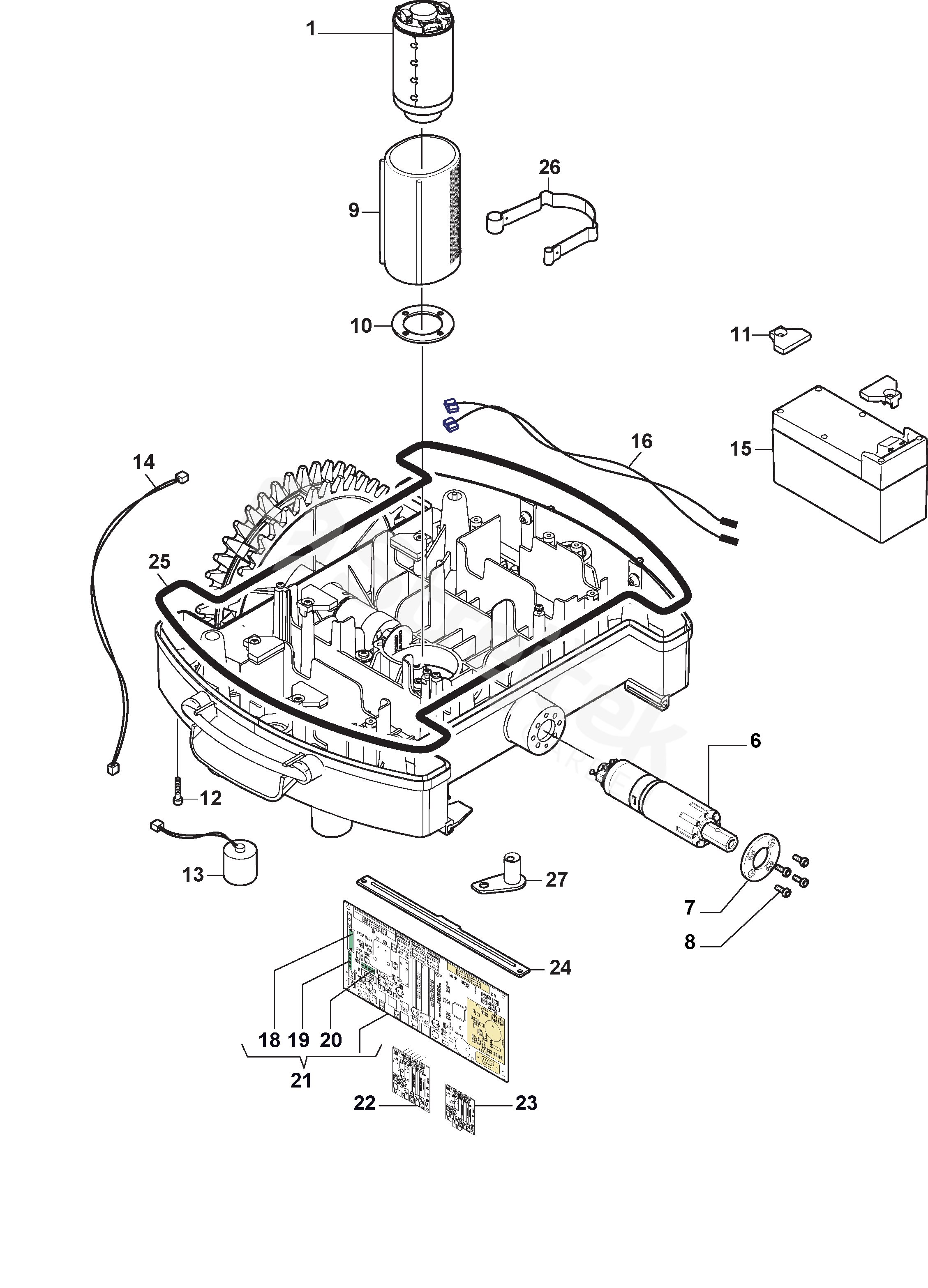

1	Cutting Motor Autoclip 328 S	1126-1152-01
6	Wheel engine Autoclip 328 S	1126-1464-01
7	Wheel Support	1126-1301-02
8	Screw	1126-1449-01
9	Motor Support	1126-1302-01
10	Bracket	1126-1303-01
11	Battery Clamp	1126-1304-01
12	Screw	1126-1305-01
13	Coil	1126-1073-01
14	Cable Cabling Coil-Receiver	112600171/0
15	Battery Lithium (25.9V - 7.5Ah)	1126-9138-01
16	Harness CPU-Battery	112600169/0
18	Fuse Kit F4 - 250V 630mAD	1126-1155-01
19	Fuse Kit F3 - 32V 30A	1126-1156-01
20	Fuse Kit F1 - 32V 1A	1126-1053-01
21	Motherboard	112600147/0
22	RECEIVER	1126-1072-01
23	Bluetooth receiver (iOS + Android)	1126-9156-02
24	Board Block	1126-1240-01
25	Gasket	1126-1312-01
26	Plate	1126-1313-01
27	FIXING PLATE	1126-1314-01
