TF 224 TF 224, 966 78 67-01, 2012-01
>
PRODUCT COMPLETE
Back to
TF 224
TF 224, 966 78 67-01, 2012-01
PRODUCT COMPLETE

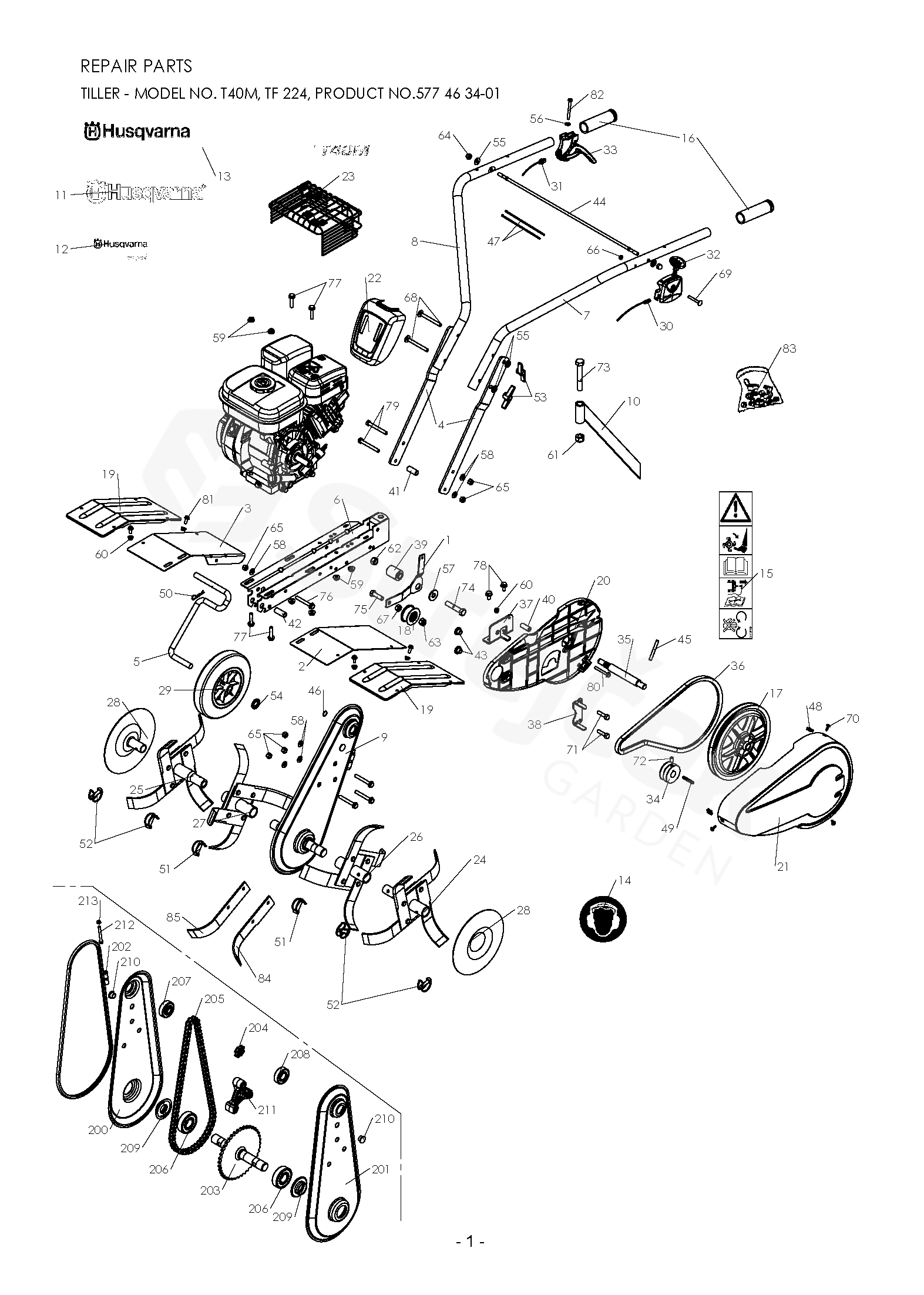

TF 224
TF 224, 966 78 67-01, 2012-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TF 224, 966 78 67-01, 2012-01
1
PLATE
577453301
2
GUARD
577452601
3
GUARD
577452501
4
BRACKET
577448101
5
WHEEL
577448001
6
FRAME
577447101
7
HANDLEBAR LEFT
575359101
8
HANDLEBAR RIGHT
575359001
9
TRANSMISSION
575358701
10
TAIL-SKID
531008206
11
STICKER
580320601
12
STICKER
580477901
13
DECAL
575362001
14
STICKER
577463301
15
DECAL
531008540
16
GRIP
544311401
17
PULLEY
519653060
18
PULLEY
519653457
19
GUARD
577452701
20
COVER
575360301
21
COVER
531008207
22
COVER
580477801
23
GRILLE
575360401
24
TINE
531008214
25
TINE
531008215
26
BLADE
531008211
27
BLADE
531008213
28
COVER
519653362
29
WHEEL
577447801
30
THROTTLE CABLE
GT400
577453101
31
CABLE
577463701
32
THROTTLE LEVER
577453001
33
LEVER
577463601
34
PULLEY
544243901
35
SHAFT
519653065
36
BELT
575360201
37
SUPPORT
575360101
38
BELT GUIDE
531008577
39
SPACER
577453401
40
SPACER
575360601
41
SPACER
575360901
42
SPACER
575361001
43
SPACER
575361101
44
HANDLEBAR
577452401
45
SHAFT
519653067
46
RETAINING RING
519653466
47
COLLAR
544311101
48
CLIP
519653425
49
KEY
519653021
50
PIN RETAINING SCREW
519651220
51
CLIP
577453601
52
CLIP
577453501
53
WING NUT
531008462
54
WASHER
577463101
55
WASHER
544314901
56
WASHER
531009403
57
WASHER
577453901
58
WASHER
544208101
59
NUT
519653430
60
NUT
519653432
61
NUT
531008578
62
ECROU DE FREIN
752255051
63
NUT
519653458
64
CAP NUT
577489101
65
NUT
544207901
66
HEXAGON LOCKING NUT
732261601
67
NUT
519653456
68
SCREW
575361301
69
SCREW
577453801
70
SCREW
519653426
71
SCREW
531008586
72
SCREW
728692300
73
BOLT
531008220
74
SCREW
505026601
75
SCREW
519653455
76
BOLT
573943101
77
SCREW
544207301
78
BOLT
531008202
79
SCREW
575361701
80
SCREW
577453701
81
SCREW
519653435
82
SCREW
519653113
83
BAG
577463201
84
BLADE
519653447
85
BLADE
519653448
200
HOUSING
519653041
201
HOUSING
519653042
202
RING
519653043
203
ŘETĚZKA
519653007
204
PINION
519653057
205
CHAIN
575362301
206
BEARING
519653053
207
RING
531008546
208
BALL
505544001
209
RING
531008576
210
PLUG
519653391
211
ROZPĚRKA
519653006
212
SCREW
501963801
213
HEXAGON LOCKING NUT
732261601
