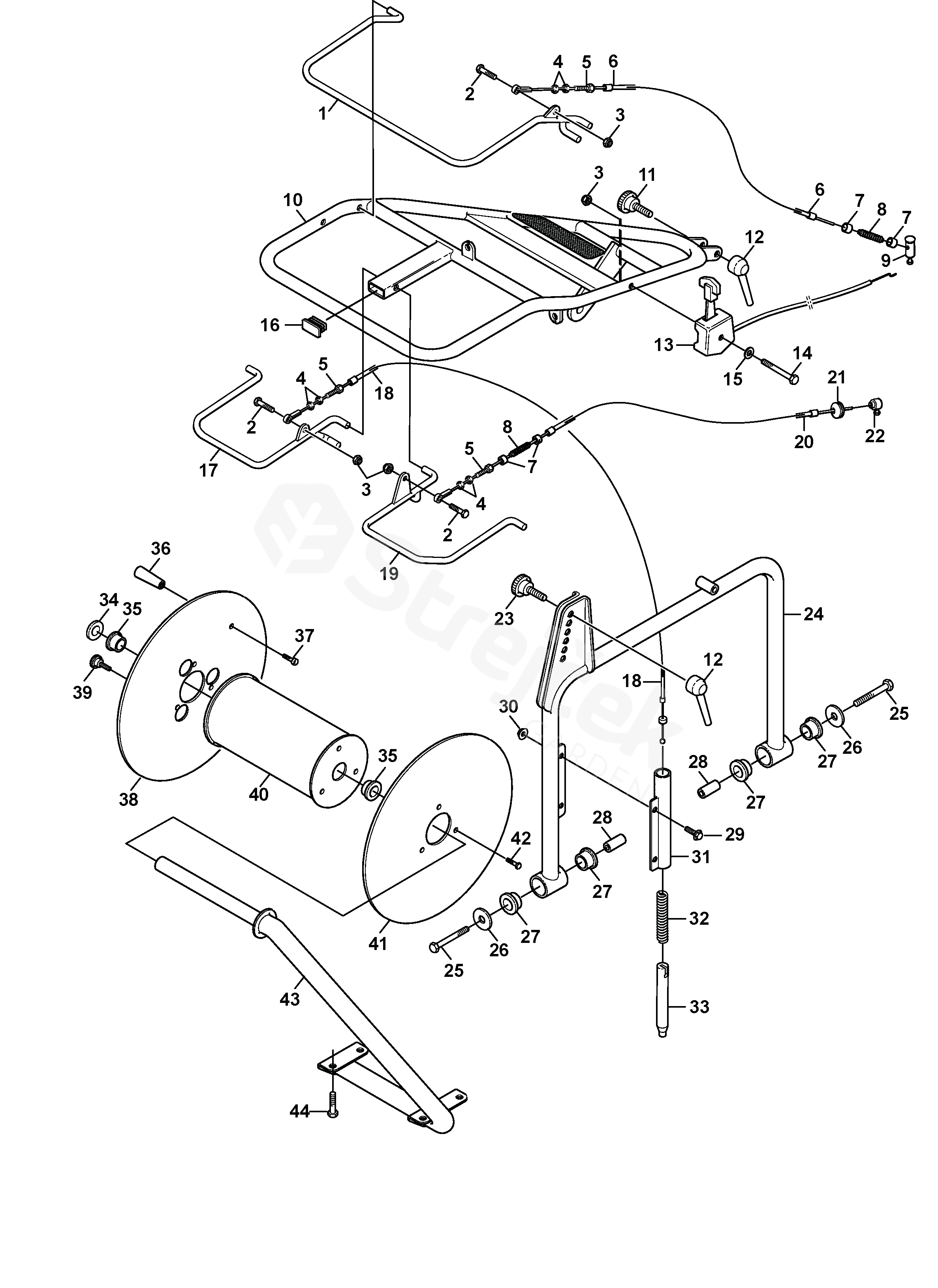

Cable Layer NT 60 Cable Layer NT 60 (2017)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Cable Layer NT 60 (2017)

1	Lever	1126-8092-01
2	Screw	9997-0620-16
3	Lock Nut	9747-0631-02
4	Nut	9799-0631-22
5	Register	1126-8060-01
6	Cable	1126-8085-01
7	Bushing	1126-8062-01
8	Spring	1126-8061-01
9	Clamp	1126-8102-01
10	Handlebar-Upper	1126-8076-01
11	Knob	1126-8096-01
12	Handle	1126-8095-01
13	Throttle Kpl	1126-8042-01
14	Screw	9997-0640-12
15	Washer	9699-0060-02
16	Cap	1126-8097-01
17	Handle-Rh	1126-8093-01
18	Cable	1126-8087-01
19	Lever-Lh	1126-8094-01
20	Cable	1126-8086-01
21	Rubber Bush	1126-8040-01
22	Clamp	1126-8066-01
23	Knob	1126-8039-01
24	Handlebar-Lower	1126-8077-01
25	Screw	9997-0850-12
26	Washer	9699-0056-02
27	Bearing	1126-8045-01
28	Bushing	1126-8101-01
29	Screw	112791011/0
30	Nut	9739-0631-22
31	Support	1126-8075-01
32	Spring	1126-8047-01
33	Shaft	1126-8046-01
34	Locking Cap	1126-8099-01
35	Bushing	1126-8073-01
36	Handle	1126-8098-01
37	Screw	9997-0820-16
38	Plate	1126-8072-01
39	Knob	1126-8100-01
40	Reel	1126-8083-01
41	Plate	1126-8070-01
42	Screw	9997-0516-16
43	Cable Bracket	1126-8082-01
