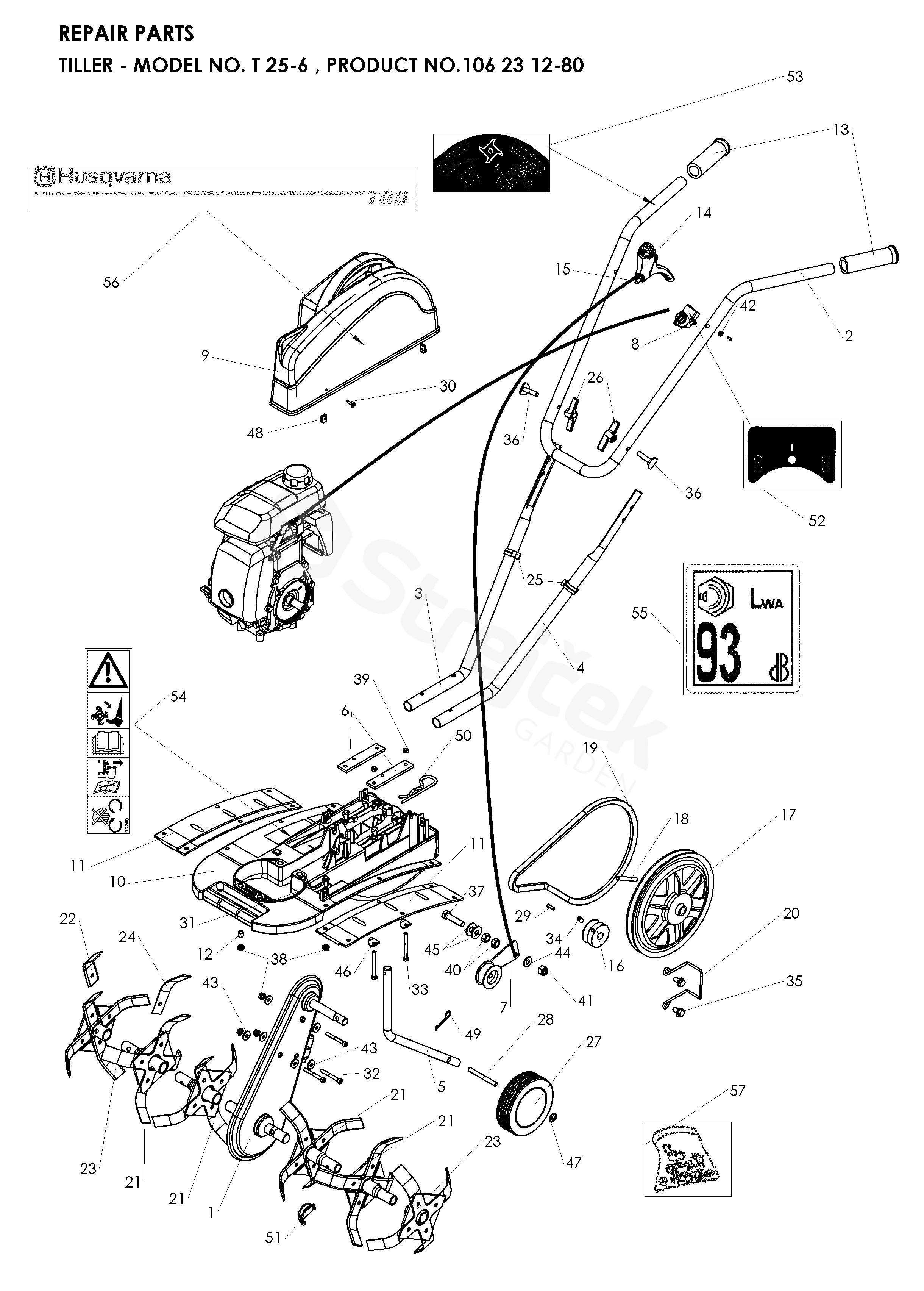

T25 T25, 967802517, 2009-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For T25, 967802517, 2009-01

1	GEARBOX	531008431
2	HANDLE	531008432
3	HANDLE	531008433
4	HANDLE	531008434
5	TAIL-SKID	531008437
6	HOLDER	531008440
7	LEVER	531008441
8	STOP SWITCH	531008558
9	COVER	531008444
10	CHASSIS	531008445
11	PLATE	531008446
12	SPACER	531008453
13	GRIP	544206601
14	LEVER	501963401
15	CABLE	501963501
16	PULLEY	531008456
17	PULLEY	519653060
18	SHAFT	519653067
19	BELT	531008457
20	BELT GUIDE	531008461
21	BLADE	531008458
22	BLADE	531008459
23	BLADE	531008460
24	BLADE	531008563
25	HOLDER	519006417
26	WING NUT	531008462
27	WHEEL	531008569
28	SHAFT	531008562
29	PIN RETAINING SCREW	531008395
30	SCREW	519653426
31	SCREW	519653435
32	SCREW	519653010
33	SCREW	519653113
34	SCREW	728692300
35	BOLT	531008202
36	SCREW	531008473
37	SCREW	531008470
38	NUT	519653432
39	HEXAGON LOCKING NUT	732261601
40	NUT	519653456
41	NUT	519653458
42	WASHER	531008539
43	WASHER	531008390
44	HEXAGON NUT	734117201
45	WASHER	531008466
46	WASHER	531008465
47	WASHER	519002860
48	CLIP	519653425
49	PIN RETAINING SCREW	519651220
50	PIN RETAINING SCREW	531008467
51	PIN RETAINING SCREW	519653360
52	LABEL	501963701
53	LABEL	519653085
54	DECAL	531008540
55	LABEL	501962501
56	LABEL	531009408
57	SCREW KIT	501963601
