Spare parts > STIGA > Lawn Mower > COMBI 43 SQ DAE COMBI 43 SQ DAE (2019) [2L0433908/ST1] > Height Adjusting
Back to

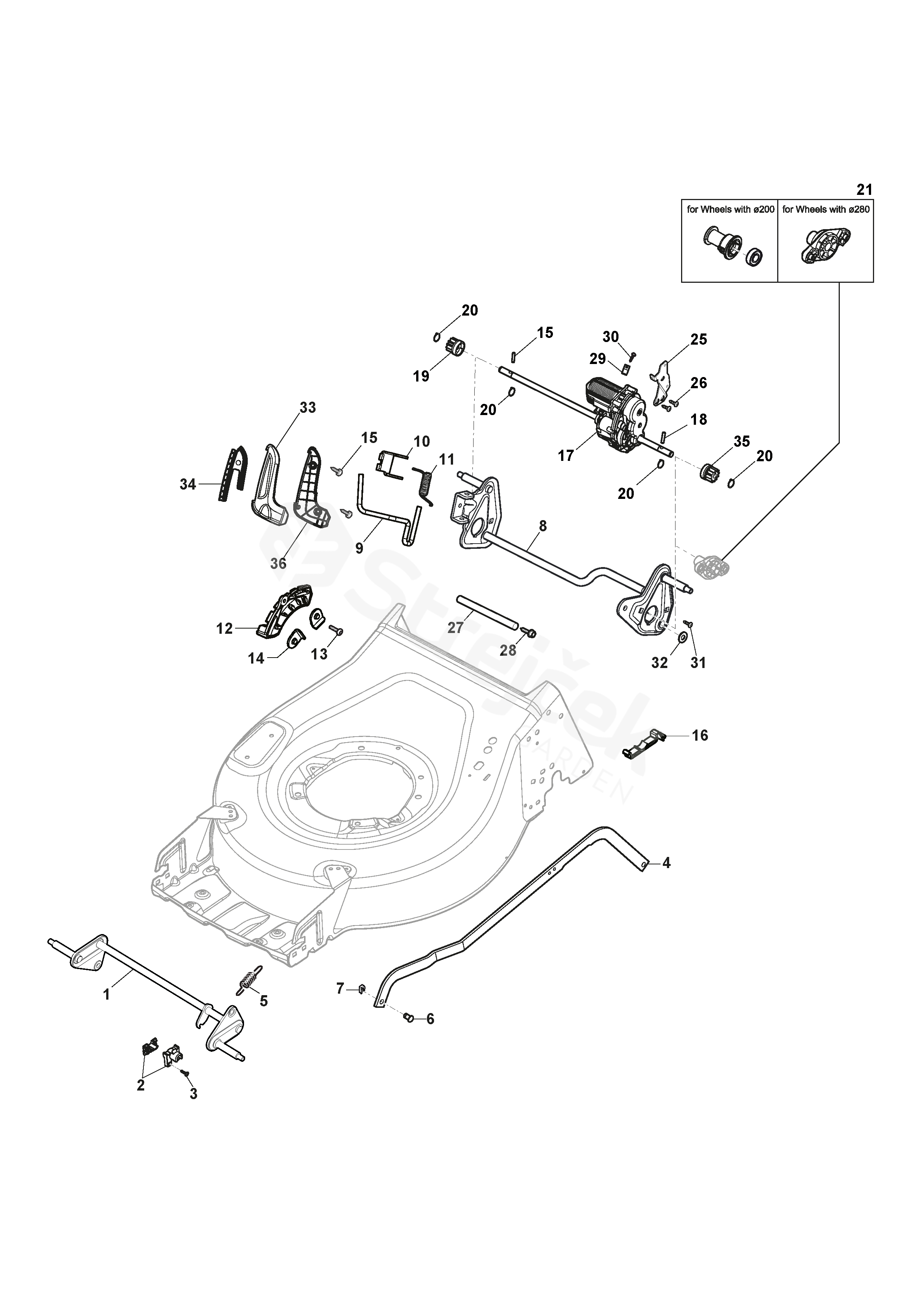

Height Adjusting
COMBI 43 SQ DAE COMBI 43 SQ DAE (2019) [2L0433908/ST1]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COMBI 43 SQ DAE (2019) [2L0433908/ST1]
1 Axle, Front Wheels 381302937/0
2 Support 322785305/1
4 Rod, Height Adjustment 322869731/1
5 Spring 122450494/0
6 Pin 122519823/0
7 Plate 112436051/0
8 Rear Wheel Axle 381302851/0
9 Lever, Height Adjustment 322321553/0
10 Plate 322557179/0
11 Spring 122446198/1
12 Sector, Height Adjustment 322735608/0
13 Screw 112727802/0
14 Plate 322545232/0
15 Screw 112728696/0
16 Support 322785500/0
17 Gear Box
GT-ME 512 36V 		181003129/0
18 Elastic Pin 122753003/1
19 Right Pinion 122570110/1
20 Seeger 112608600/0
21 Bushing 381001133/0
25 Bracket 322778523/1
26 Screw 112728697/0
27 Reinforcement Rod 322608565/0
28 Screw 112735120/0
29 Conduit Clip 118390022/0
30 Screw 112728210/0
32 Washer
Only for Rear Wheels ø280 		112521371/0
33 Upper Handgrip
Grey NCS S8000-N 		322394552/0
34 Handgrip 322394551/0
35 Left pinion 122570120/1
36 Lower Handgrip
Grey NCS S8000-N 		322394560/0
