STIGA
>
Lawn Mower
>
COMBI 48 SQ DAE COMBI 48 SQ DAE (2020) [2L0483908/ST1]
>
Height Adjusting
Back to
COMBI 48 SQ DAE
COMBI 48 SQ DAE (2020) [2L0483908/ST1]

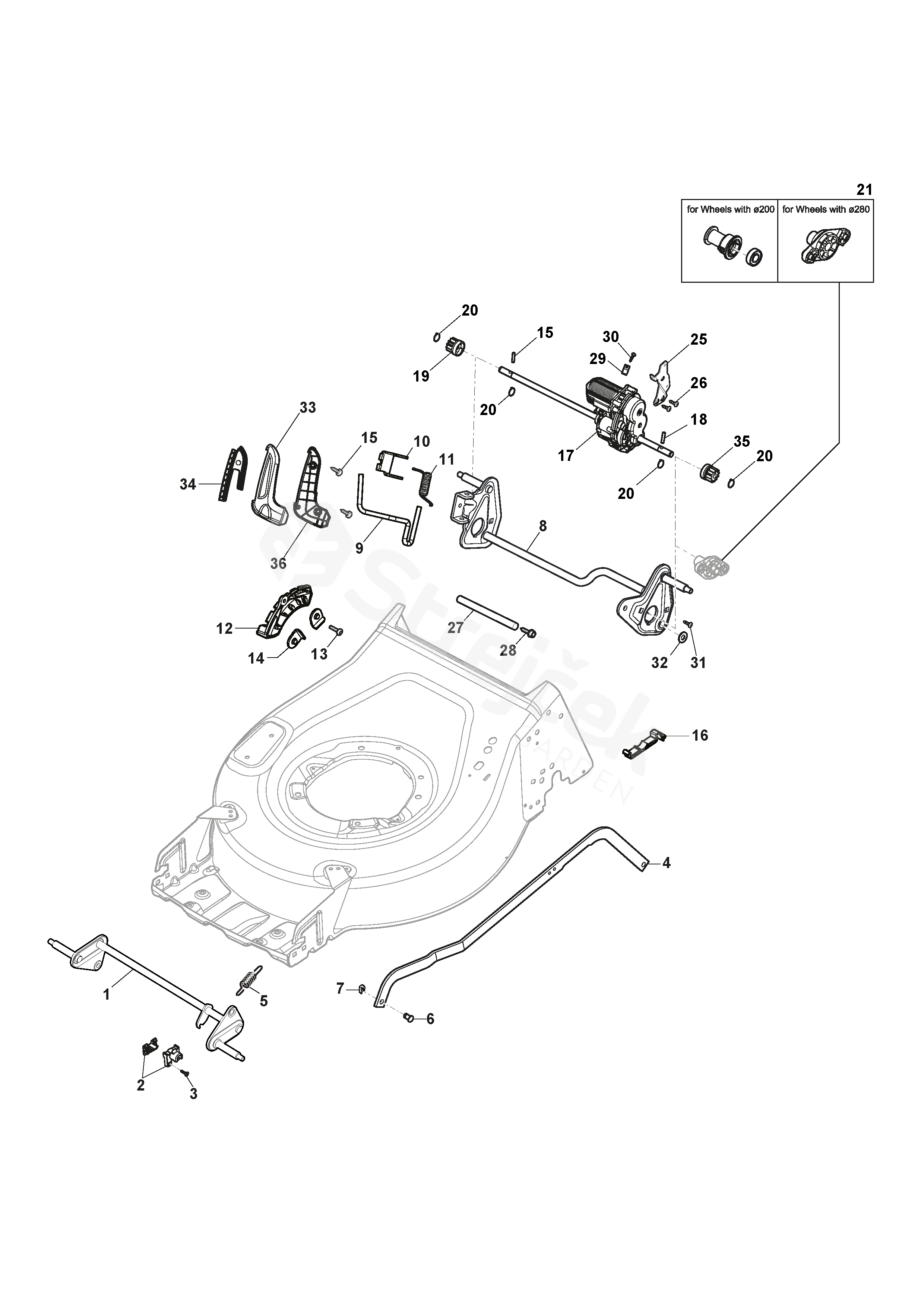

Height Adjusting
COMBI 48 SQ DAE
COMBI 48 SQ DAE (2020) [2L0483908/ST1]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
COMBI 48 SQ DAE (2020) [2L0483908/ST1]
1
Axle, Front Wheels
381302935/1
2
Support
322785305/1
4
Rod, Height Adjustment
322869737/0
5
Spring
122450494/0
6
Pin
122519823/0
7
Benzing Ring
112000930/0
8
Rear Wheel Axle
381302849/0
9
Lever, Height Adjustment
322321555/2
10
Plate
322557181/0
11
Spring
122446198/1
12
Sector, Height Adjustment
322735608/0
13
Screw
112727802/0
14
Plate
322545232/1
15
Screw
112728696/0
16
Support
322785500/0
17
Gear Box
GT-ME 512 36V
181003129/0
18
Elastic Pin
122753003/1
19
Right Pinion
122570133/0
20
Seeger
112608600/0
21
Bushing
322042067/0
25
Bracket
322778523/1
26
Screw
112728697/0
27
Reinforcement Rod
322608565/0
28
Screw
112735120/0
29
Conduit Clip
118390022/0
30
Screw
112728210/0
32
Washer
Only for Rear Wheels ø280
112521371/0
33
Upper Handgrip
Grey NCS S8000-N
322394552/0
34
Handgrip
322394551/0
35
Left pinion
122570134/0
36
Lower Handgrip
Grey NCS S8000-N
322394560/0
