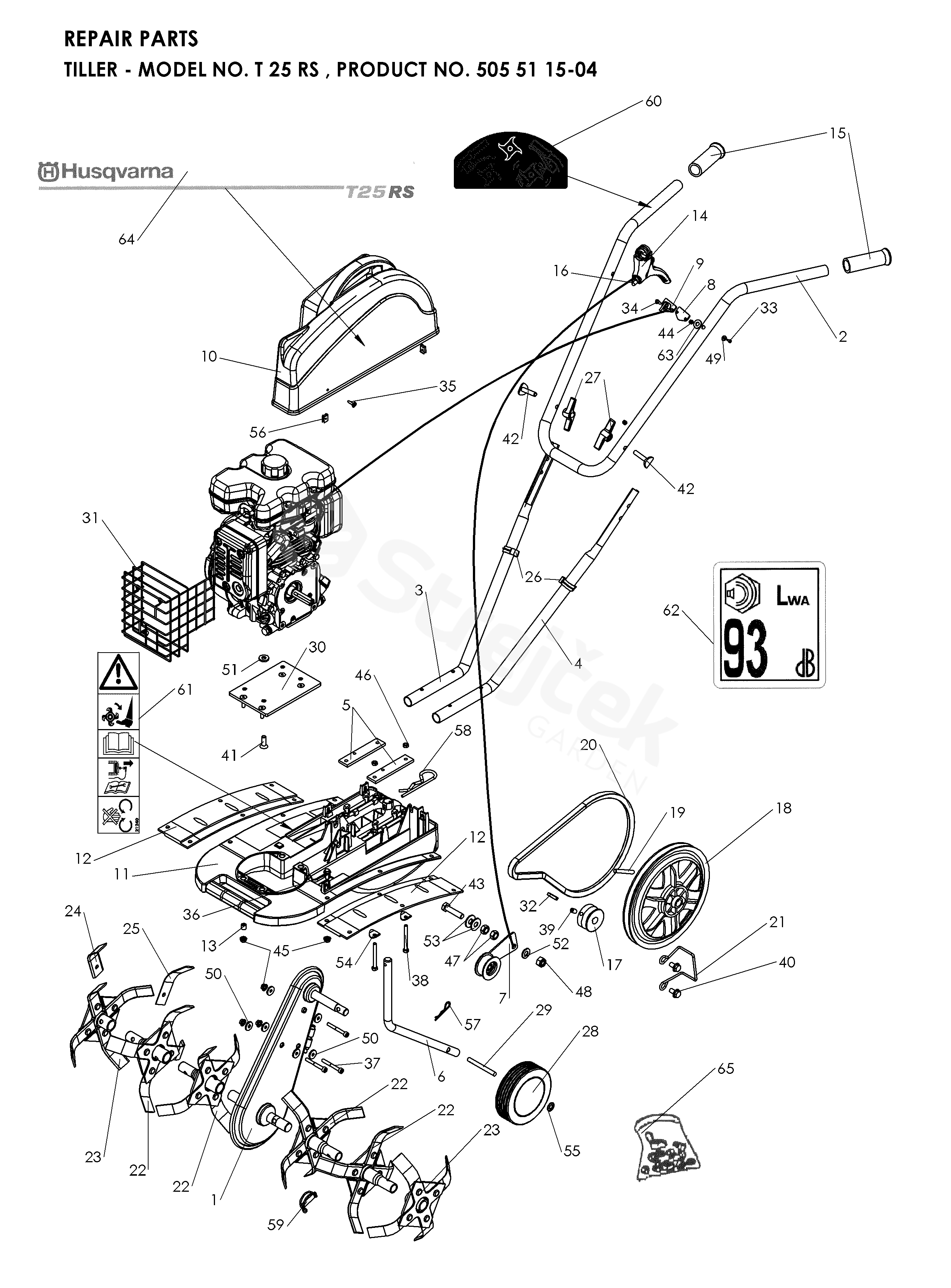

T25 RS T25 RS, 966840401, 2008-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For T25 RS, 966840401, 2008-02

1	GEARBOX	531008431
2	HANDLE	531008432
3	HANDLE	531008433
4	HANDLE	531008434
5	HOLDER	531008440
6	TAIL-SKID	531008437
7	LEVER	531008441
8	SUPPORT	544203901
9	SWITCH	505027201
10	COVER	531008444
11	CHASSIS	531008445
12	PLATE	531008446
13	SPACER	531008453
14	LEVER	501963401
15	GRIP	544206601
16	CABLE	501963501
17	PULLEY	531008456
18	PULLEY	519653060
19	SHAFT	519653067
20	BELT	505033801
21	BELT GUIDE	505033901
22	BLADE	531008458
23	BLADE	531008460
24	BLADE	531008459
25	BLADE	531008563
26	HOLDER	519006417
27	WING NUT	531008462
28	WHEEL	531008569
29	SHAFT	531008562
30	ENGINE PLATE	505034001
31	GRILLE	505034101
32	PINION	505543701
33	SCREW	501991401
34	SCREW	519653426
35	SCREW	519653426
36	SCREW	519653435
37	SCREW	519653010
38	SCREW	519653113
39	SCREW	728692300
40	BOLT	531008202
41	SCREW	505034201
42	SCREW	531008473
43	SCREW	531008470
44	NUT	544207901
45	NUT	519653432
46	HEXAGON LOCKING NUT	732261601
47	NUT	519653456
48	NUT	519653458
49	WASHER	531008539
50	WASHER	531008390
51	WASHER	519653097
52	HEXAGON NUT	734117201
53	WASHER	531008466
54	WASHER	531008465
55	WASHER	519002860
56	CLIP	519653425
57	PIN RETAINING SCREW	519651220
58	PIN RETAINING SCREW	531008467
59	PIN RETAINING SCREW	519653360
60	LABEL	519653085
61	DECAL	531008540
62	LABEL	501962501
63	WASHER	544208101
64	LABEL	505034301
65	SCREW KIT	501963601
