Spare parts > STIGA > Lawn Mower > SLM 536 AE SLM 536 AE (2020) [294346068/ST1] > Body Work
Back to

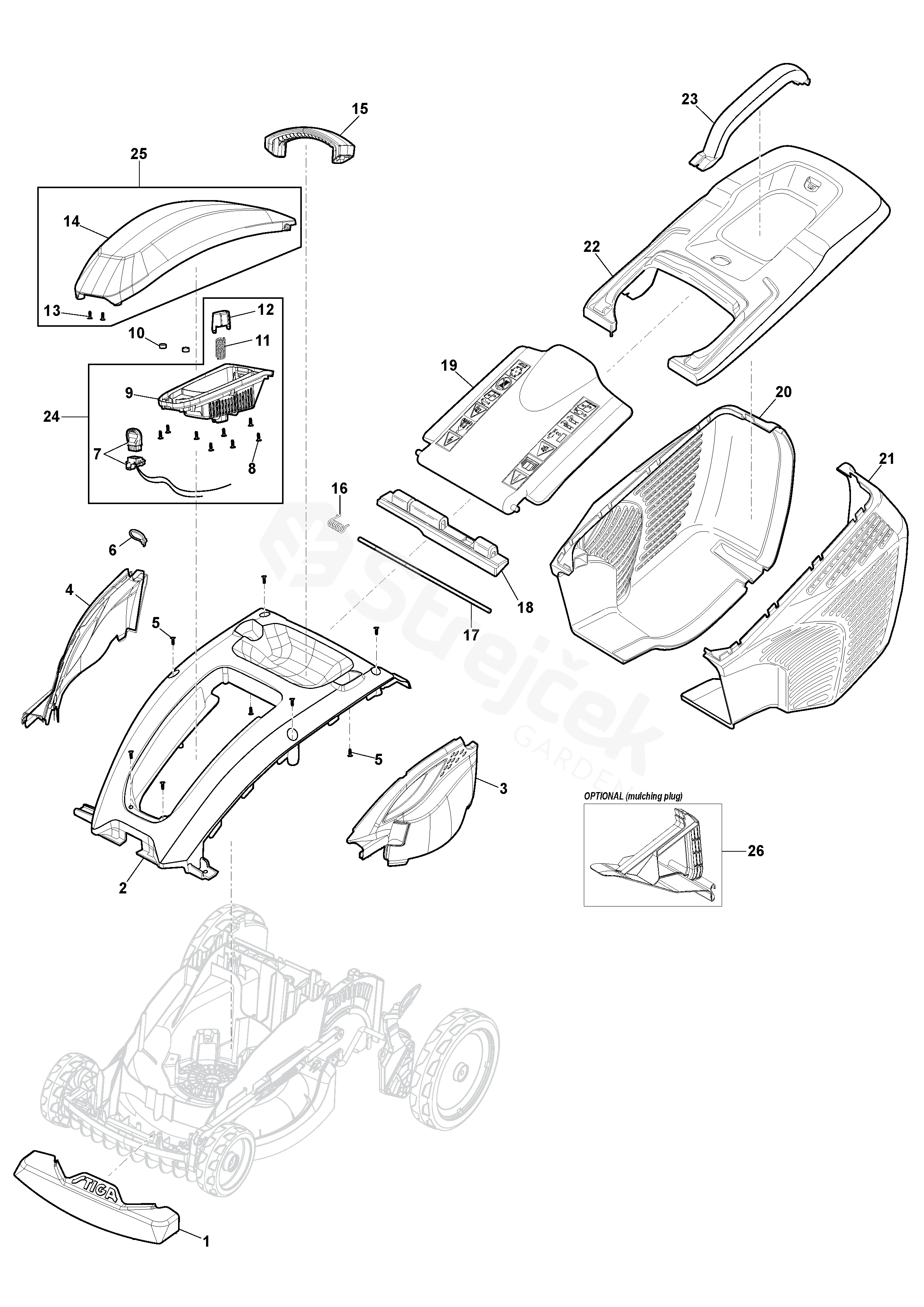

Body Work
SLM 536 AE SLM 536 AE (2020) [294346068/ST1]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SLM 536 AE (2020) [294346068/ST1]
1 Front Cover, Grey 322226305/0
2 Cover, Yellow 322055651/0
3 Left Side Cover, Grey 322110830/0
4 Right Side Cover, Grey 322110829/0
5 Screw 112728714/0
6 Fastpoint Clamp 133320022/0
7 Safety Key Set 118210030/0
8 Screw 112728696/0
9 Battery Housing 322722863/0
10 Magnet 118551525/0
11 Spring 1134-3262-01
12 Battery Pack Button 322602041/0
13 Screw 112728696/0
14 Battery Cover 322055650/0
15 Handle 322393719/0
16 Spring 122450250/0
17 Pin 122512603/0
18 Support 322600287/0
19 Ejection Guard 322600299/0
20 Grass-Box, R Lower 322486392/0
21 Grass-Box, L Lower 322486391/0
22 Grass-Box, Upper 322486360/0
23 Handle 322393718/0
24 Battery Housing Assy 381002081/0
25 Battery Cover Assy 381002080/0
26 Mulching Plug
Optional 		322140241/0
