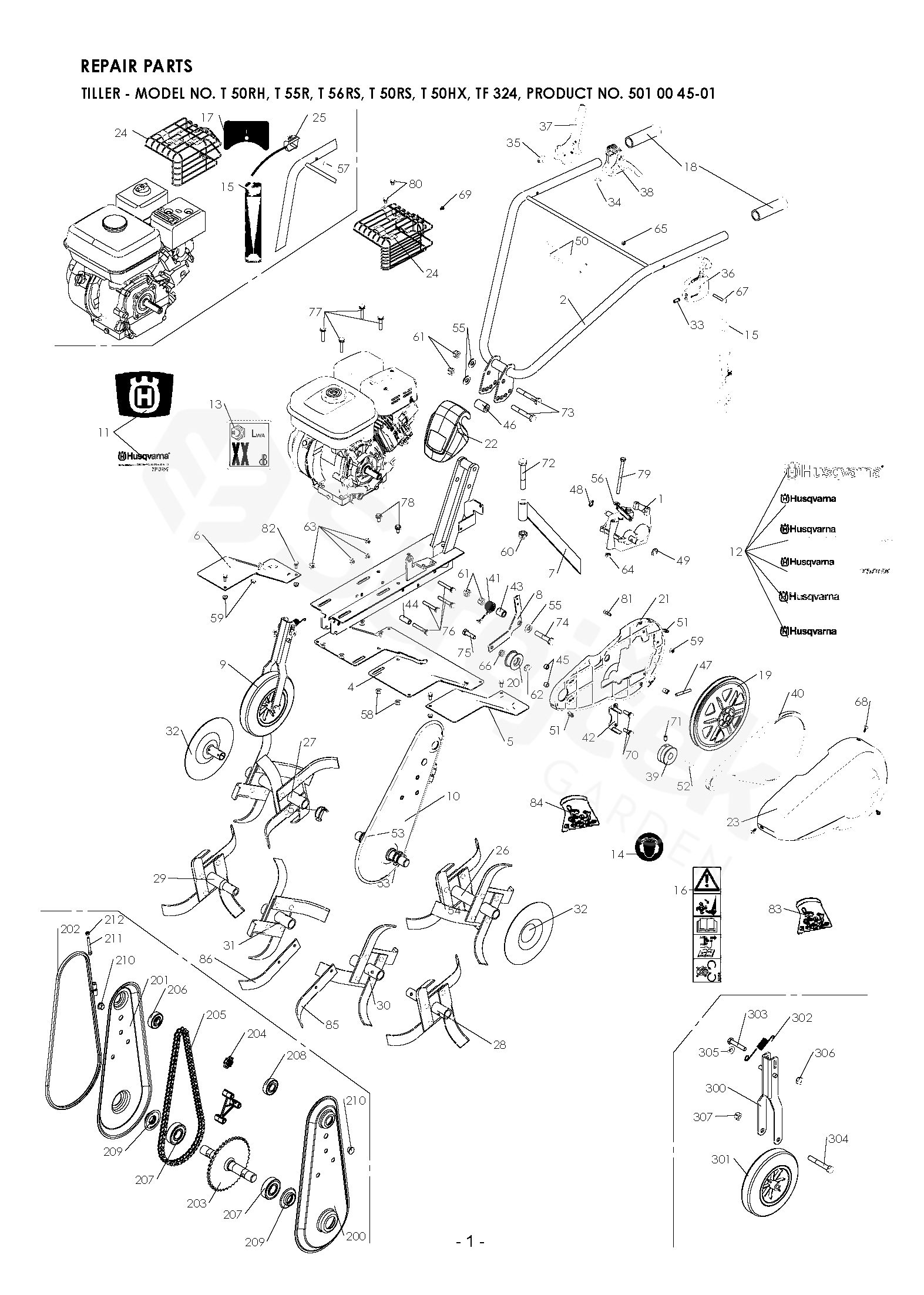

Spare parts - Partlist - TF 324 TF 324, 967258801, 2014-01 - PRODUCT COMPLETE

Everything for your machines

TF 324 TF 324, 967258801, 2014-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TF 324, 967258801, 2014-01

1	GEARBOX	585365001
2	HANDLEBAR	501004801
3	CHASSIS	501004901
4	PROTECTOR	531008203
5	PROTECTOR	531008205
6	PROTECTOR	531008204
7	TAIL-SKID	531008206
8	LEVER	519653407
9	WHEEL	576136601
10	TRANSMISSION	575358701
11	LABEL	504052801
12	DECAL	531008254
13	LABEL	501962501
14	STICKER	577463301
15	DECAL	531008251
16	DECAL	531008540
17	LABEL	501963701
18	GRIP	544311401
19	PULLEY	519653060
20	PULLEY	519653457
21	PLATE	531008208
22	COVER	501004601
23	COVER	531008207
24	GRILL	531009418
25	STOP SWITCH	531008558
26	HROT LEFT	519653028
27	HROT RIGHT	519653029
28	TINE	531008214
29	TINE	531008215
30	BLADE	531008211
31	BLADE	531008213
32	COVER	519653362
33	THROTTLE CABLE	577525001
34	CABLE	577547401
35	HANDLEBAR	580317501
36	THROTTLE LEVER	577453001
37	LEVER	580317201
38	LEVER	577547801
39	PULLEY	544243901
40	BELT	575360201
41	SPRING	519653090
42	BELT GUIDE	531008577
43	SPACER	575360501
44	SPACER	575361001
45	SPACER	531008216
46	SPACER	576145301
47	SHAFT	519653067
48	CIRCLIP	585365201
49	RETAINER RING	580314201
50	COLLAR	544311101
51	CLIP	519653425
52	KEY	519653021
53	CLIP	577453601
54	CLIP	577453501
55	WASHER	519653453
56	WASHER	544208101
57	WASHER	531008539
58	NUT	519653430
59	NUT	519653432
60	NUT	531008578
61	ECROU DE FREIN	752255051
62	NUT	519653458
63	NUT	586721001
64	NUT	544207901
65	HEXAGON LOCKING NUT	732261601
66	NUT	519653456
67	SCREW	577453801
68	SCREW	519653426
69	SCREW	576145201
70	BOLT	573942501
71	SCREW	728692300
72	BOLT	531008220
73	SCREW	519653131
74	SCREW	575361801
75	SCREW	519653455
76	SCREW	575361601
77	SCREW	519653413
78	BOLT	531008202
79	SCREW	519653045
80	SCREW	575361501
81	SCREW	576145401
82	SCREW	519653435
83	SCREW KIT	510372101
84	SCREW KIT	510372101
85	BLADE	519653447
86	BLADE	519653448
200	HOUSING	519653042
201	HOUSING	519653041
202	RING	519653043
203	ŘETĚZKA	519653007
204	PINION	519653057
205	CHAIN	575362301
206	RING	531008546
207	BEARING	519653053
208	BALL	505544001
209	RING	531008576
210	PLUG	519653391
211	SCREW	501963801
212	HEXAGON LOCKING NUT	732261601
213	FLANGE	577490401
214	FLANGE	577490501
215	SPACER	585365501
300	SUPPORT	519653460
301	WHEEL	519653259
302	PRUŽINA	519650260
303	SCREW	519653046
304	SCREW	519653131
305	WASHER	519653462
306	NUT	519653458
307	ECROU DE FREIN	752255051
